Remove/Install Right Rear Engine Suspension Lug - AR01.20-P-5012-02MNP
Engine 177 In Model 167
| Remove/install heat shield of turbocharger | AR09.40-P-6044MNP |
CYLINDER HEAD
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA01.30-P-1003-01N | Bolt, heat shield/rear lifting eye to cylinder head | M6 | Nm | 9 |
CYLINDER HEAD
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA01.30-P-1006-01N | Screw, holder of connectors to heat shield/lifting lug at right rear | M6 | Nm | 8 |
CYLINDER HEAD
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA01.30-P-1007-01N | Screw, holder of vacuum line to heat shield/lifting lug at right rear | M6 | Nm | 8 |
SENSORS
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA07.04-P-1004-01Q | Bolt, differential pressure sensor/holder to holder for pressure hoses | M6 | Nm | 8 |

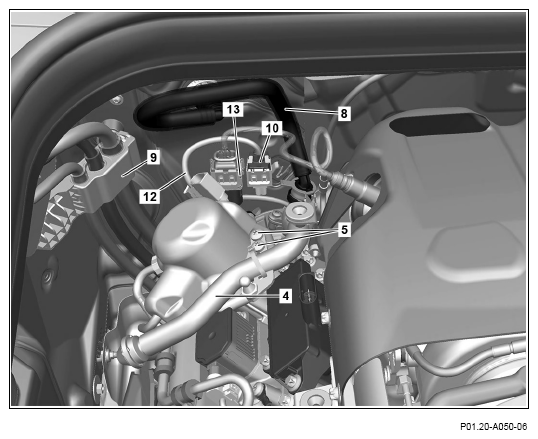

- Remove vacuum hose (8) and seal openings with suitable
stop plugs.
- Remove screw/bolt/bolts (5)
.
- Remove vacuum hose (4).
- Remove wiring (9).
- Remove heat shield from exhaust gas turbocharger.
- Remove, release and disconnect electrical connector (10).
- Unclip electric line (12) from bracket.
- Release and disconnect electrical connector (11).

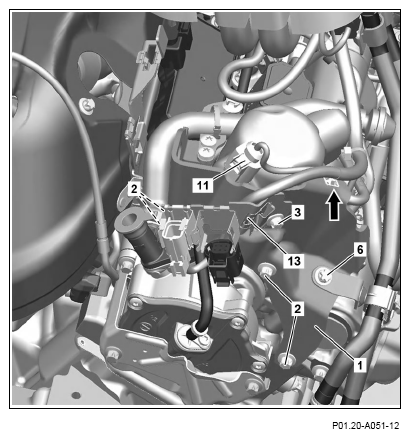

- Unclip electrical wiring harness from the engine lifting lug (1) (arrow).
- Remove screw (3) and remove bracket (13)
- Engine 177 In Model 167
with code 961 (Exhaust system with OPF, generation 2.0)
Remove screw (6) and remove bracket from the engine lifting lug (1)
- Remove screw/bolts (2)
- Remove engine lifting lug (1) upward.
- Install in the reverse order.
Shown with code 961 (exhaust system with OPF Generation 2.0)
