Remove/Install Right Rear Engine Suspension Lug - AR01.20-P-5012-02MNO

Engine 176 In Model 167

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

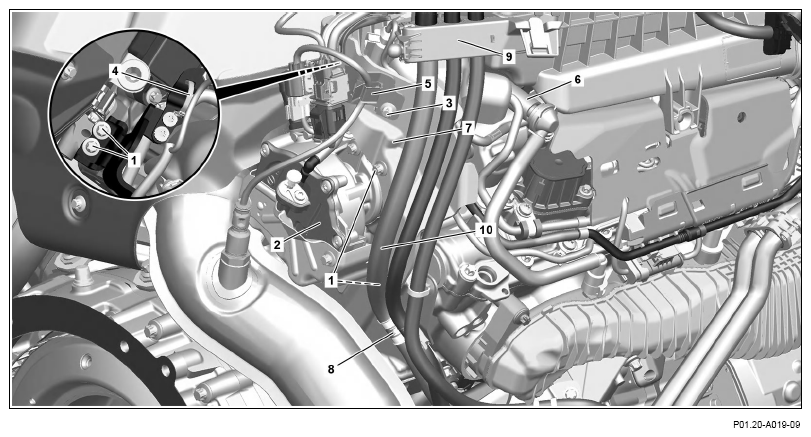

1. Open heat shield of vacuum hose (6) at vacuum pump (2).
2. Separate cable tie (4).

   : Install new cable tie (4).

3. Remove vacuum hose (6) from vacuum pump (2) and engine lifting lug (7), place to one side and seal openings with suitable stop plugs.
4. Remove screw (3).
5. Remove bracket (5) and place outside of the working area.
6. Unclip electric line (8) and place outside of the working area.
7. Remove bolt (1) .
8. Remove engine lifting lug (7).
9. Install in the reverse order.
