Cut Out Panoramic Sliding Roof Frame - AR77.21-P-0801-01ME
Model 167.1/9
With Code 413 (Automatic panoramic sliding sunroof)
| Risk of injury from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows | Wear protective gloves and safety glasses. | AS67.00-Z-0004-01A | |
| Risk of injury due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs | Wear cut-proof gloves and safety glasses. | AS77.21-Z-0002-01A | |
| Topical note | Notes on removal/installation of windows | AH67.10-P-1000-02RT | |
| Topical note | Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
- Cover adjacent paint surfaces with the
shield set.
Cover adjacent paint surfaces with
Paint can otherwise be damaged by twisted cutting wire.

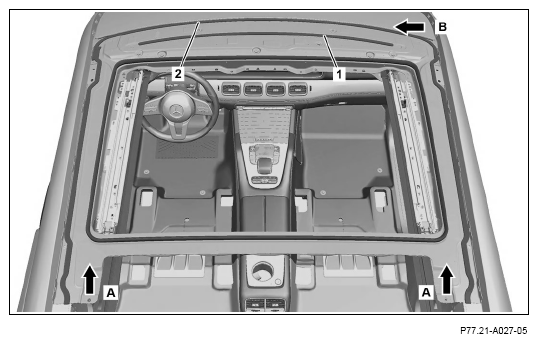

- Separate adhesive bead (1) with a suitable isolating blade in the direction of arrow "B".
- Lift panoramic sliding sunroof frame at the rear end "arrows A".
- Cut through adhesive bead all-round (2) with twisted cutting wire in direction of arrow "B".
Helper required.
- Remove panoramic sliding sunroof frame.
