Remove Contacts From 2.5 Solder Contact Plug Round Plug Contact - AR00.19-P-0120-18A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying RK 2.5 Blade Solder Contact (220 589 01 99 53)

Courtesy of MERCEDES-BENZ USA

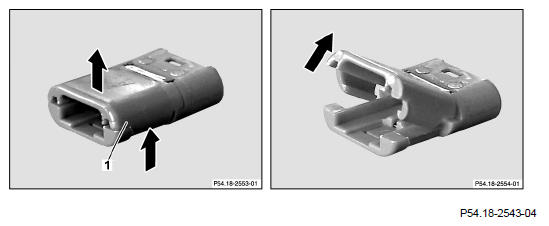

Unfasten secondary release on version with slide

1. Insert a suitable tool under the slide valve cap (1) and press the slide valve out of the last detent in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

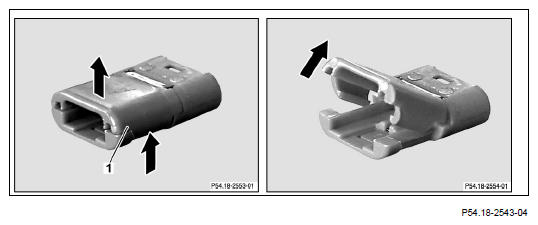

   Unfasten secondary release on version with securing clip

2. Using a suitable tool, pry up the side tabs of the retaining clamp (1).
3. Open the retaining clamp (1).

   Courtesy of MERCEDES-BENZ USA

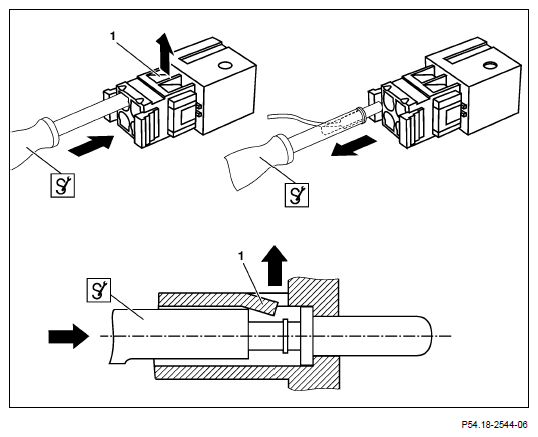

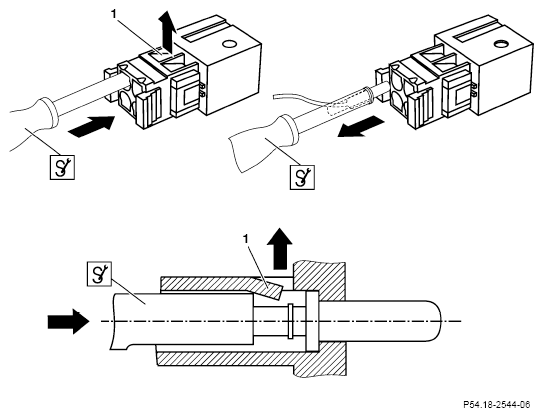

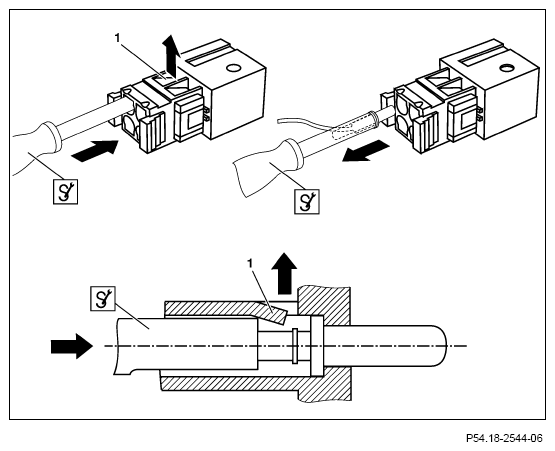

   Unpin contact from the connector

4. Insert blade holder with clamping pliers and RK 2.5 solder contact blade from rear side into cable duct of connector.

   Align sleeve of RK 2.5 solder contact blade to spring shackle (1) of connector housing.

   This step presses on the spring shackle (1) of the connector.

5. Remove contact pin together with blade holder with clamping pliers and RK 2.5 solder contact blade from connector by gently pulling towards rear.
