Remove/Install Left Throttle Valve Actuator - AR07.51-P-1402MNP
Engine 177 in model 167
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove charge air coolers. | AR09.41-P-6817MNP | |

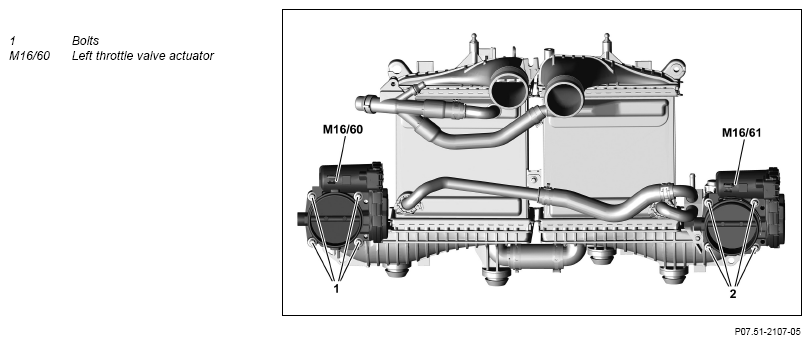

| 2 | Remove screws (1) and remove left throttle valve actuator (M16/60) from the left charge air cooler. | ||
| *BA09.41-P-1008-01X | |||
| 3 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 |
