Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01XGA

Engine 176 In Model 167

Engine 176 in model 463 as of model year 2019

CHARGE AIR LINE/CHARGE AIR COOLING

Number	Designation		Engine 176
BA09.41-P-1004-01X	Bolt, charge air distributor to cylinder head	Nm	13

Tighten screws (A to E) of left and right charge-air distributor (1, 2) in alphabetic order .

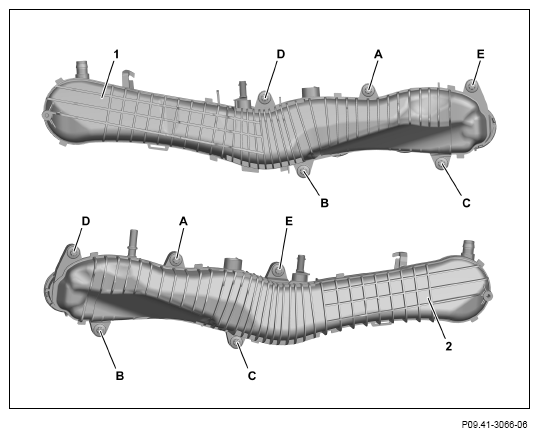

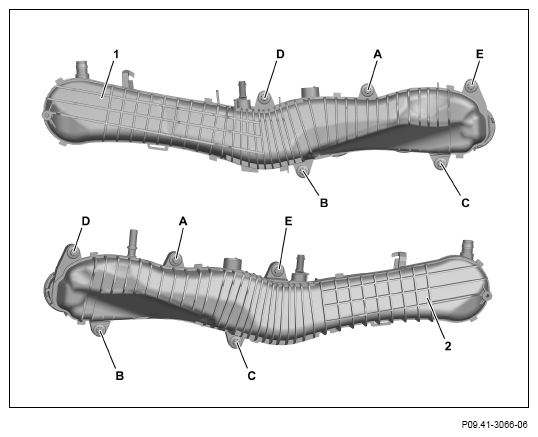

Fig 1: Charge Air Distributor Tightening Sequence - Engine 176 In Model 167
Courtesy of MERCEDES-BENZ USA
