Remove/Install Right Circulation Pump For Low-Temperature Circuit - AR09.41-P-6931MSC

Engine 256.9 In Model 167

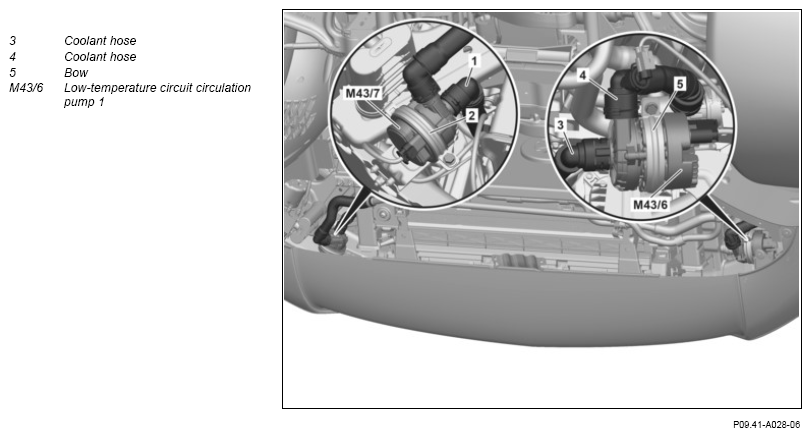

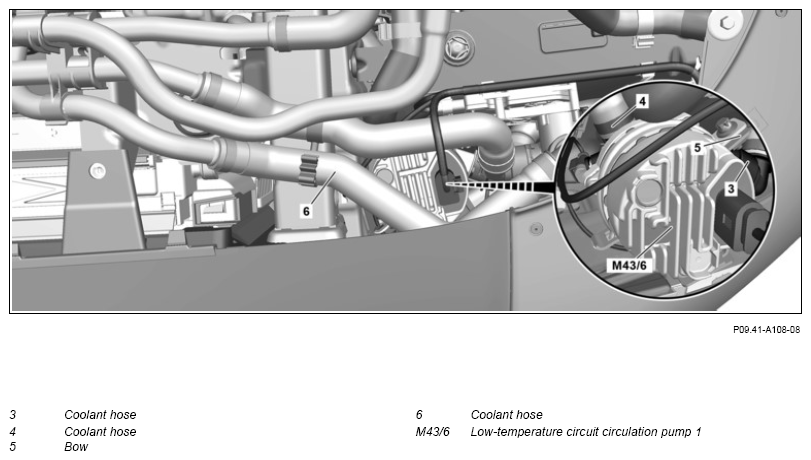

Fig 1: Right Circulation Pump 1 For Low-Temperature Circuit Components Location - Engine 256.9 In Model 167

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle with code M016 (Uprated engine)

	Risk of injury  To skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Remove/install
1	Remove cap from coolant expansion reservoir
2	Remove center, front, and right front lower Engine compartment lining.		AR61.20-P-1105ME
		: Only install center, front, and right front lower Engine compartment lining after leak test.
3	Release front section in right front fender liner.	Engine 256.9 in model 167 with code M016 (Uprated engine)
			AR88.10-P-1301ME
4	Clamp off, remove coolant hose (6) and seal openings with protective covers.	Engine 256.9 in model 167 with code M016 (Uprated engine)
			AR20.20-P-7441-01RQ
		Collect escaping coolant in a suitable vessel.
		Set of protective covers	Fig 2
		Clamp	Fig 3
5	Release and disconnect electrical connector on coolant hose (4).
6	Clamp off coolant hose (3, 4).	Clamp	Fig 3
7	Remove coolant hose (3, 4) from low-temperature circuit circulation pump 1 (M43/6), collect escaping coolant in a suitable container, and seal openings with protective covers.		AR20.20-P-7441-01RQ
		Set of protective covers	Fig 2
8	Release and disconnect electrical connector o low-temperature circuit circulation pump 1 (M43/6).
9	Remove bracket (5) and low-temperature circuit circulation pump 1 (M43/6).
10	Install in the reverse order.
11	Connect diagnostic device and perform venting routine.
		Menu point: Powertrain control unit (N127)→ Adaptations→ Teach-in processes→ Bleeding of Engine cooling system of low-temperature circuit	AD00.00-P-2000-06ME
12	Check Engine cooling system for leak tightness.		AR20.00-P-1010MSC
13	Install center, front, and right front lower Engine compartment lining.		AR61.20-P-1105ME
