Rear Panel CROSSMEMBER Installation - Ar64.10-P-0500-03MEX
Model 167.9
with code M036 (Maybach version)
REAR END
| Number | Designation | Model 167.9 with code M036 (Maybach version) | |
|---|---|---|---|
| BA64.20-P-1008-01G | Screw, rear panel crossmember to rear panel mounting support | Nm | 23 |
The superordinate service document as well as the safety information in the service document must be observed.
- Install rear panel crossmember (1), fit, and fix in place.

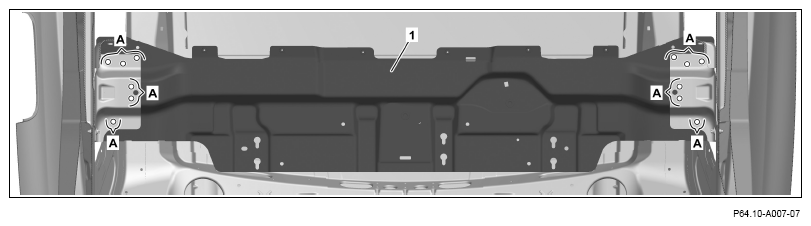

- Drill rivet holes on the rear panel crossmember (1) with a diameter of 6.7 mm from below through the existing holes in the body (areas A).
- Remove rear panel crossmember (1).
- Deburr rivet holes on the rear panel crossmember (1) and on the body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint.
- Install rear panel crossmember (1) and fix in place.

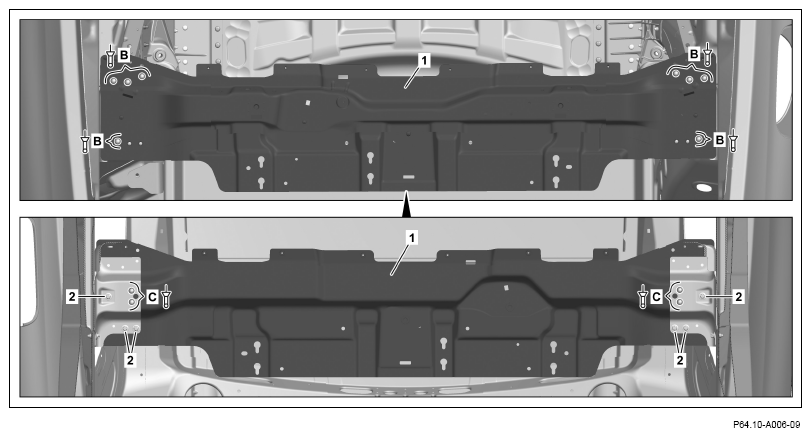

- Rivet rear panel crossmember (1) with rivets with a diameter of 6.4 x 14 (areas B, C).
Rivet rear panel crossmember (1) from below (areas C).
- Screw in screws (2) on the rear panel crossmember (1).
