Remove/Install Wheel And Tire Assemblies - AR40.10-P-1102ME

Model 167

G15038110Courtesy of MERCEDES-BENZ USA
G15038111Courtesy of MERCEDES-BENZ USA
G15038112Courtesy of MERCEDES-BENZ USA
Topical note  Information on tires/rims   AH40.10-P-9411-01A
Topical note  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Raise vehicle.   AR00.60-P-1006A
2 Remove wheel trims. If installed.
3 Remove wheel and tire assemblies (1). IMPORTANTOnly for GERMANY ONLY

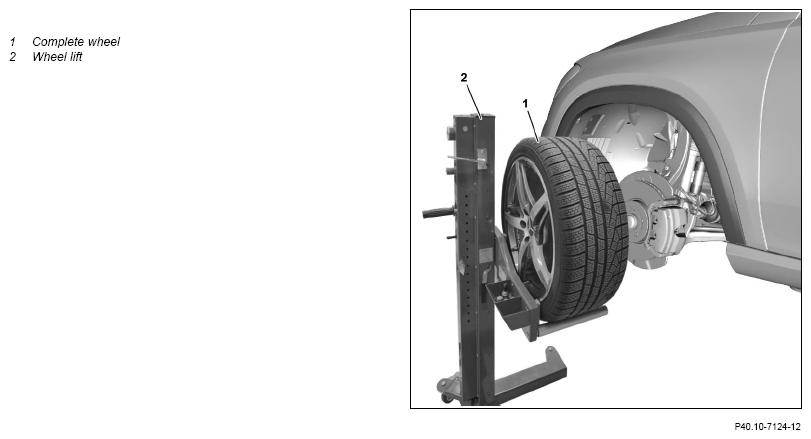

Use a wheel lift dolly (2) with a rim size from 17".
    SPECIAL TOOL Socket wrench Fig 1
INSPECT Check
4 Check components of wheel threaded connection. IMPORTANT Before mounting a wheel and tire assembly (1), remove minor soiling using a rag.
Apply heat-resistant lubricating paste sufficiently on wheel hub.
    Paste, hot lubrication 1 kg, DBL 6879.20 If problems occur,
↓
clean components of wheel threaded connection and protect against corrosion. If enough soiling is present,
↓
carry out further cleaning and anti-corrosion protection measures.		 *BR00.45-Z-1005-06A
      AR40.10-P-1100-02A
5 Check tires of wheel and tire assemblies (1) for wear and damage. On the wheel and tire assemblies (1) to be installed.
REFER TO MAINTENANCE     AP40.10-P-4051EW
INSTALLING Install
6 Install wheel and tire assemblies (1). IMPORTANTOnly for GERMANY ONLY
Use a wheel lift dolly (2) with a rim size from 17".
    IMPORTANTCommercially available devices/tools

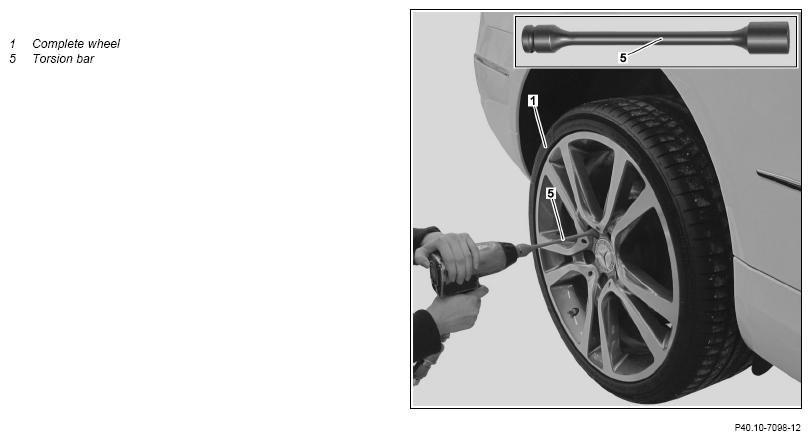

Use torsion bar (5) with 75 Nm for 2nd stage (initial torque).

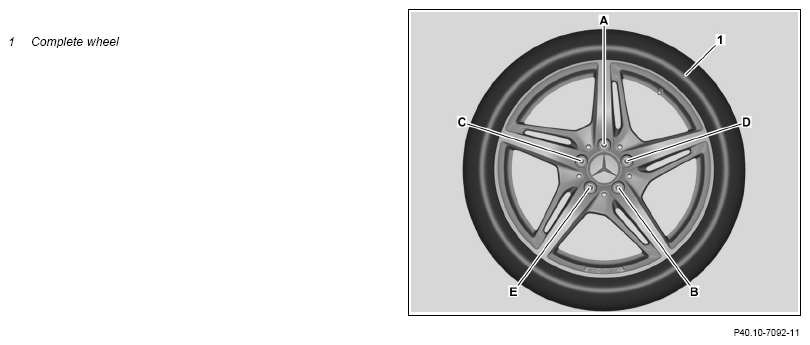

    IMPORTANT Observe tightening sequence "A, B, C, D, E" and the multistage tightening torque of the wheel bolts.
    TORQUE SPECIFICATION Wheel bolt *BA40.10-P-1001-01O
    SPECIAL TOOL Socket wrench Fig 1
7 Install wheel trims. If installed.
NOTES
Check for firm seating of wheel trim on rim and for correct positioning of wheel trim relative to valve.
Otherwise, there is a risk of losing the wheel trim or of damaging the valve.
8 Check tire pressure on wheel and tire assemblies (1). Only when changing tire.
REFER TO MAINTENANCE     AP40.15-P-4061A
    In the event of a problem,
↓
correct tire pressure on wheel and tire assemblies (1).
9 Restart tire pressure monitor (TPM) or tire pressure loss warning via the instrument cluster. Only when changing tire.
REFER TO MAINTENANCE     AP40.15-P-4069U
10 Check maximum speed limitation in instrument cluster, correct if necessary. Only when changing tire.
Topical note  Limited maximum speed for winter tires with speed index V   AH40.10-P-1020-03A
  Information about regulations for recommended wheel/tire combinations   AH40.10-P-0003-01A
    IMPORTANT Note tire speed rating.
If the maximum permissible speed of an M+S tire is lower than the maximum permissible speed of the vehicle.
↓
Apply corresponding adhesive label in the driver's visual field.
WHEELS

Number Designation Model 167
BA40.10-P-1001-01O Wheel bolt Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 150
Fig 1: Identifying Socket Wrench (199 589 01 09 00)
G15038113Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
