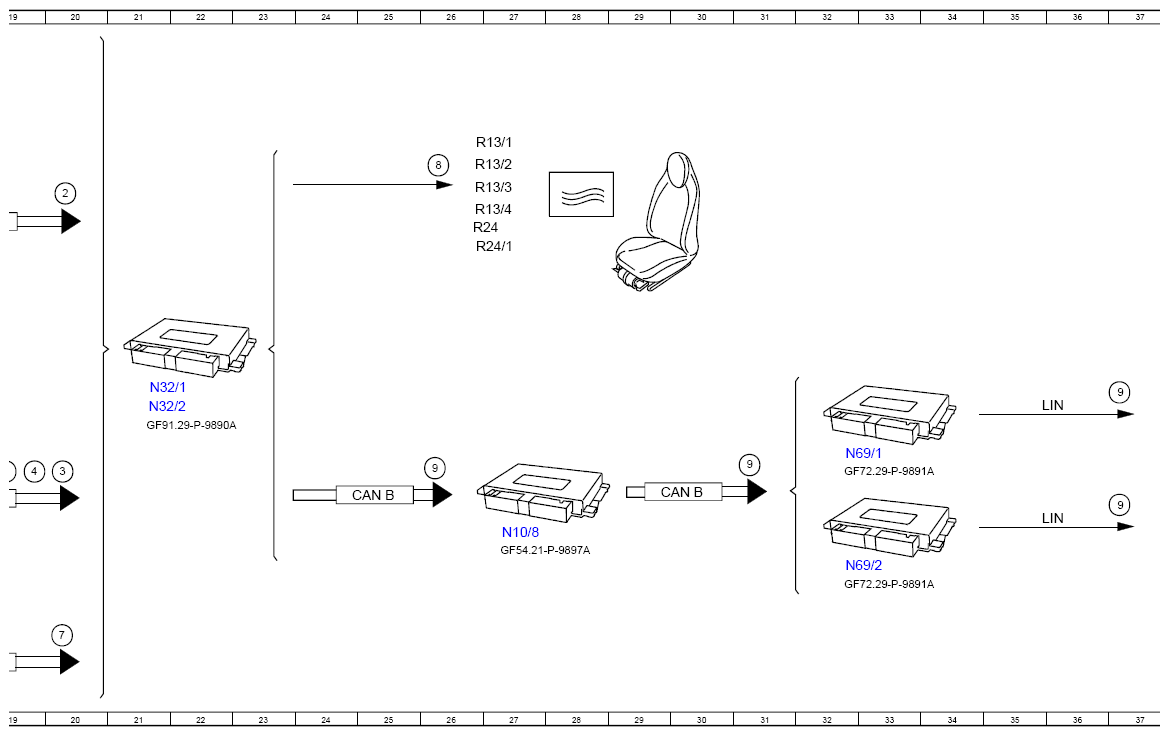

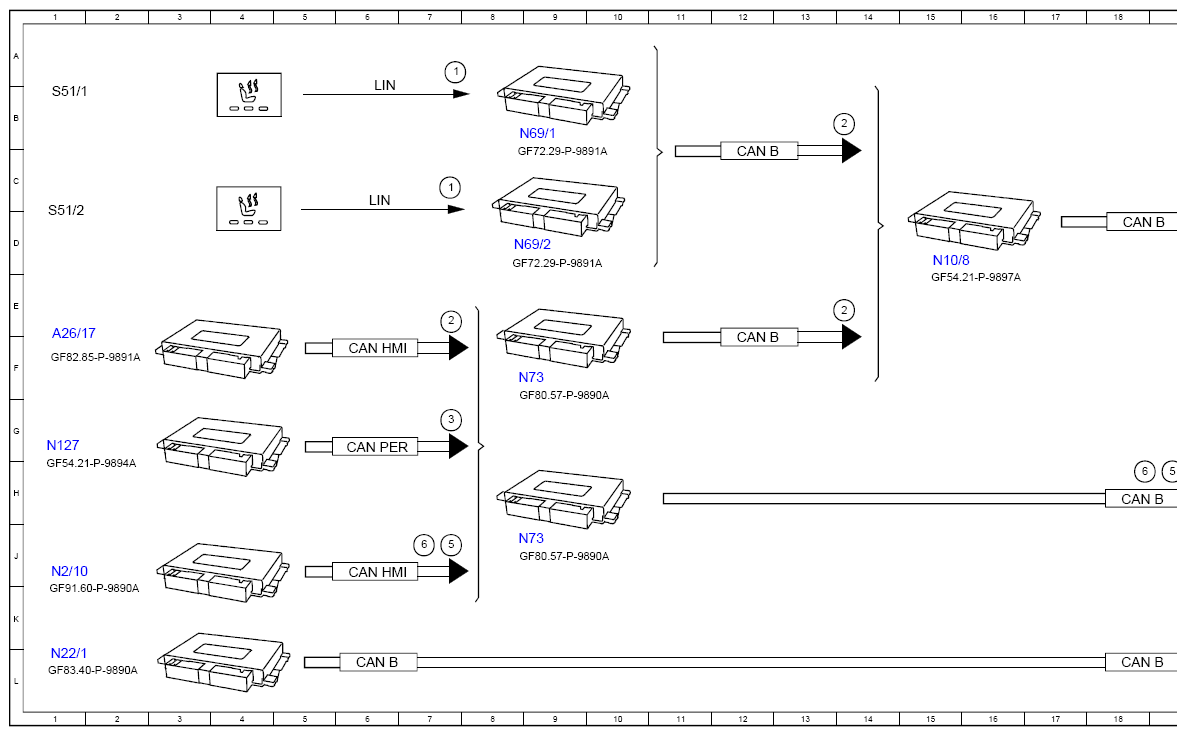

(Function Schematic For Actuating Front Seat Heating - PE91.30-P-2502-97D)
Model 293 with code 401 (Climatised front seats)
Model 293 with code 873 (Left and right drivers seat heating)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 7A |
| 1 | Seat climate control switch group, status | 7C |
| 2 | Seat heater, request | 14B |
| 2 | Seat heater, request | 7E |
| 2 | Seat heater, request | 20C |
| 2 | Seat heater, request | 14E |
| 3 | Transmission mode, signal | 20H |
| 3 | Transmission mode, signal | 7G |
| 4 | Circuit 15, status | 19H |
| 5 | Seat belt buckle switch, status | 7J |
| 5 | Seat belt buckle switch, status | 19H |
| 6 | Crash, signal | 7J |
| 6 | Crash, signal | 18H |
| 7 | Interior temperature, signal | 20K |
| 8 | Seat heater, actuation | 26C |
| 9 | Seat heater, status | 31H |
| 9 | Seat heater, status | 37H |
| 9 | Seat heater, status | 37F |
| 9 | Seat heater, status | 26H |
| A26/17 | Head unit | 1F |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 18H |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 18D |
| CAN B | Interior CAN | 25H |
| CAN B | Interior CAN | 18L |
| CAN B | Interior CAN | 6L |
| CAN B | Interior CAN | 12F |
| CAN HMI | User interface CAN | 6F |
| CAN HMI | User interface CAN | 6J |
| CAN PER | Peripherals CAN | 6G |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36H |
| LIN | Local Interconnect Network | 36G |
| N10/8 | Rear central control unit | 15D |
| N10/8 | Rear central control unit | 27J |
| N127 | Drivetrain control unit | 1G |
| N2/10 | Supplemental restraint system control unit | 1J |
| N22/1 | Climate control control unit | 1L |
| N32/1 | Driver seat control unit | 21F |
| N32/2 | Front passenger seat control unit | 21G |
| N69/1 | Driver door control unit | 9B |
| N69/1 | Driver door control unit | 32G |
| N69/2 | Front passenger door control unit | 9D |
| N69/2 | Front passenger door control unit | 32J |
| N73 | Ignition lock control unit | 9J |
| N73 | Ignition lock control unit | 9F |
| R13/1 | Left front seat cushion heater pad | 27B |
| R13/2 | Left front seat backrest heater pad | 27C |
| R13/3 | Right front seat cushion heater pad | 27C |
| R13/4 | Right front seat backrest heater pad | 27D |
| R24 | Adjustable seat cushion length heater pad, driver | 26D |
| R24/1 | Adjustable seat cushion length heater pad, front passenger | 27D |
| S51/1 | Driver seat climate control switch group | 1B |
| S51/1 | Driver seat climate control switch group | 37G |
| S51/2 | Front passenger seat climate control switch group | 1D |
| S51/2 | Front passenger seat climate control switch group | 38J |
