Remove/Install Seat Backrest Trim - AR91.10-P-1912ME
Model 167
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Fold down folding table. | If installed. | |
| 2 | Remove folding table. | If installed. | |

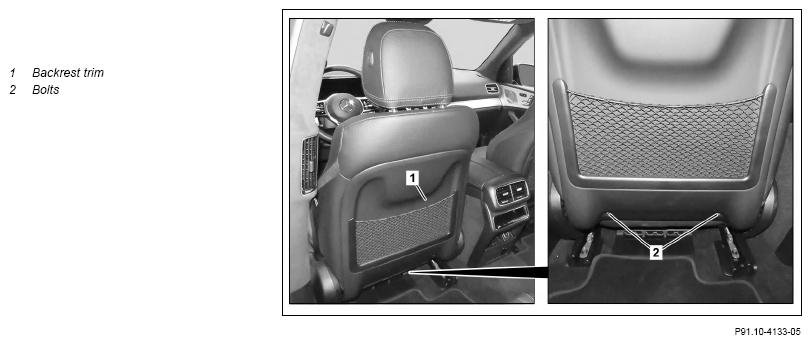

| 3 | Unscrew bolts (2). | ||
| 4 | Move driver's seat or front passenger seat to foremost position and upward. | ||
| 5.1 | Pull seat backrest trim (1) diagonally downward and rearward. | Model 167 except code 876 (Interior Light package) |
|
| 5.2 | Pull seat backrest trim (1) diagonally downward and rearward and remove until the electrical connector is accessible. | Model 167 with code 876 (Interior Light package) |
|
| 6 | Release and disconnect the electrical connector. | Model 167 with code 876 (Interior Light package) |
|
| 7 | Install in the reverse order. |
