Remove/Install Rear Bench Seat Backrest Adjustment Motor - AR91.29-P-1452MEB

Model 167.1

With Code 567 (Vario rear seat)

Shown on left rear seat

Courtesy of MERCEDES-BENZ USA

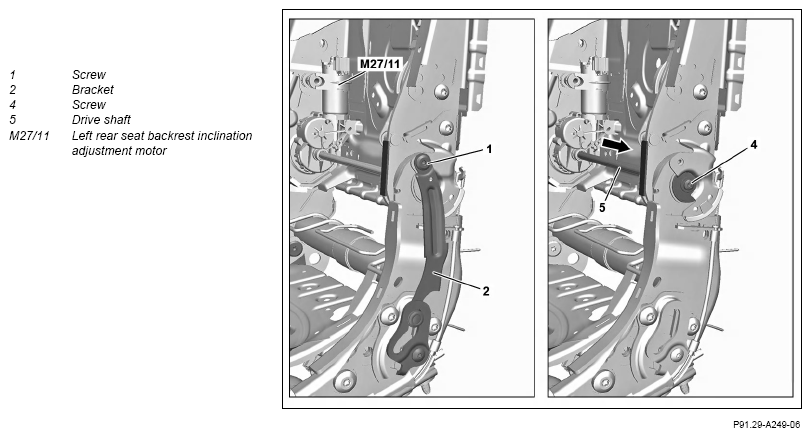

Fig 1: Rear Bench Seat Backrest Adjustment Motor Components Location - Model 167.1 With Code 567 (Shown On Left Rear Seat)

Courtesy of MERCEDES-BENZ USA

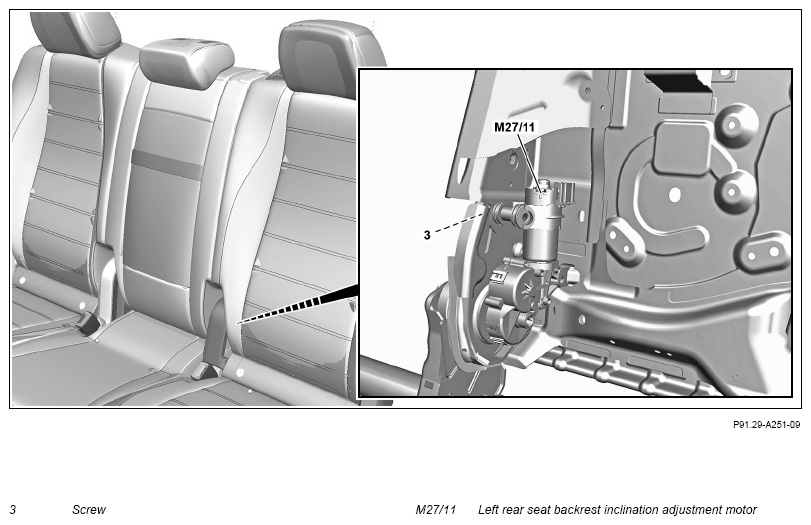

Shown on left rear seat

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left or right bench seat in rear passenger compartment.		AR91.12-P-4026ME
2	Remove outer cover of seat backrest.		AR91.18-P-1872MEB
3	Unscrew screw (1) and slide holder (2) out of working area.	M6X1	*BA00.10-P-1002-04A
4	Unscrew bolt (4).	M6X1	*BA00.10-P-1002-04A
5	Pull out drive shaft (5) in direction of arrow.
6	Release and disconnect electrical connector of inclination adjustment seat adjustment motor for left or right rear seat backrest (M27/11, M28/11).
7	Remove bolt (3).	M8X1	*BA00.10-P-1004-04A
8	Remove inclination adjustment seat adjustment motor for left or right rear seat backrest (M27/11, M28/11).
9	Install in the reverse order.
