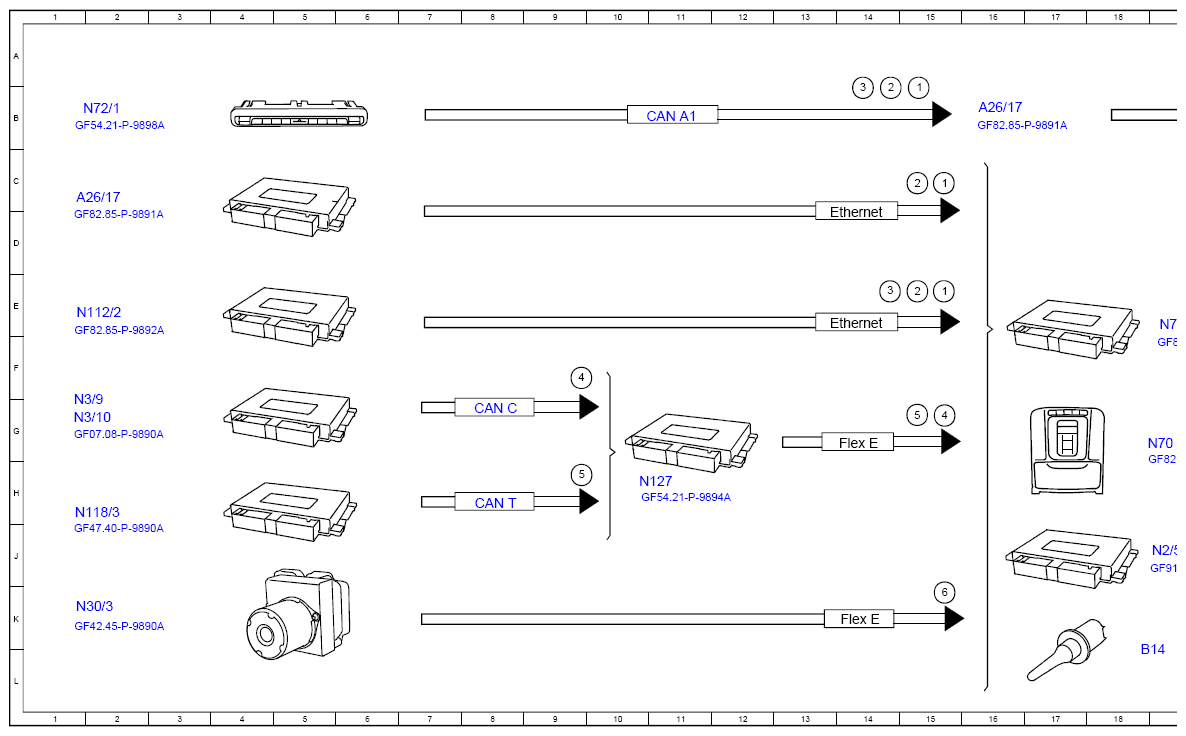

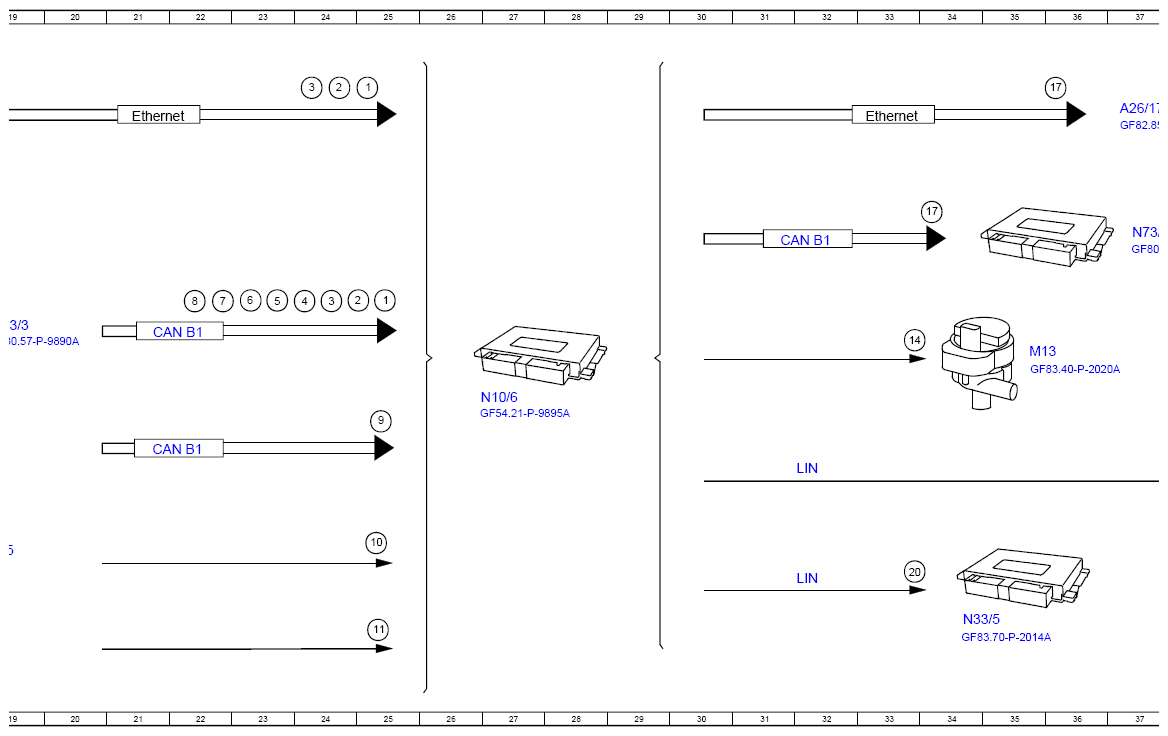

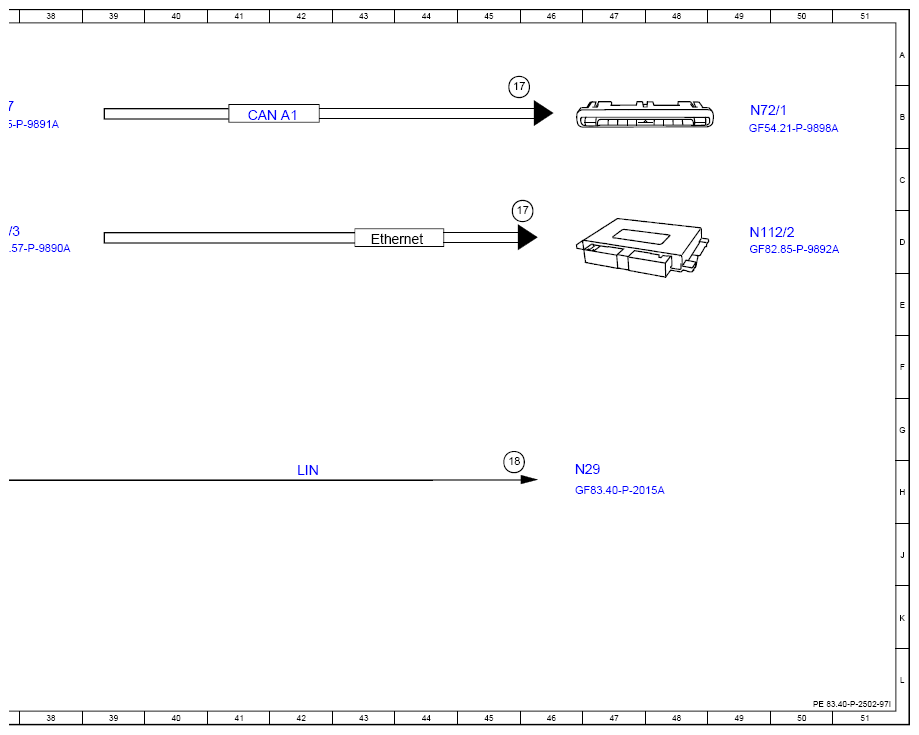

(Function Schematic For Pre-Entry Climate Control - PE83.40-P-2502-97I)
Model 206, 214, 236 with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Departure time, signal | 15B |
| 1 | Departure time, signal | 15C |
| 1 | Departure time, signal | 15E |
| 1 | Departure time, signal | 25B |
| 1 | Departure time, signal | 25E |
| 10 | Crash, signal | 25J |
| 11 | Outside temperature sensor, signal | 25K |
| 14 | Coolant circulation pump, actuation | 33F |
| 17 | Pre-air conditioning, status | 46B |
| 17 | Pre-air conditioning, status | 34D |
| 17 | Pre-air conditioning, status | 46C |
| 17 | Pre-air conditioning, status | 36A |
| 18 | Blower motor, request | 46G |
| 2 | Pre-air conditioning, request | 24A |
| 2 | Pre-air conditioning, request | 25E |
| 2 | Pre-air conditioning, request | 15C |
| 2 | Pre-air conditioning, request | 15E |
| 2 | Pre-air conditioning, request | 14A |
| 20 | High-voltage PTC heater, actuation | 33J |
| 3 | Consumer shutoff, request | 14B |
| 3 | Consumer shutoff, request | 14E |
| 3 | Consumer shutoff, request | 24B |
| 3 | Consumer shutoff, request | 24E |
| 4 | Coolant temperature, signal | 24E |
| 4 | Coolant temperature, signal | 15G |
| 4 | Coolant temperature, signal | 9F |
| 5 | Fuel level, signal | 23E |
| 5 | Fuel level, signal | 15G |
| 5 | Fuel level, signal | 9H |
| 6 | Vehicle speed, signal | 15K |
| 6 | Vehicle speed, signal | 23E |
| 7 | Circuit 15, status | 22E |
| 8 | Battery voltage, signal | 22E |
| 9 | Interior temperature, signal | 25G |
| A26/17 | Head unit | 2C |
| A26/17 | Head unit | 16B |
| A26/17 | Head unit | 37B |
| B14 | Outside temperature sensor | 18L |
| CAN A1 | CAN 1 for telematics | 11B |
| CAN A1 | CAN 1 for telematics | 41B |
| CAN B1 | CAN 1 for vehicle interior | 21E |
| CAN B1 | CAN 1 for vehicle interior | 21G |
| CAN B1 | CAN 1 for vehicle interior | 32D |
| CAN C | CAN for engine | 8G |
| CAN T | CAN for drivetrain | 8H |
| Ethernet | Ethernet | 14D |
| Ethernet | Ethernet | 21B |
| Ethernet | Ethernet | 33B |
| Ethernet | Ethernet | 14E |
| Ethernet | Ethernet | 43D |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 14K |
| LIN | Local Interconnect Network | 42H |
| LIN | Local Interconnect Network | 32H |
| LIN | Local Interconnect Network | 32J |
| M13 | Circulation pump | 35F |
| N10/6 | Front signal acquisition and actuation module control unit | 27G |
| N112/2 | Telematics services communication module | 2E |
| N112/2 | Telematics services communication module | 49D |
| N118/3 | Fuel pump control unit | 2H |
| N127 | Drivetrain control unit | 10H |
| N2/5 | Supplemental restraint system control unit | 19J |
| N29 | Blower regulator | 46H |
| N3/10 | Engine management control unit | 1G |
| N3/9 | Engine management control unit | 1G |
| N30/3 | Electronic Stability Program control unit | 2K |
| N33/5 | PTC heater | 34K |
| N70 | Overhead control panel control unit | 19G |
| N72/1 | Upper control panel control unit | 49B |
| N72/1 | Upper control panel control unit | 2B |
| N73/3 | Electronic ignition switch control unit | 19E |
| N73/3 | Electronic ignition switch control unit | 37D |
