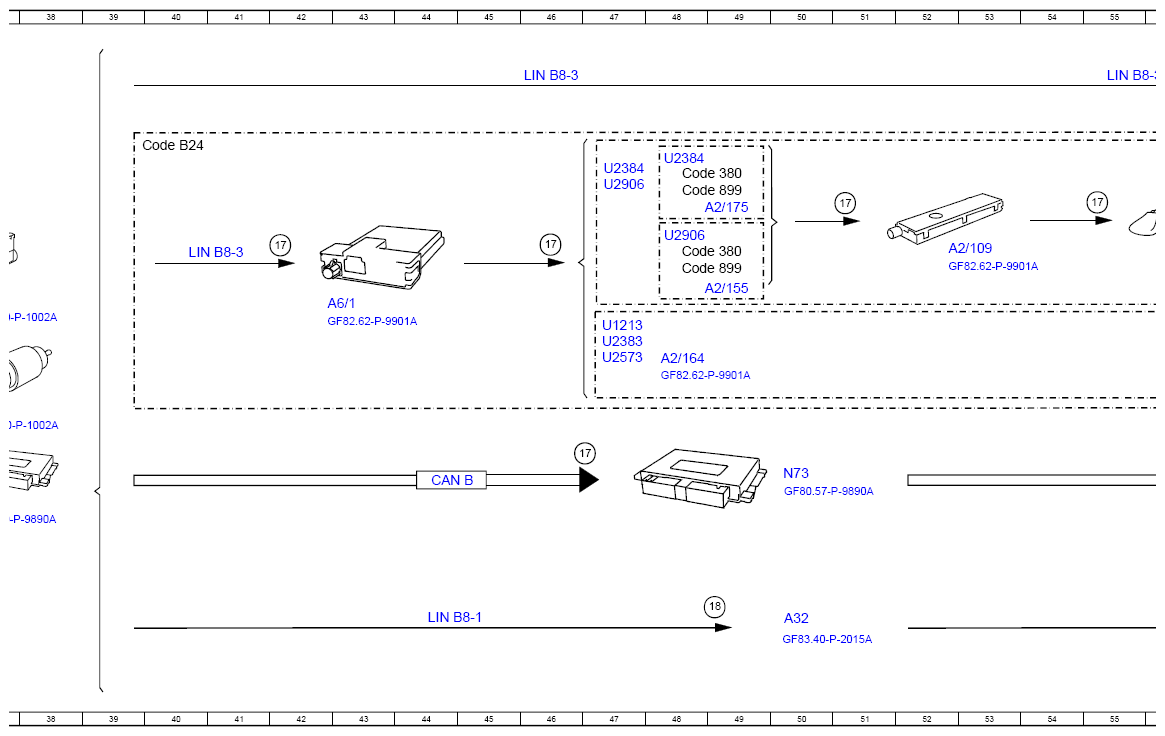

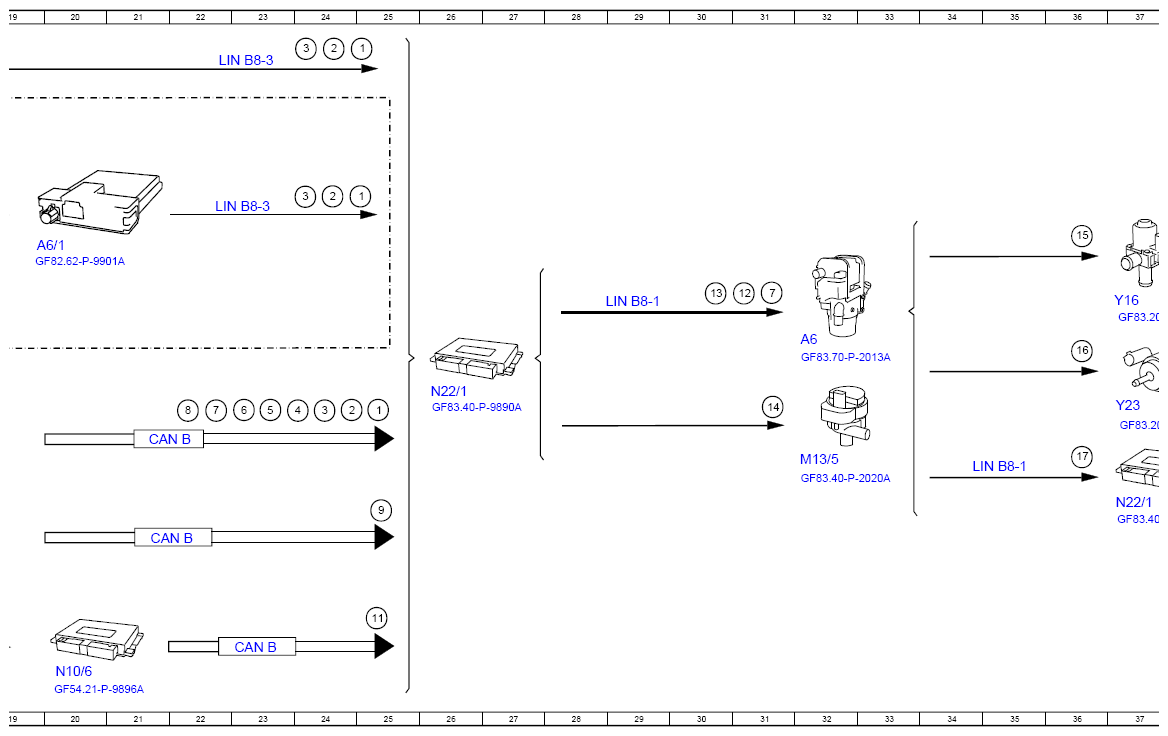

(Function Schematic For Actuating Stationary Heater - PE83.70-P-2501-97D)
Model 213, 238, 257, 290 as of model year 2021 with code 228 (Additional warm water heating)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Departure time, signal | 5C |
| 1 | Departure time, signal | 10C |
| 1 | Departure time, signal | 14C |
| 1 | Departure time, signal | 15F |
| 1 | Departure time, signal | 15G |
| 1 | Departure time, signal | 25A |
| 1 | Departure time, signal | 19C |
| 1 | Departure time, signal | 25C |
| 1 | Departure time, signal | 25G |
| 10 | Crash, signal | 15K |
| 11 | Outside temperature sensor, signal | 19K |
| 11 | Outside temperature sensor, signal | 25K |
| 12 | Heat, request | 31E |
| 13 | Stationary heater switchover valve, request | 30E |
| 14 | Coolant circulation pump, actuation | 31G |
| 15 | Stationary heater switchover valve, actuation | 36D |
| 16 | Fuel pump, actuation | 36F |
| 17 | Stationary heater, status | 36G |
| 17 | Stationary heater, status | 58A |
| 17 | Stationary heater, status | 61D |
| 17 | Stationary heater, status | 55C |
| 17 | Stationary heater, status | 46G |
| 17 | Stationary heater, status | 58G |
| 17 | Stationary heater, status | 42D |
| 17 | Stationary heater, status | 46D |
| 17 | Stationary heater, status | 51D |
| 18 | Blower motor, request | 49K |
| 19 | Blower motor, actuation | 58K |
| 2 | Stationary heater, request | 24A |
| 2 | Stationary heater, request | 24C |
| 2 | Stationary heater, request | 10C |
| 2 | Stationary heater, request | 25G |
| 2 | Stationary heater, request | 15F |
| 2 | Stationary heater, request | 15G |
| 2 | Stationary heater, request | 5C |
| 2 | Stationary heater, request | 14C |
| 2 | Stationary heater, request | 15G |
| 3 | Consumer shutoff, request | 4C |
| 3 | Consumer shutoff, request | 9C |
| 3 | Consumer shutoff, request | 13C |
| 3 | Consumer shutoff, request | 14G |
| 3 | Consumer shutoff, request | 24A |
| 3 | Consumer shutoff, request | 24C |
| 3 | Consumer shutoff, request | 18C |
| 3 | Consumer shutoff, request | 24G |
| 4 | Coolant temperature, signal | 24G |
| 4 | Coolant temperature, signal | 15H |
| 4 | Coolant temperature, signal | 9H |
| 5 | Fuel fill level, signal | 23G |
| 5 | Fuel fill level, signal | 14H |
| 5 | Fuel fill level, signal | 9J |
| 6 | Vehicle speed, signal | 15L |
| 6 | Vehicle speed, signal | 23G |
| 7 | Circuit 15, status | 22G |
| 7 | Circuit 15, status | 31E |
| 8 | Battery voltage, signal | 22G |
| 9 | Interior temperature, signal | 25H |
| A2/102 | Left telephone antenna | 6C |
| A2/102 | Left telephone antenna | 57D |
| A2/103 | Right telephone antenna | 6D |
| A2/103 | Right telephone antenna | 57D |
| A2/109 | Telephone antenna splitter | 11D |
| A2/109 | Telephone antenna splitter | 52D |
| A2/155 | Telephone and Active Parking Assist/stationary heater antenna changeover switch | 16D |
| A2/155 | Telephone and Active Parking Assist/stationary heater antenna changeover switch | 48E |
| A2/164 | Active Parking Assist/stationary heater antenna | 7E |
| A2/164 | Active Parking Assist/stationary heater antenna | 48F |
| A2/175 | Antenna changeover switch for car telephony/stationary heater and Remote Parking Package | 16C |
| A2/175 | Antenna changeover switch for car telephony/stationary heater and Remote Parking Package | 48D |
| A26/17 | Head unit | 2F |
| A32 | AC housing | 50K |
| A32m1 | Electronic blower motor | 62K |
| A6 | Stationary heater unit | 32F |
| A6/1 | Stationary heater radio remote control receiver | 19D |
| A6/1 | Stationary heater radio remote control receiver | 42E |
| A8/3 | Stationary heater radio remote control transmitter | 63D |
| A8/3 | Stationary heater radio remote control transmitter | 2D |
| B14 | Outside temperature sensor | 17L |
| CAN B | Interior CAN | 21G |
| CAN B | Interior CAN | 21J |
| CAN B | Interior CAN | 44H |
| CAN B | Interior CAN | 23L |
| CAN C1 | CAN 1 for drive | 8H |
| CAN C1 | CAN 1 for drive | 8J |
| CAN D | CAN for diagnosis | 13G |
| CAN D | CAN for diagnosis | 56H |
| CAN D | CAN for diagnosis | 13L |
| CAN HMI | User interface CAN | 13K |
| CAN HMI2 | User interface CAN 2 | 13G |
| Code 380 | Car telephony package | 48C |
| Code 380 | Car telephony package | 48D |
| Code 380 | Car telephony package | 15D |
| Code 380 | Car telephony package | 15C |
| Code 899 | Wireless phone charging at front and antenna | 15C |
| Code 899 | Wireless phone charging at front and antenna | 15D |
| Code 899 | Wireless phone charging at front and antenna | 48C |
| Code 899 | Wireless phone charging at front and antenna | 48D |
| Code B24 | Remote control for stationary heater | 1B |
| Code B24 | Remote control for stationary heater | 39C |
| Flex E | Chassis FlexRay | 13J |
| LIN B8-1 | LIN 1 for climate control system | 29E |
| LIN B8-1 | LIN 1 for climate control system | 35H |
| LIN B8-1 | LIN 1 for climate control system | 44K |
| LIN B8-3 | LIN 3 for climate control system | 23A |
| LIN B8-3 | LIN 3 for climate control system | 46A |
| LIN B8-3 | LIN 3 for climate control system | 12A |
| LIN B8-3 | LIN 3 for climate control system | 55A |
| LIN B8-3 | LIN 3 for climate control system | 22C |
| LIN B8-3 | LIN 3 for climate control system | 40D |
| M13/5 | Coolant circulation pump | 32H |
| N10/6 | Front SAM control unit | 20L |
| N112/9 | HERMES control unit | 2G |
| N112/9 | HERMES control unit | 62H |
| N118 | Fuel pump control unit | 2J |
| N127 | Drivetrain control unit | 10J |
| N2/10 | Supplemental restraint system control unit | 2K |
| N22/1 | Climate control control unit | 26F |
| N22/1 | Climate control control unit | 37H |
| N3/10 | ME-SFI [ME] control unit | 2H |
| N3/9 | CDI control unit | 2H |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2L |
| N58/1 | Climate control operating unit | 62A |
| N58/1 | Climate control operating unit | 2A |
| N70 | Overhead control panel control unit | 18J |
| N73 | Electronic ignition switch control unit | 18G |
| N73 | Electronic ignition switch control unit | 50H |
| U1213 | Valid for model 213 | 6E |
| U1213 | Valid for model 213 | 47E |
| U2383 | Valid for model 238.3 | 6E |
| U2383 | Valid for model 238.3 | 47F |
| U2384 | Valid for model 238.4 | 15B |
| U2384 | Valid for model 238.4 | 6B |
| U2384 | Valid for model 238.4 | 47C |
| U2384 | Valid for model 238.4 | 48C |
| U2573 | Valid for model 257.3 | 6E |
| U2573 | Valid for model 257.3 | 47F |
| U2906 | Valid for model 290.6 | 15C |
| U2906 | Valid for model 290.6 | 6B |
| U2906 | Valid for model 290.6 | 47C |
| U2906 | Valid for model 290.6 | 48D |
| Y16 | Stationary heater switchover valve | 37E |
| Y23 | Stationary heater fuel pump | 37G |
