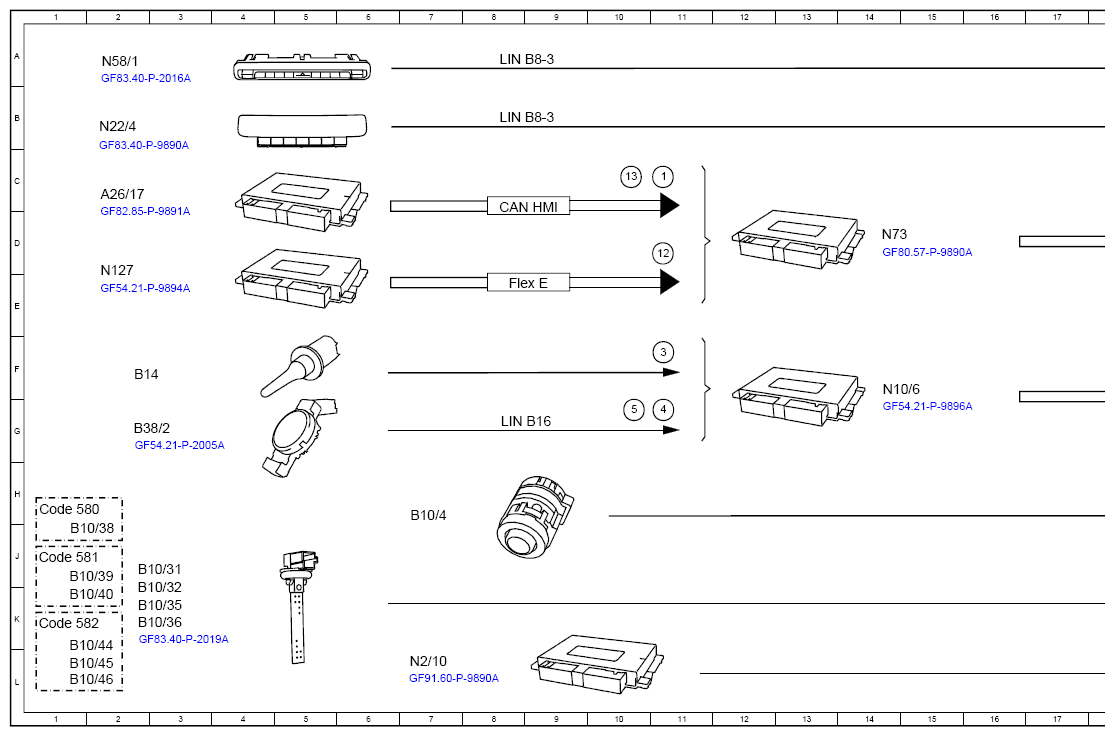

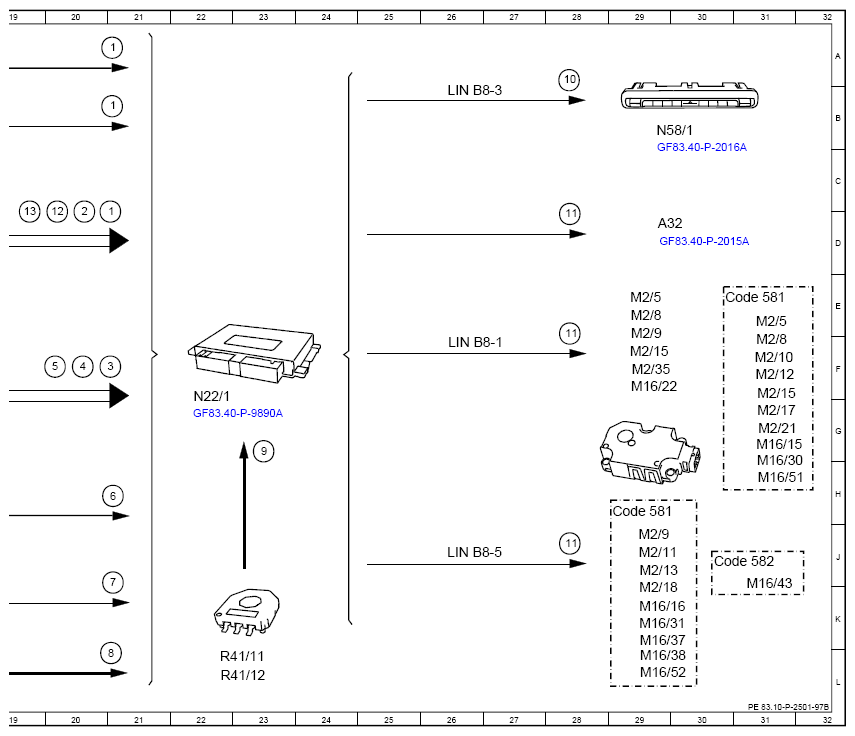

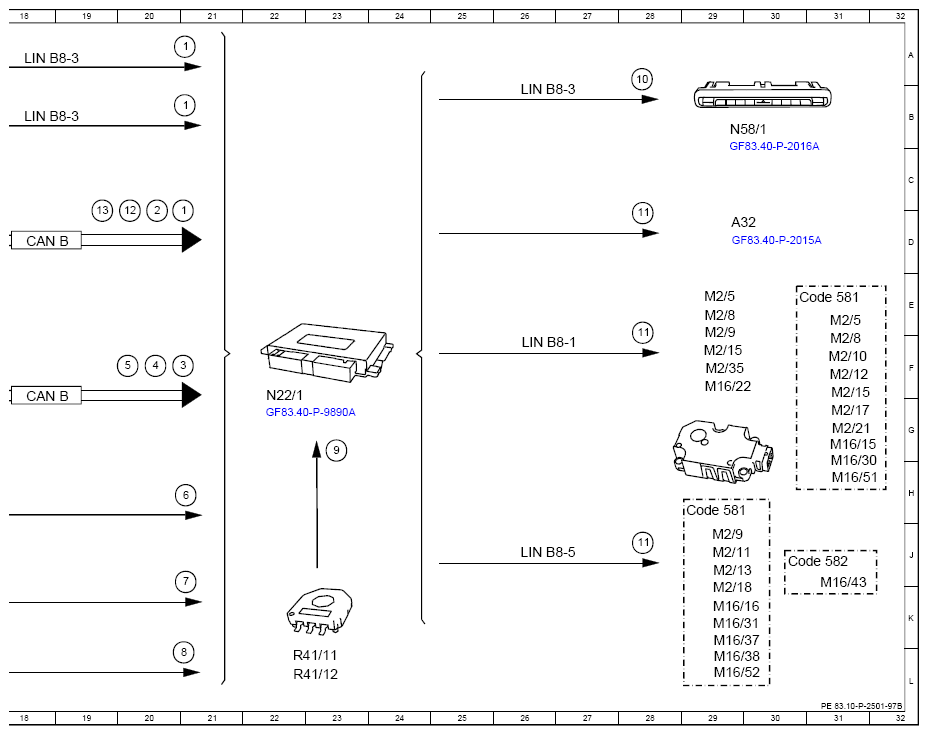

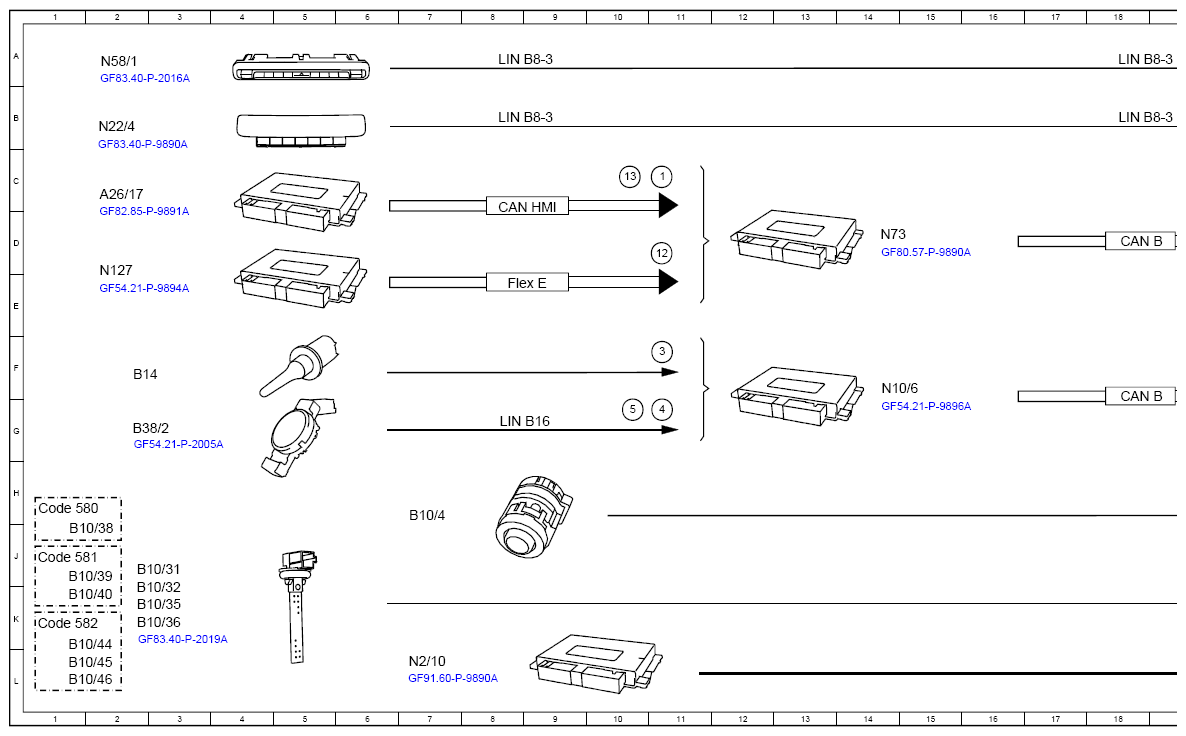

Function Schematic For Actuating Air Distribution Flaps - PE83.10-P-2501-97B
Model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 21C |
| 1 | Operation, signal | 11C |
| 1 | Operation, signal | 21A |
| 1 | Operation, signal | 21B |
| 10 | Air conditioning, status | 28A |
| 11 | Actuator motors, actuation | 28C |
| 11 | Actuator motors, actuation | 28E |
| 11 | Actuator motors, actuation | 28J |
| 12 | Battery thermal runaway, request | 11D |
| 12 | Battery thermal runaway, request | 20D |
| 13 | Washing facility function, request | 10C |
| 13 | Washing facility function, request | 19D |
| 2 | Circuit 15, status | 20D |
| 3 | Outside temperature sensor, signal | 21F |
| 3 | Outside temperature sensor, signal | 11F |
| 4 | Dew point temperature, signal | 11G |
| 4 | Dew point temperature, signal | 20F |
| 5 | Solar radiation, signal | 20F |
| 5 | Solar radiation, signal | 10G |
| 6 | Interior temperature sensor, signal | 21H |
| 7 | Air outlet temperature sensor, signal | 21J |
| 8 | Crash, signal | 8L |
| 9 | Potentiometer, signal | 23G |
| A26/17 | Head unit | 2C |
| A32 | AC housing | 29D |
| B10/31 | Left side air vent air outlet temperature sensor | 2J |
| B10/32 | Right side air vent air outlet temperature sensor | 2K |
| B10/35 | Left footwell vent air outlet temperature sensor | 2K |
| B10/36 | Right footwell vent air outlet temperature sensor | 2K |
| B10/38 | Rear passenger compartment footwell vent air outlet temperature sensor | 1J |
| B10/39 | Left rear air vent air outlet temperature sensor | 1J |
| B10/4 | Interior temperature sensor | 7H |
| B10/40 | Right rear air vent air outlet temperature sensor | 1K |
| B10/44 | Left rear footwell A/C temperature sensor | 1K |
| B10/45 | Right rear footwell A/C temperature sensor | 1L |
| B10/46 | Rear head area A/C temperature sensor | 1L |
| B14 | Outside temperature sensor | 2F |
| B38/2 | Rain/light sensor with additional functions | 2G |
| CAN B | Interior CAN | 18D |
| CAN B | Interior CAN | 18G |
| CAN HMI | User interface CAN | 8D |
| Code 580 | Air conditioning | 1H |
| Code 581 | Automatic climate control | 1J |
| Code 581 | Automatic climate control | 30E |
| Code 581 | Automatic climate control | 29H |
| Code 582 | Air conditioning in rear | 1K |
| Code 582 | Air conditioning in rear | 30J |
| Flex E | Chassis FlexRay | 8E |
| LIN B16 | Rain and light sensor LIN | 8G |
| LIN B8-1 | LIN 1 for climate control system | 26F |
| LIN B8-3 | LIN 3 for climate control system | 18A |
| LIN B8-3 | LIN 3 for climate control system | 26B |
| LIN B8-3 | LIN 3 for climate control system | 8A |
| LIN B8-3 | LIN 3 for climate control system | 8B |
| LIN B8-3 | LIN 3 for climate control system | 18B |
| LIN B8-5 | LIN 5 for climate control system | 26J |
| M16/15 | Left rear footwell flap actuator motor | 31G |
| M16/16 | Right rear footwell flap actuator motor | 29K |
| M16/22 | Air distribution flap actuator motor | 29F |
| M16/30 | Left rear blending air flap actuator motor | 31H |
| M16/31 | Right rear blending air flap actuator motor | 29K |
| M16/37 | Left B-pillar air flap open/close actuator motor | 29K |
| M16/38 | Right B-pillar air flap open/close actuator motor | 29L |
| M16/43 | 3rd seat row air distribution actuator motor | 31K |
| M16/51 | Left rear center air outlet actuator motor | 31H |
| M16/52 | Right rear center air outlet actuator motor | 29L |
| M2/10 | Left footwell flap actuator motor | 31F |
| M2/11 | Right footwell flap actuator motor | 29J |
| M2/12 | Left center air outlet flap actuator motor | 31F |
| M2/13 | Right center air outlet flap actuator motor | 29J |
| M2/15 | Defroster vent flap actuator motor | 29F |
| M2/15 | Defroster vent flap actuator motor | 31F |
| M2/17 | Left side outlet flap actuator motor | 31G |
| M2/18 | Right side outlet flap actuator motor | 29K |
| M2/21 | Diffuse flap actuator motor | 31G |
| M2/35 | Rear blend air flap actuator motor | 29F |
| M2/5 | Fresh air/air recirculation flap actuator motor | 29E |
| M2/5 | Fresh air/air recirculation flap actuator motor | 31E |
| M2/8 | Left blending air flap actuator | 29E |
| M2/8 | Left blending air flap actuator | 31F |
| M2/9 | Right blending air flap actuator | 29F |
| M2/9 | Right blending air flap actuator | 29J |
| N10/6 | Front central control unit | 14F |
| N127 | Drivetrain control unit | 2E |
| N2/10 | Supplemental restraint system control unit | 7L |
| N22/1 | Climate control control unit | 22G |
| N22/4 | Rear air conditioning operating unit | 2B |
| N58/1 | Climate control operating unit | 29B |
| N58/1 | Climate control operating unit | 2A |
| N73 | Electronic ignition switch control unit | 14D |
| R41/11 | Left B-pillar side air vent potentiometer | 22L |
| R41/12 | Right B-pillar side air vent potentiometer | 22L |
