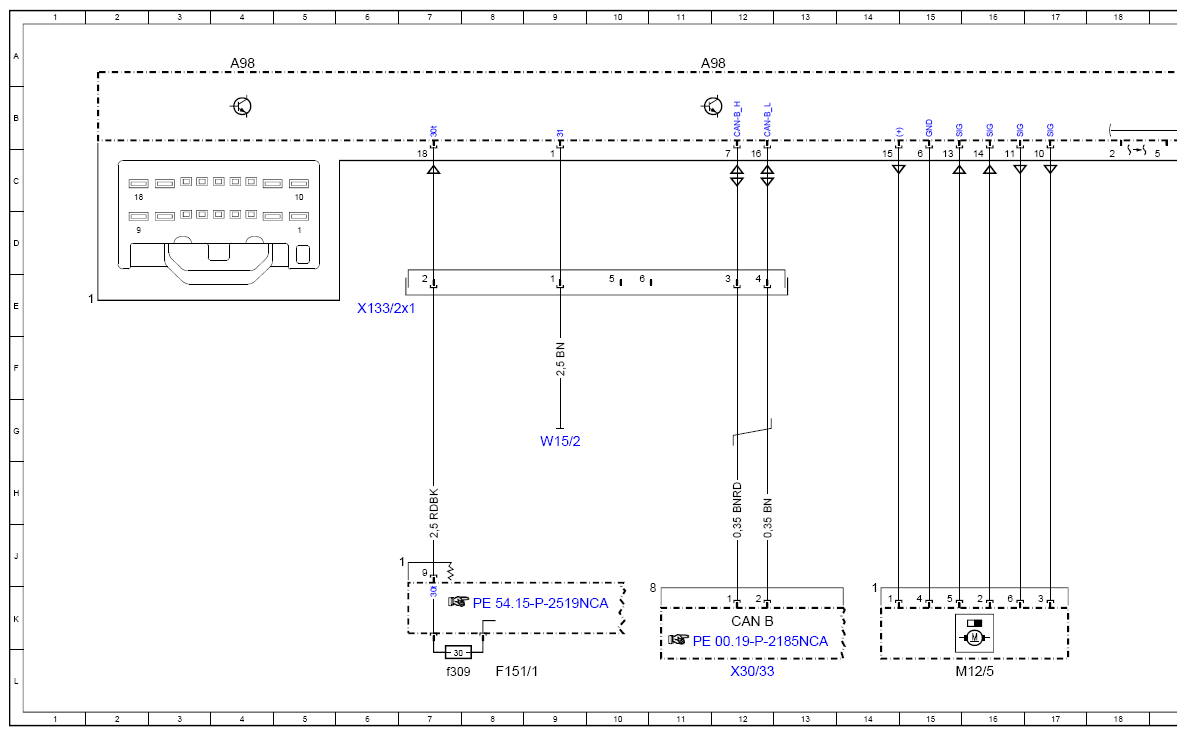

Wiring Diagram For Panoramic Sliding Sunroof Control Module - PE77.20-P-2104-97NCA
Model 167 With Code 413 (Automatic panoramic sliding sunroof) Control moduleA98
| Code: | Designation: | Position: |
|---|---|---|

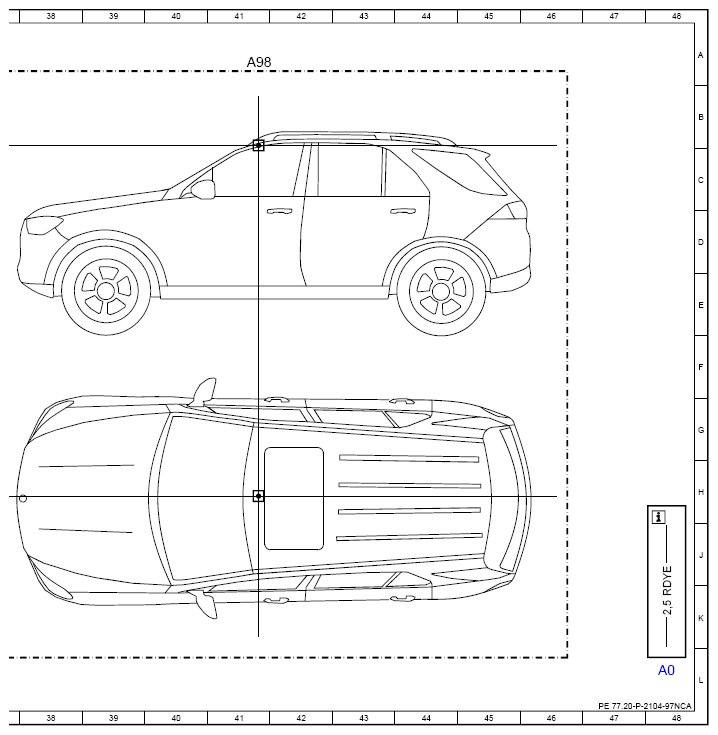

| A0 | Use of wiring diagrams | 48L |

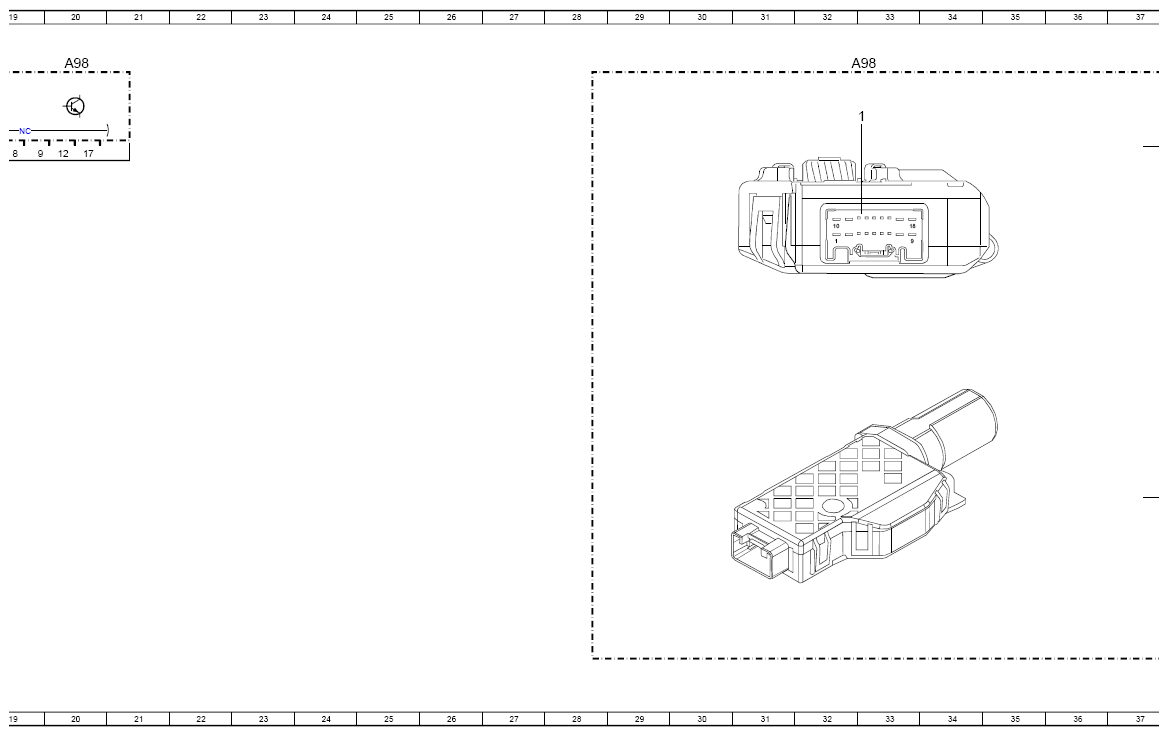

| A98 | Panoramic sliding sunroof control module | 4A |
| A98 | Panoramic sliding sunroof control module | 33A |
| A98 | Panoramic sliding sunroof control module | 41A |
| A98 | Panoramic sliding sunroof control module | 11A |
| A98 | Panoramic sliding sunroof control module | 20A |
| CAN B | Interior CAN | 12K |
| F151/1 | 8L | |
| F151/1f309 | Fuse 309 | 7L |
| M12/5 | Panoramic sliding roof Roller sun blind drive unit | 16L |
| W15/2 | Left footwell ground point | 9G |
| X133/2x1 | Sliding roof electrical connector | 6E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
