Remove/Install Panoramic Sliding Roof Drive Unit - AR77.21-P-1000MEC
Model 167.3
With Code 413 (Panoramic sliding sunroof/glass roof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove roof lining and place in vehicle. | AR68.30-P-4300MEC | |

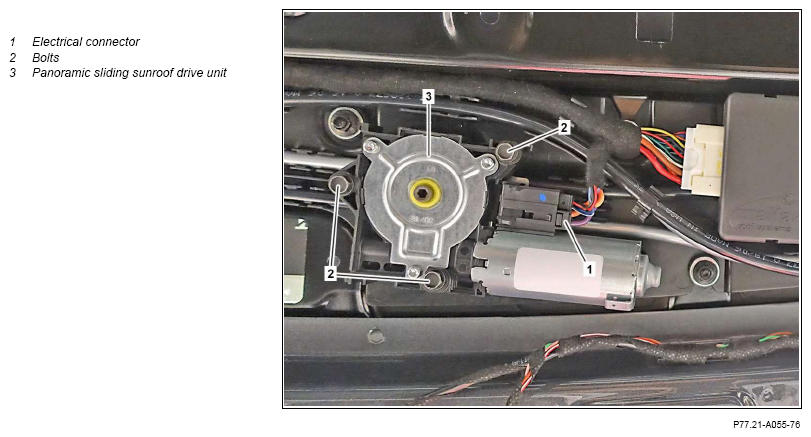

| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew bolts (2) and remove panoramic sliding sunroof drive unit (3). | ||
| 4 | Install in the reverse order. | ||
| Normalizing | |||
| 5 | Normalize panoramic sliding sunroof with diagnostic system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06ME |
