Remove/Install Trim At C-Pillar - AR68.30-P-4490ME

Model 167.1

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove corresponding side trim in trunk.		AR68.30-P-4800ME

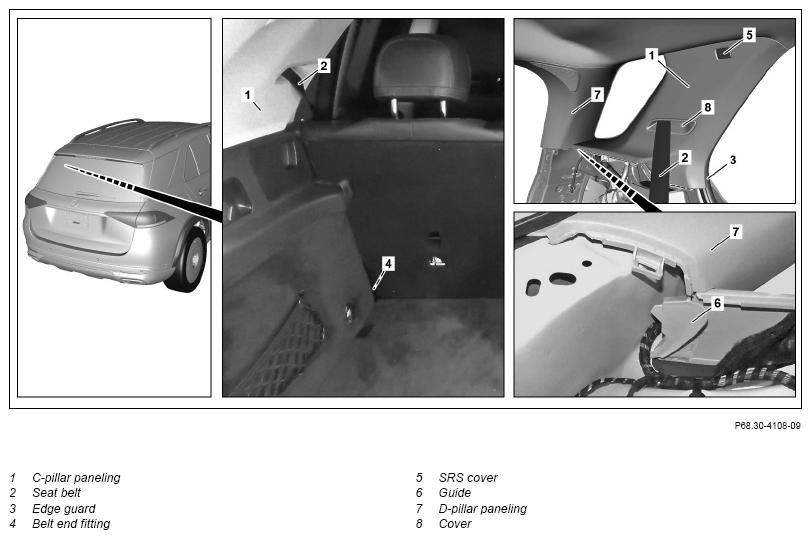

2	Remove seat belt end fitting (4).	Bolt, rear belt end fitting	*BA91.40-P-1005-01U
3	Remove edge guard (3) in area of C-pillar trim	Ensure that edge guard (3) is seated correctly.
4	Remove SRS cover (5).
5	Detach C-pillar trim (1) from C-pillar and D-pillar trim (7), slightly tilt toward vehicle center, and move out toward front.	Carefully remove C-pillar trim (1). Otherwise roof paneling can be damaged. The guide (6) of the C-pillar trim (1) must retract into the D-pillar trim (7) correctly.
6	Remove cover (8) from C-pillar trim (1).
7	Guide seat belt (2) out through opening and remove C-pillar trim (1).
	Check
8	Check expansion rivets of C-pillar trim (1) for damage.	If expansion rivets of C-pillar trim (1) are damaged: ↓ Replace expansion rivets of C-pillar trim (1).
9	Install in the reverse order.

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 167
BA91.40-P-1005-01U	Bolt, rear belt end fitting	Nm	35
