(Remove/Install D-Pillar Trim - AR68.30-P-4497MEM)

Model 167.9

with code M036 (Maybach version)

Courtesy of MERCEDES-BENZ USA

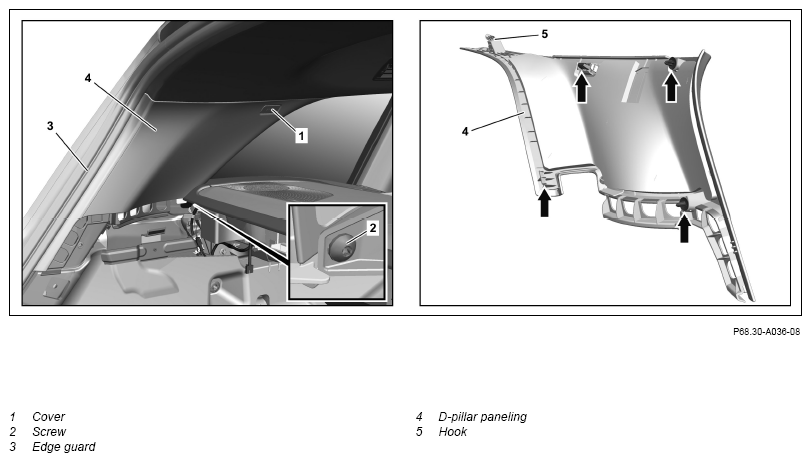

Shown on the left side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove rear shelf.		AR68.30-P-4581MEX
2	Remove cover (1).
3	Remove screw (2).
4	Release edge guard (3) in area of D-pillar trim (4).
5	Unclip D-pillar trim (4) (arrows) and remove toward rear.	Ensure hook (5) is correctly seated at top in side wall.
		Long wedge	Fig 1
6	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
