Remove/Install Front Seat Control Unit - AR91.29-P-1550ME
Model 167
MODIFICATION NOTES
| 13.12.2018 | Method adapted. | Operation step 2. | |
| 13.12.2018 | Work step inserted. | Operation step 3. |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | If the driver's seat control unit (N32/1) or the front passenger seat control unit (N32/2) is replaced. | |
| AD00.00-P-2000-06ME | |||
| 2 | Adjust corresponding front seat to its uppermost position or all the way forward so that the control unit of the driver's seat (N32/1) or control unit of front passenger seat (N32/2) is accessible. | ||
| 3 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

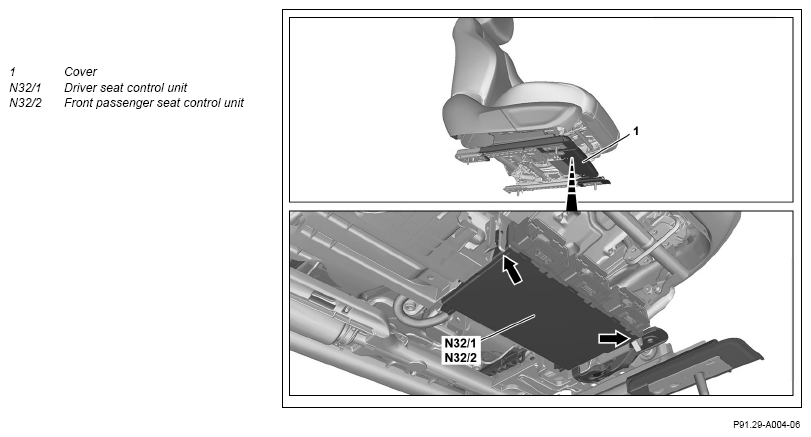

| 4 | Remove cover (1). | ||
| 5 | Release and disconnect electrical connectors at driver's seat control unit (N32/1) or front passenger seat control unit (N32/2). | ||
| 6 | Release driver's seat control unit (N32/1) or front passenger seat control unit (N32/2) (arrows) and remove. | ||
| 7 | Install in the reverse order |
