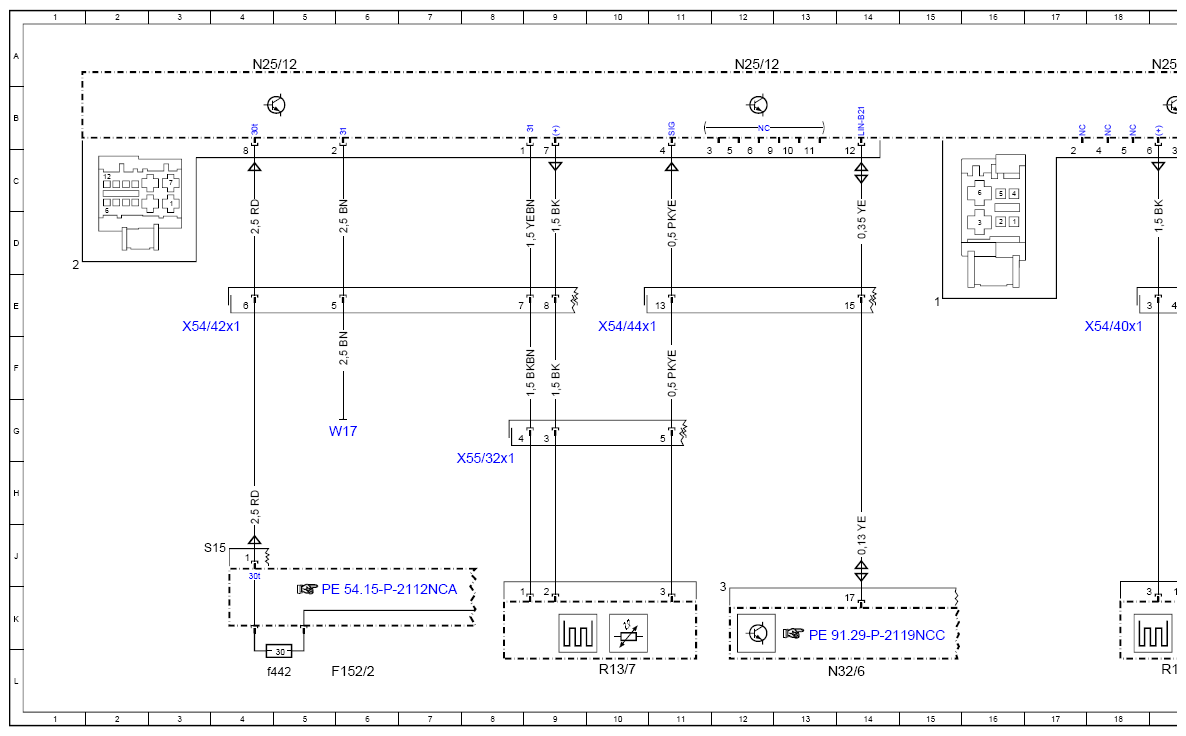

Wiring Diagram For Right Rear Seat Heater Control Unit - PE91.30-P-2108-97NCA
Model 167
with code 402 (Rear seat climate control)
with code 406 (Multicontour rear seat)
with code 903 (Rear comfort seat heating)
with code M036 (Maybach version)
Control unit N25/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| Code 406 | Multicontour seats in rear | |
| F152/2 | Rear fuse and relay module | 6L |
| F152/2f442 | Fuse 442 | 4L |

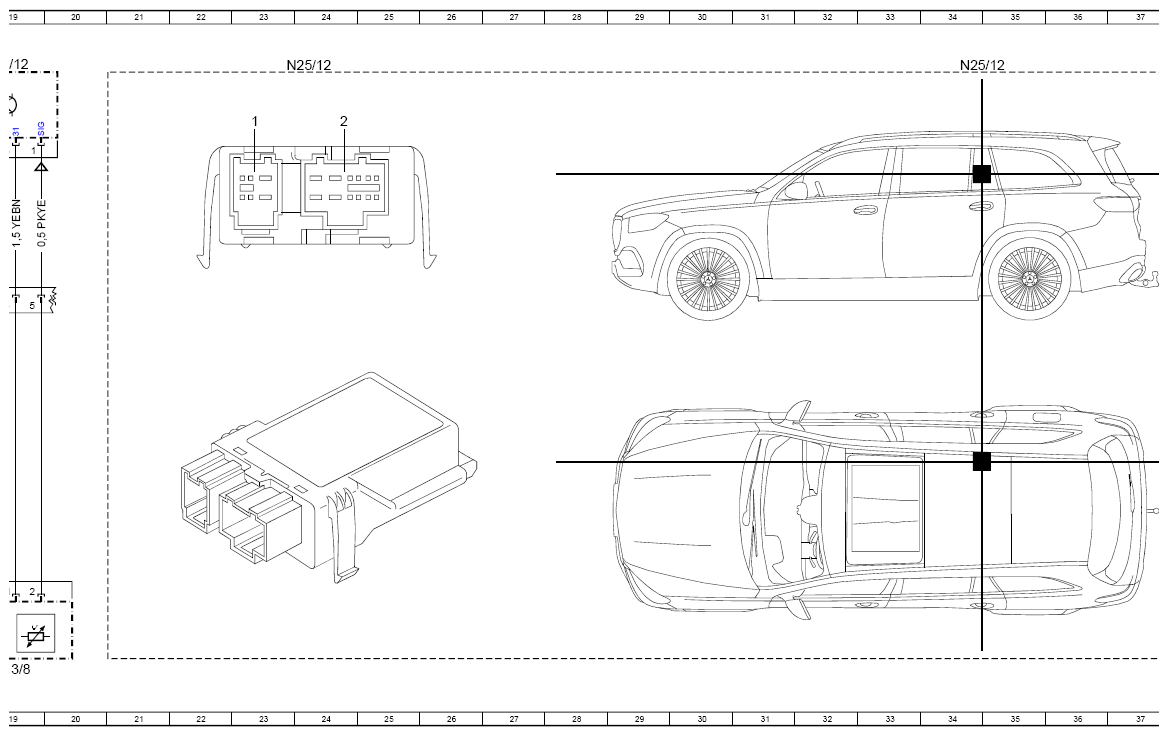

| N25/12 | Right rear seat heater control unit | 4A |
| N25/12 | Right rear seat heater control unit | 12A |
| N25/12 | Right rear seat heater control unit | 24A |
| N25/12 | Right rear seat heater control unit | 34A |
| N25/12 | Right rear seat heater control unit | 19A |
| N32/6 | Right rear seat control unit | 14L |
| R13/7 | Right rear seat sitting surface heated cushion | 10L |
| R13/8 | Right rear backrest heater pad | 19L |
| W17 | Right rear seat ground point | 6G |
| X54/40x1 | Right rear backrest heater pad electrical connector | 18E |
| X54/42x1 | Underbody interior wiring harness/right rear seat backrest electrical connector | 4E |
| X54/44x1 | Underbody interior wiring harness/right rear seat backrest electrical connector | 10E |
| X55/32x1 | Right rear seat sitting surface heater pad electrical connector | 8H |
