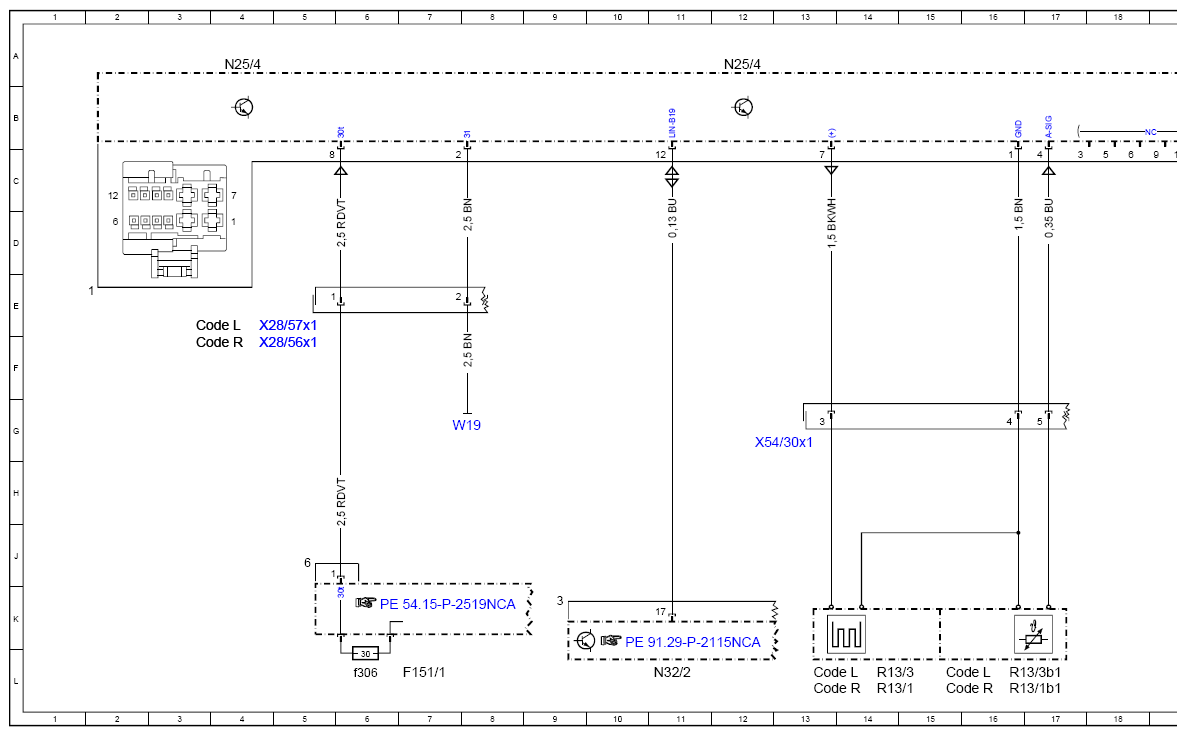

Wiring Diagram For Front Passenger Seat Heater Control Unit - PE91.30-P-2106-97NCA
Model 167 with code 902 (Seat heater Plus for driver and front passenger) Control unit N25/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| Code L | LEFT-HAND DRIVE | 13L |
| Code L | LEFT-HAND DRIVE | 15L |
| Code L | LEFT-HAND DRIVE | 23L |
| Code L | LEFT-HAND DRIVE | 25L |
| Code L | LEFT-HAND DRIVE | 38H |
| Code L | LEFT-HAND DRIVE | 3E |
| Code R | RIGHT-HAND DRIVE | 13L |
| Code R | RIGHT-HAND DRIVE | 15L |
| Code R | RIGHT-HAND DRIVE | 23L |
| Code R | RIGHT-HAND DRIVE | 25L |
| Code R | RIGHT-HAND DRIVE | 38J |
| Code R | RIGHT-HAND DRIVE | 3F |
| F151/1 | Passenger-side A-pillar fuse box | 7L |
| F151/1f306 | Fuse 306 | 6L |

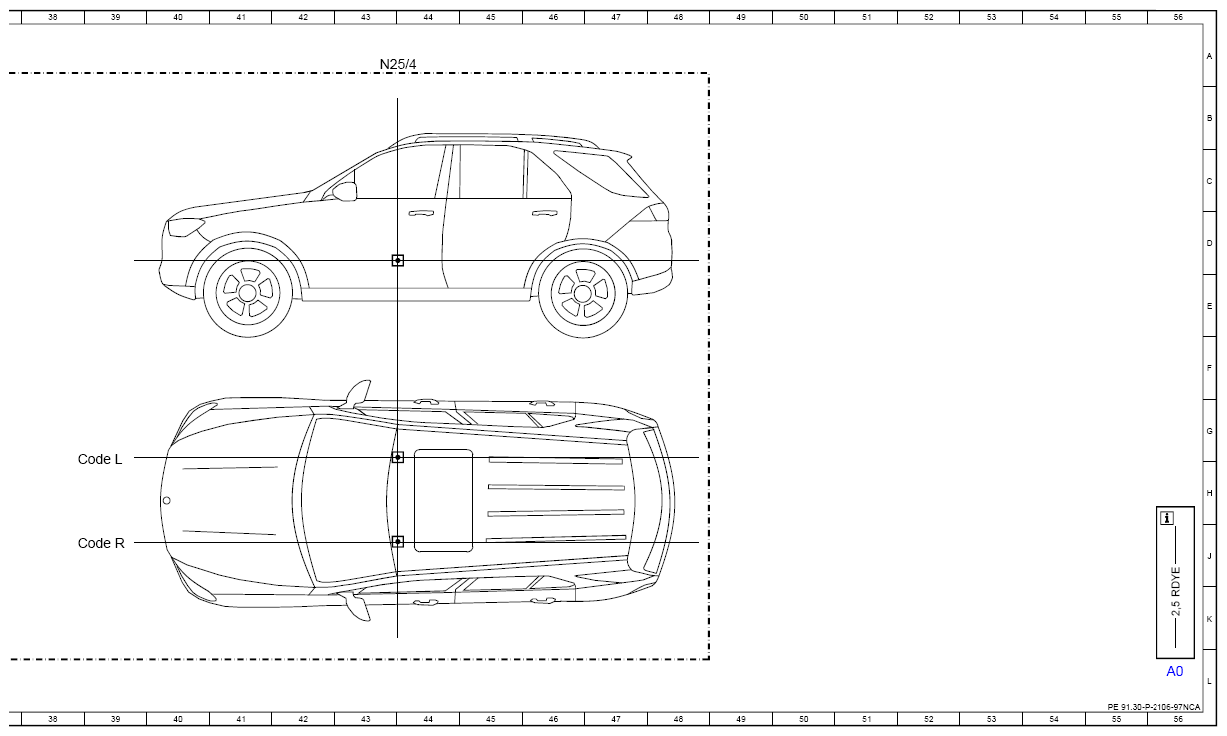

| N25/4 | Front passenger seat heater control unit | 4A |
| N25/4 | Front passenger seat heater control unit | 12A |
| N25/4 | Front passenger seat heater control unit | 20A |
| N25/4 | Front passenger seat heater control unit | 28A |
| N25/4 | Front passenger seat heater control unit | 43A |
| N25/4 | Front passenger seat heater control unit | 35A |
| N32/2 | Front passenger seat control unit | 11L |
| R13/1 | Left front seat cushion heater pad | 14L |
| R13/1b1 | Left front seat sitting surface heater pad temperature sensor | 16L |
| R13/2 | Left front seat backrest heater pad | 24L |
| R13/2b1 | Left front seat backrest heater pad temperature sensor | 26L |
| R13/3 | Right front seat cushion heater pad | 14L |
| R13/3b1 | Right front seat sitting surface heater pad temperature sensor | 16L |
| R13/4 | Right front seat backrest heater pad | 24L |
| R13/4b1 | Right front seat backrest heater pad temperature sensor | 26L |
| W19 | Right front seat crossmember ground point | 7G |
| X28/56x1 | Driver seat electrical connector | 4F |
| X28/57x1 | Front passenger seat electrical connector | 4E |
| X54/30x1 | Front passenger seat heater feed electrical connector | 13G |

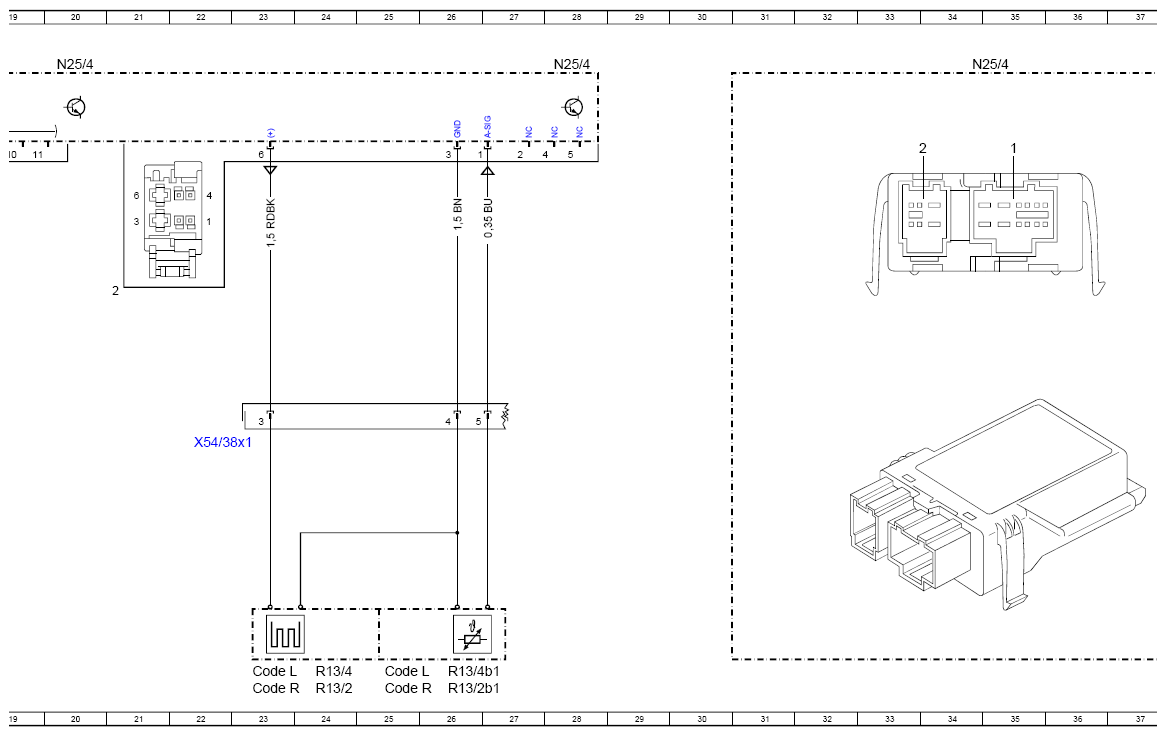

| X54/38x1 | Right front seat backrest heater pad electrical connector | 22G |
