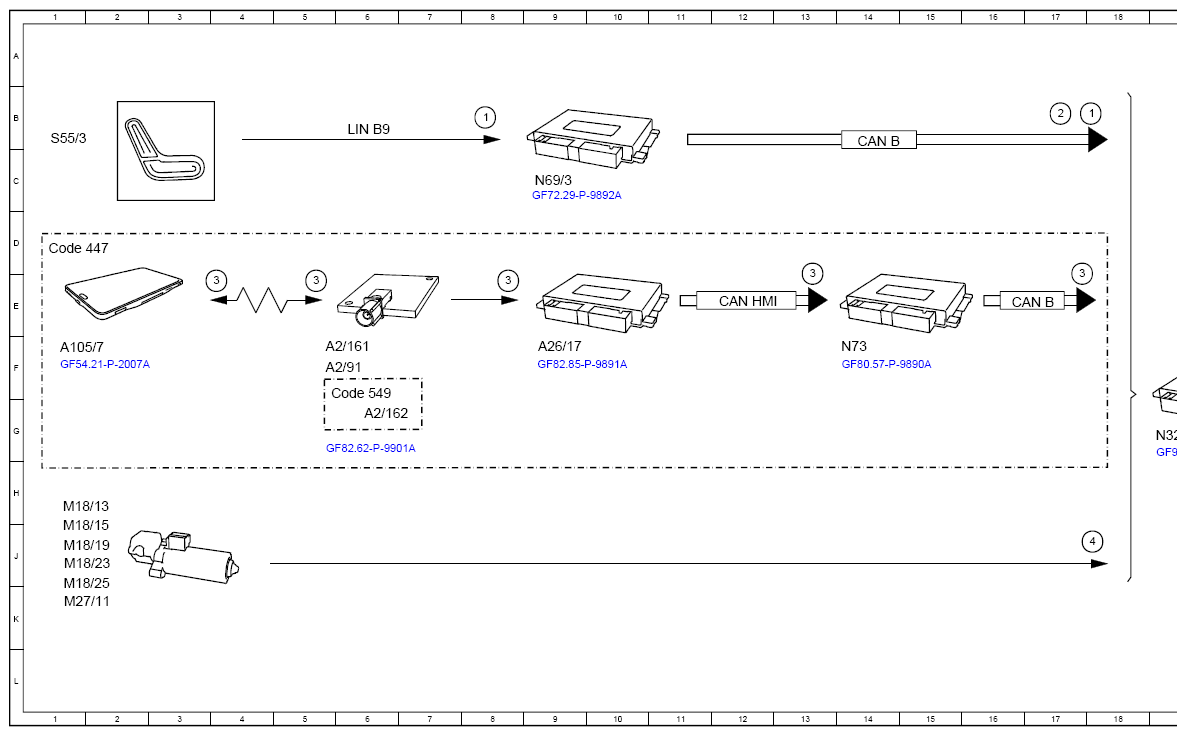

Function Schematic For Left Rear Seat Electric Seat Adjustment - PE91.29-P-2503-97B
Model 167 with code 453 (Rear reclining seat) except code 567 (Vario rear seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 18B |
| 1 | Seat adjustment switch group, status | 8B |
| 2 | Door rotary tumbler switch, status | 17B |
| 3 | Seat adjustment, request | 4D |
| 3 | Seat adjustment, request | 5D |
| 3 | Seat adjustment, request | 8D |
| 3 | Seat adjustment, request | 13D |
| 3 | Seat adjustment, request | 17D |
| 4 | Hall sensors, signal | 18J |
| 5 | Seat adjustment motor, actuation | 21F |
| A105/7 | Tablet PC | 1F |
| A2/161 | Bluetooth®/WiFi antenna 3 | 5F |
| A2/162 | Bluetooth®/WiFi antenna 1 | 6G |
| A2/91 | Bluetooth®/WiFi antenna 2 | 5F |
| A26/17 | Head unit | 9F |
| CAN B | Interior CAN | 14B |
| CAN B | Interior CAN | 17E |
| CAN HMI | User interface CAN | 12E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 1D |
| Code 549 | Connect 20 HIGH (NTG6) | 5F |
| LIN B9 | Left rear door LIN | 6B |
| M18/13 | Left 2nd seat row head restraint height adjustment motor | 1H |
| M18/13 | Left 2nd seat row head restraint height adjustment motor | 22G |
| M18/15 | Left 2nd seat row head restraint inclination adjustment motor | 1J |
| M18/15 | Left 2nd seat row head restraint inclination adjustment motor | 22H |
| M18/19 | Left 2nd seat row seat cushion inclination adjustment motor | 1J |
| M18/19 | Left 2nd seat row seat cushion inclination adjustment motor | 22H |
| M18/23 | Left rear seat leg rest inclination adjustment motor | 1J |
| M18/23 | Left rear seat leg rest inclination adjustment motor | 22H |
| M18/25 | Left rear seat leg rest fore/aft adjustment motor | 1K |
| M18/25 | Left rear seat leg rest fore/aft adjustment motor | 22H |
| M27/11 | Left rear seat backrest inclination adjustment motor | 1K |
| M27/11 | Left rear seat backrest inclination adjustment motor | 22J |
| N32/5 | Left rear seat control unit | 19G |
| N69/3 | Left rear door control unit | 9C |
| N73 | Electronic ignition switch control unit | 14F |
| S55/3 | Left 2nd seat row seat adjustment switch | 1B |
