Customer Declaration, Replacement Of Front Passenger Seat, Deactivation Of Automatic Child Seat Recognition, SBE (Seat Occupied Recognition), Sidebag, Seatbelt Warning Buzzer, Certification - OF91.00-P-1000-03AA
Model All
| Process customer request - standard Reduction in seat belt warning tone |
|||
| Customer:
Inquiry Via sales to workshop or directly to workshop |
|||
| Workshop: | - | Provide information that decisions are made on an individual case basis | |
| - | Check which version of the customer declaration "Replacement of front passenger seat" is relevant | ||
| - | Inform the customer about the risks mentioned in the relevant version of the customer declaration "Replacement of front passenger seat" | ||
| Customer and workshop: | 1st | Fill out "Facts" form | |

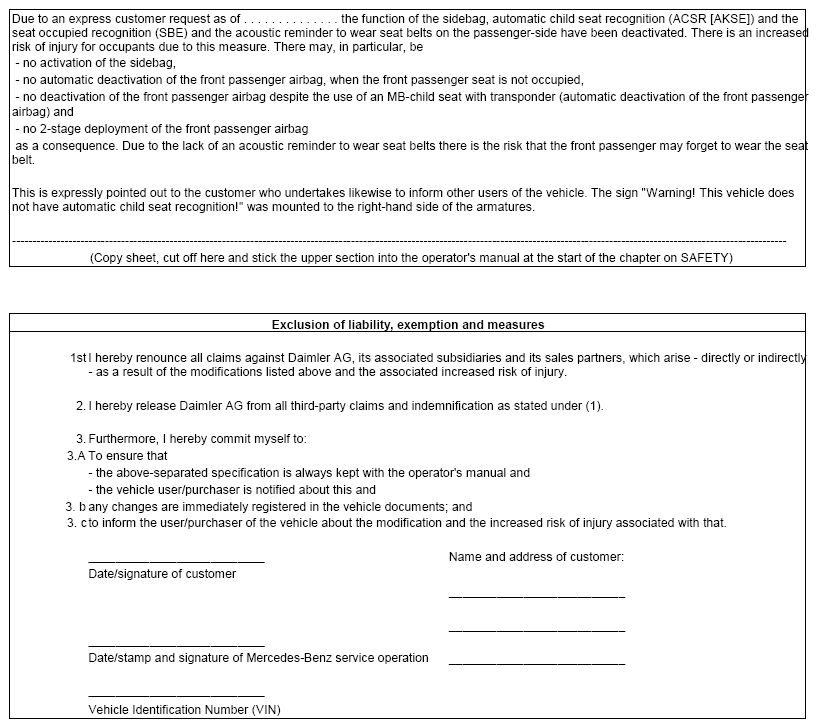

| 2. | Fill out the customer declaration "Replacement of front passenger seat" | ||
| - | Leave modification date blank (important!) | ||
| - | Signature of customer + stamp and signature of workshop | ||
| 3. | Customer identification | ||
| - | Copy of ID | ||
| - | Copy of the motor vehicle registration certificate | ||
| - | Copy of the disabled ID when seat for disabled person installed | ||
| Send filled out forms (1+2) + copies (3) per fax to decision-maker (GSP/TP). | |||
| Fax no. +49-(0) 711-30 52 18 28 09 | |||
| Decision-maker (GSP/TPx): | - | Archiving of faxed documents (1-3) | |
| - | The decision-maker informs the workshop of the codes/code as well as the part number of the adhesive label "No automatic child seat recognition" | ||
| Workshop: | - | Attach the "No ACSR" installed on passenger side of instrument panel (as for model 169) | |
| - | Decoding using code | ||
| - | Careful documentation in the FDOK [vehicle documentation system] (process + person implementing) | ||
| - | Now enter the date on the customer declaration that was previously left blank | ||
| - | Copy the customer declaration | ||
| - | Cut off and stick the upper section of the original into the operator's manual (start of the chapter on Safety) | ||
| - | Send the lower section + copy of the complete customer declaration by fax + by letter to the decision-maker (GSP/TPx) | ||
| - | Now enter into the service booklet | ||
| - | Customer's obligation : Entry in the corresponding vehicle documents (Technical Inspection Association acceptance) | ||
| - | Recommendation to the customer : Notification of the insurance company | ||
| Decision-maker (GSP/TP): | Archiving | ||
| - | the lower section of the original as well as | ||
| - | a copy of the complete customer declaration with the decision-maker | ||
