Remove/Install Seat Cushion Cover On 3rd Seat Row - AR91.18-P-0001ME

Model 167.1

With Code 847 (3rd seat row)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove rear seat of 3rd seat row.		AR91.12-P-0007ME
2	Fold over respective seat backrest.	If necessary.

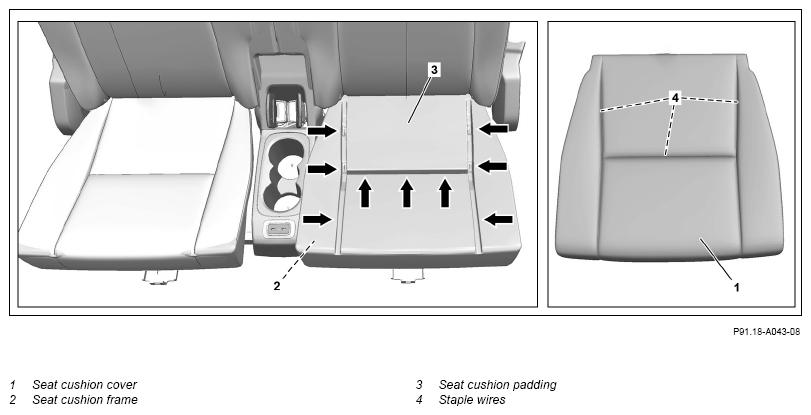

3	Detach seat cushion cover (1) from seat cushion frame (2).	Hook in seat cushion cover (1) at corners first and press down when completely hooked in.
		Dismantling tool	Fig 1
4	Remove seat cushion cover (1) together with seat cushion padding (3) from seat cushion frame (2).
5	Release seat cushion cover (1) far enough from seat cushion padding (3) until staple clips are accessible.
6	Separate staple clips at attachment points (arrows) and remove remaining pieces from seat cushion padding (3).	Carefully remove the remaining pieces of staple clips. Otherwise, the seat cushion padding (3) and the seat cushion cover (1) will be damaged. Remove creases and smooth out seat cushion cover (1).
		Padding clip pliers	Fig 2
7	Remove seat cushion cover (1) from seat cushion padding (3).	Align the seat cushion cover (1) over the seat cushion padding (3) so that the seams locate in the cutouts of the seat cushion padding (3).
8	Remove staple wires (4) from seat cushion cover (1).	When replacing seat cushion cover (1).
9	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (205 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
