Remove/Install Seat Cushion - AR91.10-P-3310ME
Model 167
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left or right front seat. | AR91.10-P-1000ME | |
| 2 | Place left or right front seat onto suitable base | ||
| 3 | Remove fire extinguisher. | Model 167 with code 682 (Fire extinguisher) |
|
| 4 | Remove panels from front seat frame. | AR91.10-P-1200ME | |

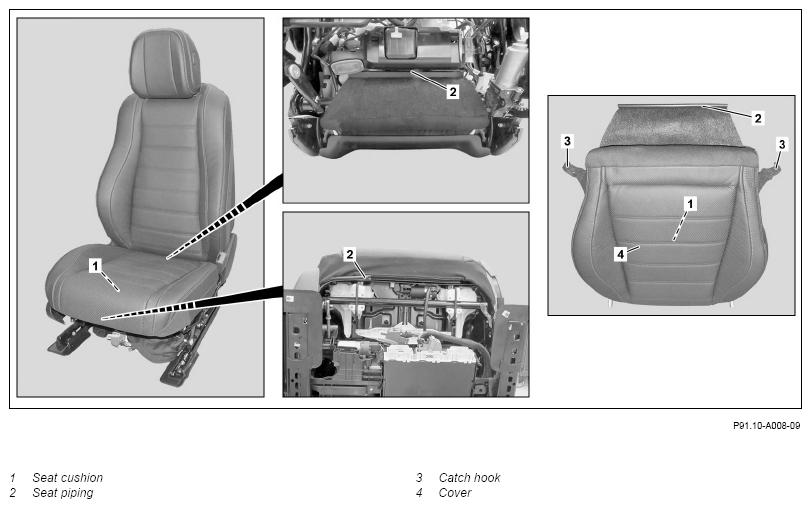

| 5 | Unhook seat piping (2) all the way round on seat cushion (1). | Fig 2 | |
| 6 | Unhook both catch hooks (3) on seat frame base.... | ||
| 7 | Release electric line, then release and disconnect electrical connector. | ||
| 8 | Remove electrical plug from seat frame base | ||
| 9 | Release and disconnect pneumatic line. | If installed. Do not crush or kink pneumatic line. This will damage the pneumatic line and impair its functional capability. |
|
| 10 | Remove seat cushion (1). | ||
| 11 | Install in the reverse order | ||
| Concluding tasks | |||
| 12.1 | Perform commissioning of Weight Sensing System (WSS) control unit (N110). | Model 167 with code U10 (Automatic seat occupancy recognition and child seat recognition) If the seat cushion (1) on the front passenger side was removed. |
|
| AD00.00-P-2000-06ME | |||
| Fig 1 | |||
| 12.2 | Commission seat belt reminder sensor | Model 167 except code U10 (Automatic seat occupancy recognition and child seat recognition) If the seat cushion (1) on the front passenger side was removed. |
|
| AD00.00-P-2000-06ME |
