Remove/Install Seat Belt Buckle For Rear Seat In 3rd Seat Row - AR91.40-P-0006ME

Model 167.1

With Code 847 (3rd seat row)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove center console of 3rd seat row.		AR68.20-P-2021ME

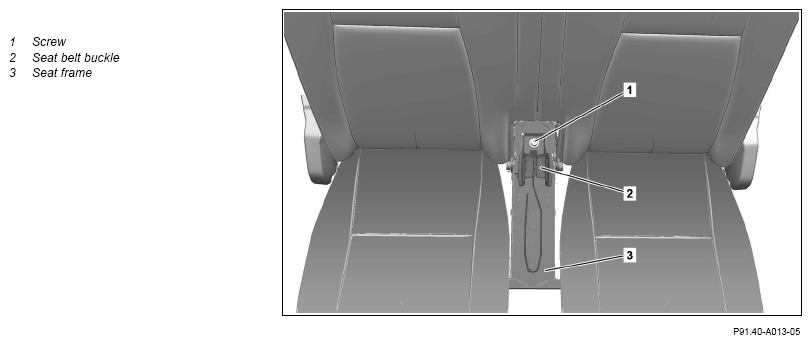

2	Remove screw/bolt (1).	Screw, 3rd seat row seat belt end fitting/seat belt buckle screw to body/seat frame base	*BA91.40-P-1014-01U
3	Remove seat belt buckle (2) from seat frame base (3).
4	Install in the reverse order.

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 167
BA91.40-P-1014-01U	Screw, 3rd seat row seat belt end fitting/seat belt buckle screw to body/seat frame base	Nm	35
