Remove/Install Seat Backrest Cover On 3rd Seat Row - AR91.18-P-0002ME
Model 167.1 With Code 847 (3rd seat row)
| Remove/install | |||
| 1 | Remove center console of 3rd seat row. | AR68.20-P-2021ME | |
| 2 | Fold over respective seat backrest. | If necessary. | |

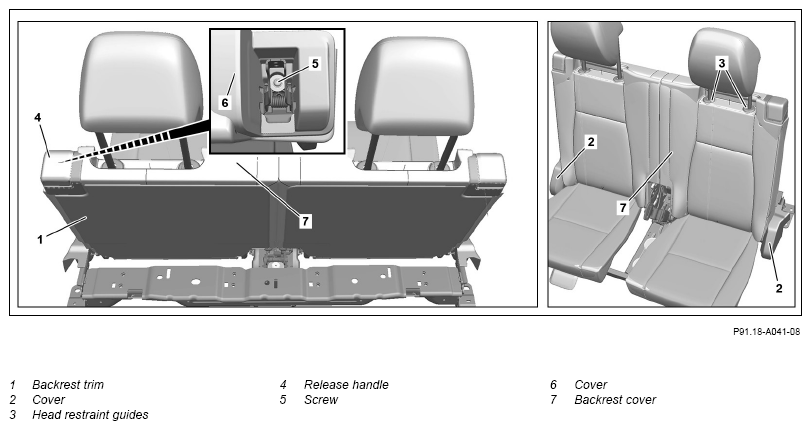

| 3 | Remove seat backrest trim (1). | Fig 1 | |
| 4 | Remove cover (2). | ||
| 5 | Remove head restraint guides (3). | AR91.16-P-0006ME | |
| 6 | Pull release handle (4) upwards and remove bolt (5). | ||
| 7 | Remove cover (6). | ||
| 8 | Detach seat backrest cover (7) from seat backrest frame. | ||

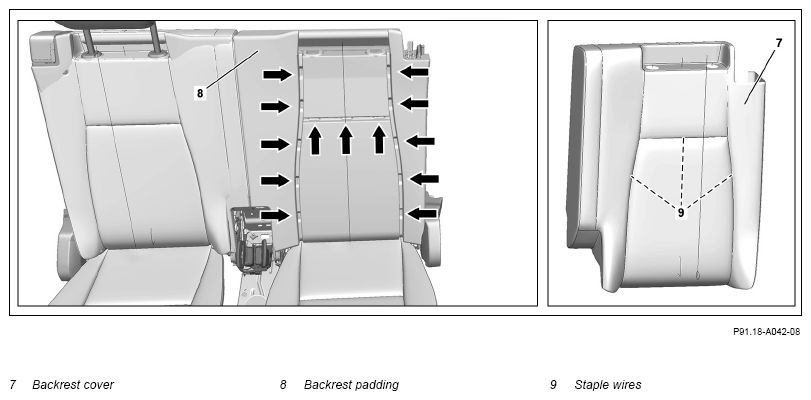

| Fig 1 | |||
| 9 | Remove seat backrest cover (7) together with seat backrest padding (8) from seat backrest frame. | ||
| 10 | Release seat backrest cover (7) far enough from seat backrest padding (8) until staple clips are accessible. | ||
| 11 | Separate staple clips at attachment points (arrows) and remove remaining pieces from seat backrest padding (8). | Carefully remove the remaining pieces of staple clips. Otherwise, the seat backrest padding (8) and the seat backrest cover (7) will be damaged. |
|
| Fig 2 | |||
| 12 | Remove seat backrest cover (7) from seat backrest padding (8). | ||
| 13 | Remove staple wires (9) from seat backrest cover (7). | When replacing seat backrest cover (7). | |
| 14 | Install in the reverse order. |
