(Remove/Install Rear Seat Cushion Cover - AR91.18-P-1851MEM)
Model 167.9
With Code M036 (Maybach version)
MODIFICATION NOTES
| 04.03.2020 | Dismantling tool (205 589 02 63 00) added. | Step 4 | |
| 04.03.2020 | Method revised. | Operation steps 3 to 8 |
Shown on left seat cushion
Shown on left seat cushion
| Remove/install | |||
| 1 | Remove rear seat cushion. | AR91.12-P-1021MEM | |

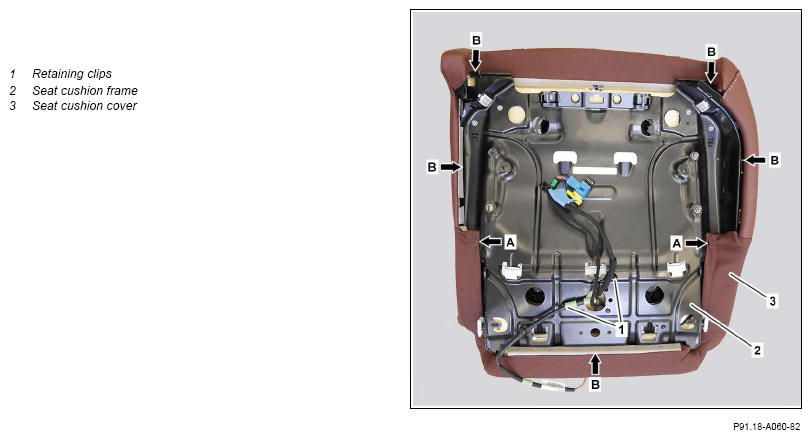

| 2 | Unclip retaining clips (1) from seat cushion frame (2). | ||
| 3 | Unhook fabric tabs (arrows A) of seat cushion cover (3) from seat cushion frame (2). | ||
| 4 | Unhook seat cushion cover (3) from seat cushion frame (2) (arrows B). | Fig 1 | |
| 5 | Remove seat cushion cover (3) together with seat cushion padding (4) and guide electric lines out through seat cushion frame (2) while doing so. | ||

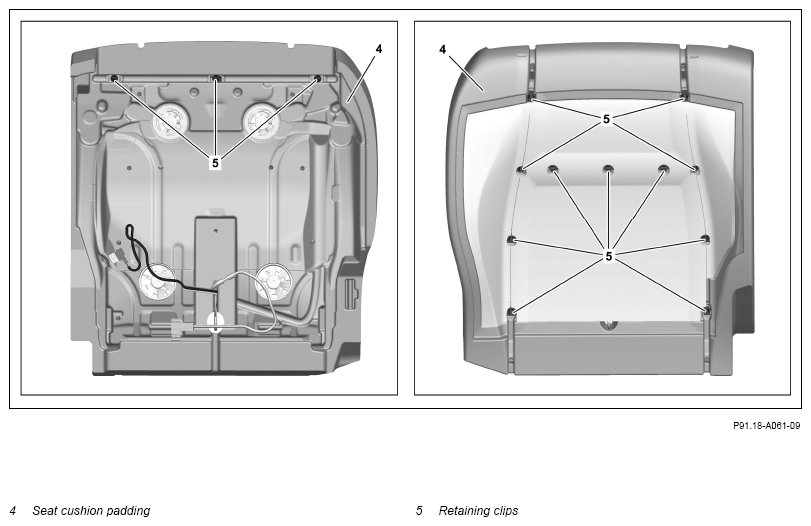

| 6 | Unhook staple wires of seat cushion cover (3) on underside of seat cushion padding (4) from retaining clips (5). | Do not damage retaining clips (5). Otherwise, the seat cushion padding (4) must be replaced. |
|
| Fig 2 | |||
| 7 | Pull seat cushion cover (3) over seat cushion padding (4). | ||
| 8 | Unhook staple wires of seat cushion cover (3) on seat surface side of seat cushion padding (4) from retaining clips (5). | Do not damage retaining clips (5). Otherwise, the seat cushion padding (4) must be replaced. |
|
| Fig 2 | |||
| 9 | Remove seat cushion cover (3) from seat cushion padding (4). | ||
| 10 | Pull staple wires out of fabric pockets of seat cushion cover (3). | When replacing the seat cushion cover (3). Ensure that the staple wires are seated correctly in the fabric pockets. |
|
| 11 | Install in the reverse order. |
