Remove/Install Rear Bench Seat Cushion Length Adjustment Motor - AR91.29-P-1453MEB
Model 167.1
With Code 567 (Vario rear seat)

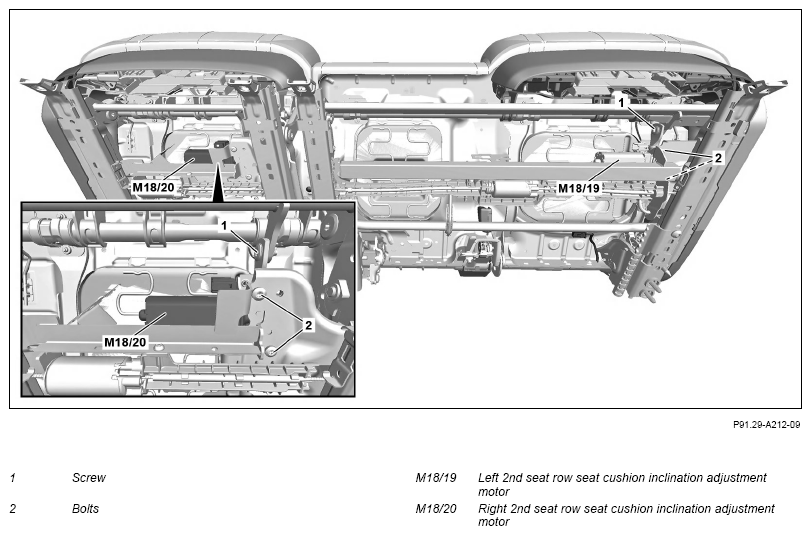

Fig 1: Rear Bench Seat Cushion Length Adjustment Motor Components Location - Model 167.1 With Code 567
| Remove/install | |||
| 1 | Remove left or right bench seat in rear passenger compartment. | AR91.12-P-4026ME | |
| 2 | Place left or right bench seat on suitable base. | ||
| 3 | Release and disconnect electrical connector o inclination adjustment seat adjustment motor for left 2nd seat row seat cushion (M18/19) or inclination adjustment seat adjustment motor for right 2nd seat row seat cushion (M18/20). | ||
| 4 | Remove screw (1). | *BA00.10-P-1004-04A | |
| 5 | Remove screw/bolts (2). | *BA00.10-P-1002-04A | |
| 6 | Remove inclination adjustment seat adjustment motor for left 2nd seat row seat cushion (M18/19) or inclination adjustment seat adjustment motor for right 2nd seat row seat cushion (M18/20). | ||
| 7 | Install in the reverse order. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1004-04A | M8X1 | Nm | 23 | 33 |
