Remove/Install Head Restraint On 3rd Seat Row - AR91.16-P-0005ME
Model 167.1 With Code 847 (3rd seat row)
Courtesy of MERCEDES-BENZ USA
Remove/install
1

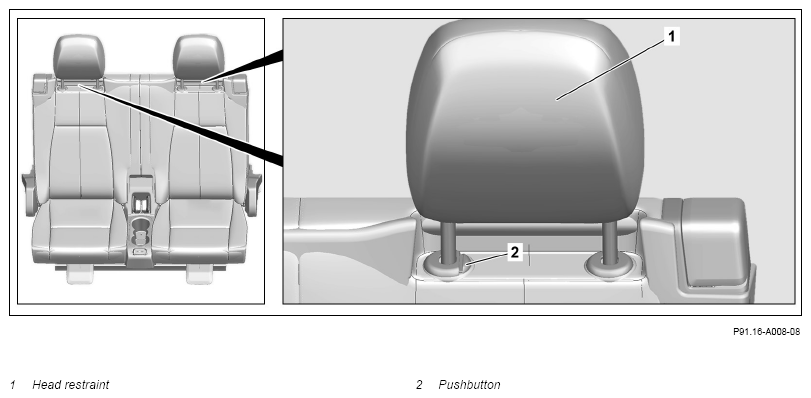

Move head restraint (1) to top position.
2
Press pushbutton switch (2) on head restraint guide and remove head restraint (1) upwards.
3
Install in the reverse order.
