Remove/Install Front Seat Side Airbag Unit - AR91.60-P-0695ME
Model 167
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove corresponding seat backrest trim. | AR91.10-P-1912ME | |
| 2 | Disconnect the ground line for the on-board electrical system battery (G1). | AR54.10-P-0003ME | |

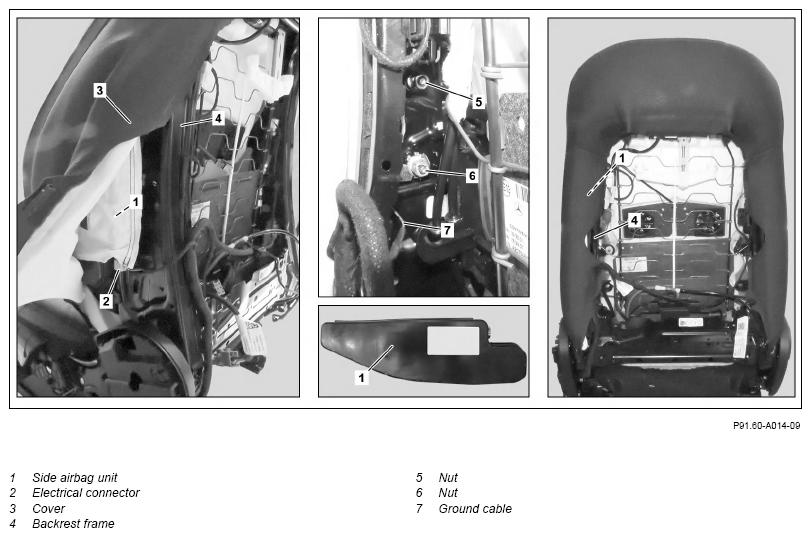

| 3 | Unhook cover (3) on seat backrest frame (4) far enough until sidebag unit (1) is accessible. | ||
| 4 | Release and disconnect electrical connector (2) at sidebag unit (1). | ||
| Fig 2 | |||
| 5 | Remove nut (5). | *BA91.60-P-1009-01R | |
| 6 | Remove nut (6) and remove with ground line (7). | ||
| *BA91.60-P-1009-01R | |||
| 7 | Remove sidebag unit (1) from seat backrest frame (4). | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06ME |
AIRBAG
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.60-P-1009-01R | Nut, sidebag unit to backrest frame | Nm | 7 |
