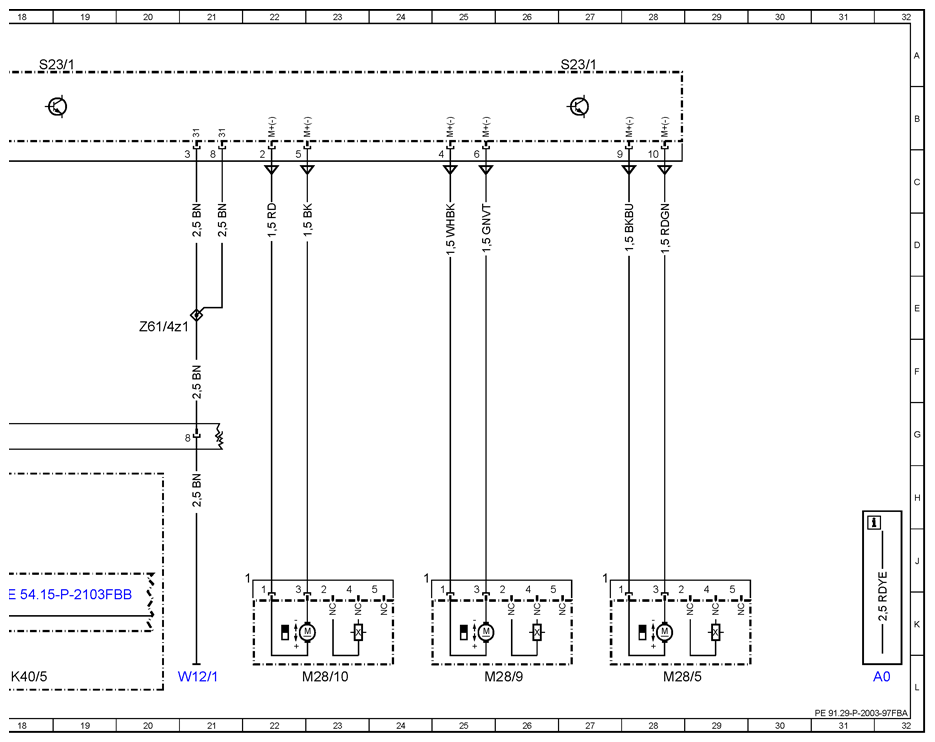

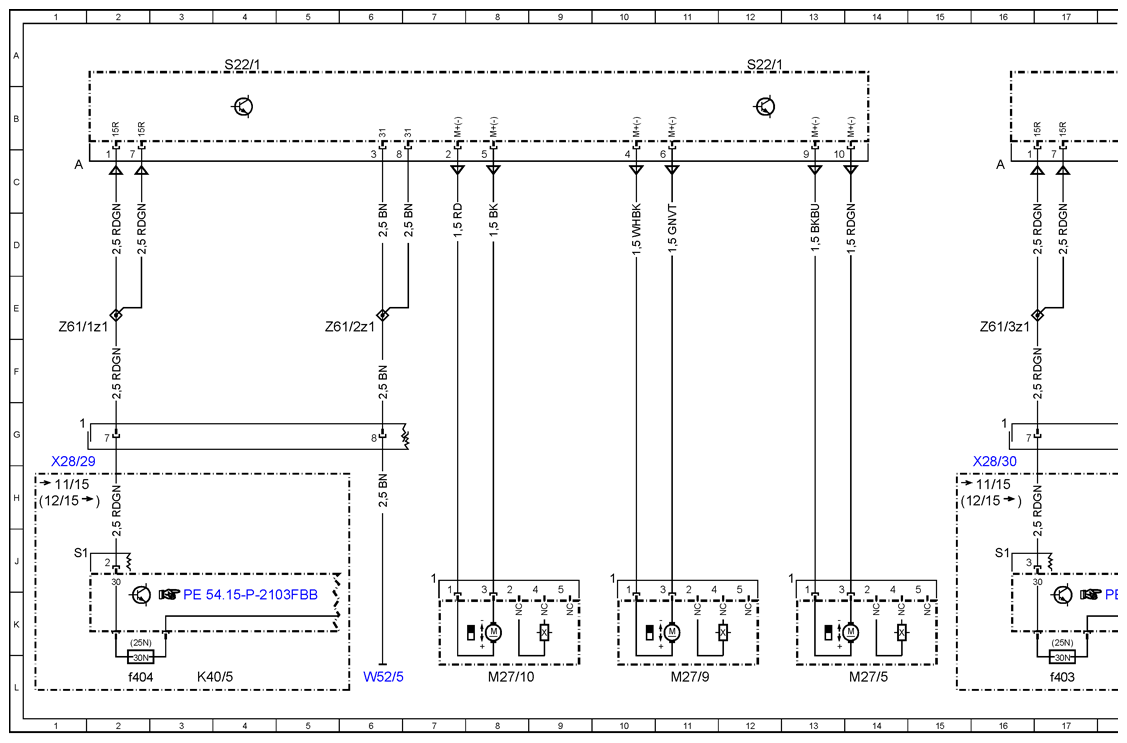

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97FBA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 with code P65 (Seat comfort package) Model 253 (except 253.99) up to model year 2020 with code P65 (Seat comfort package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5 | Rear fuse and relay module | 18L |
| K40/5f403 | Fuse 403 | 17L |
| K40/5f404 | Fuse 404 | 2L |
| M27/10 | Driver seat height adjustment motor | 8L |
| M27/5 | Driver seat backrest inclination adjustment motor | 14L |
| M27/9 | Seat inclination adjustment motor, driver seat | 11L |
| M28/10 | Front passenger seat height adjustment motor | 23L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 28L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 25L |
| S22/1 | Driver seat partially electric seat adjustment switch | 4A |
| S22/1 | Driver seat partially electric seat adjustment switch | 12A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 18A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 27A |
| W12/1 | Right center console ground point | 21L |
| W52/5 | Left center longitudinal member ground point | 6L |
| X28/29 | Driver airbag electrical connector | 1H |
| X28/30 | Front passenger airbag electrical connector | 16H |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 1E |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 6E |
| Z61/3z1 | Right front seat circuit 30 connector sleeve | 16E |
| Z61/4z1 | Right front seat circuit 31 connector sleeve | 20E |
