Special Signal System Wiring Diagram - PE82.25-P-2200-97FBA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

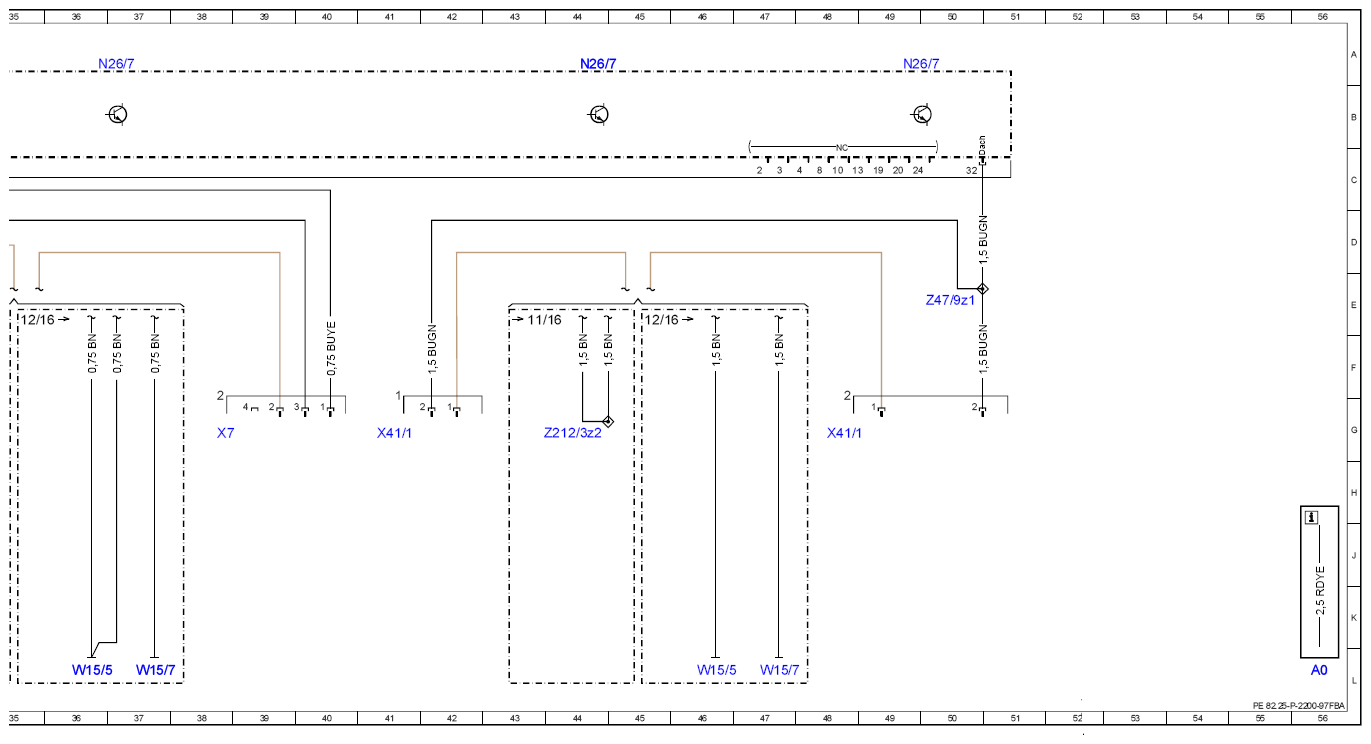

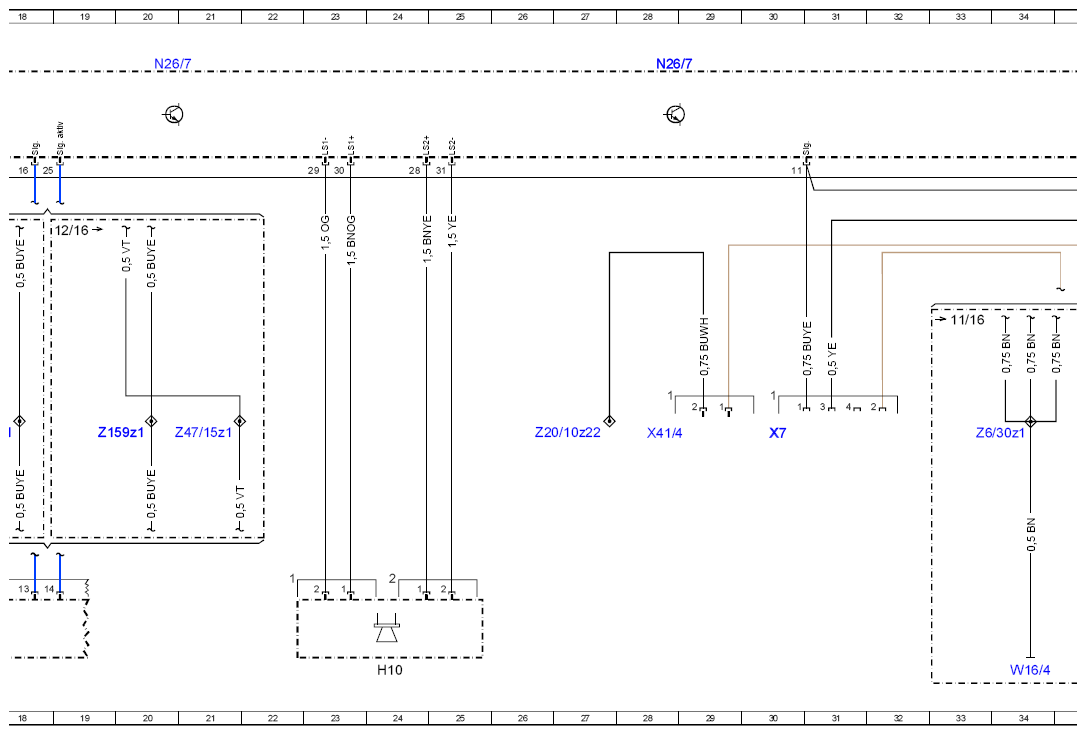

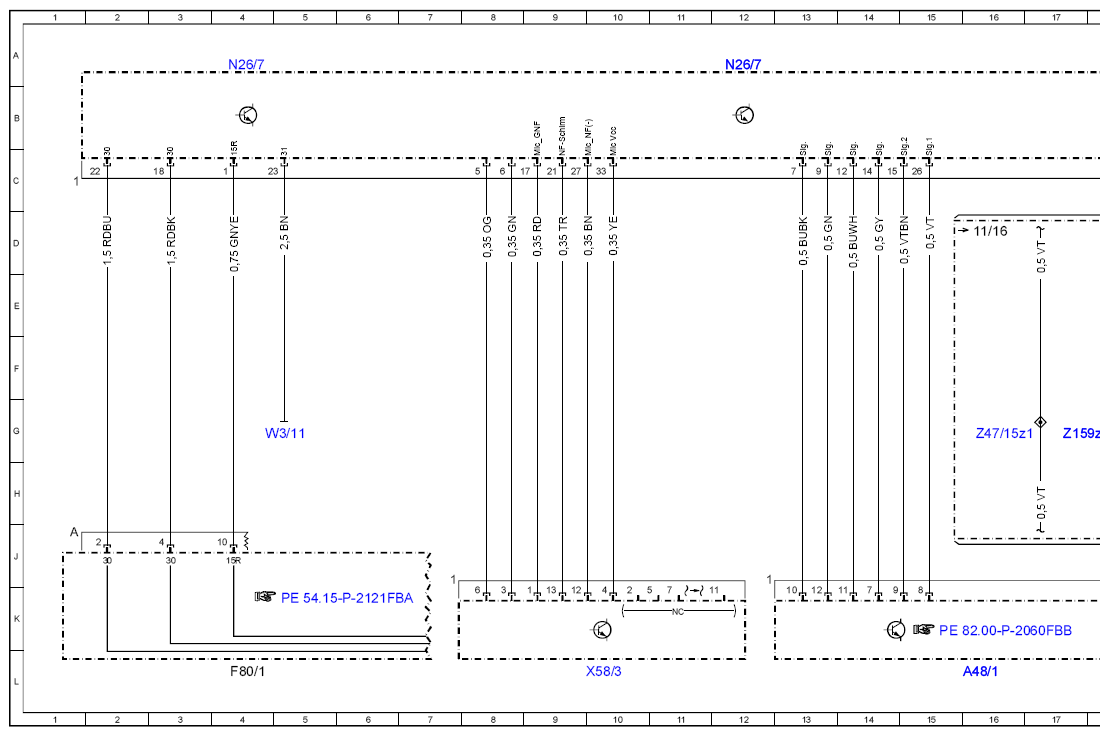

Model 205 up to model year 2019 with code 970 (Police emergency vehicle) with code 974 (Preparation for fire service command vehicle) with code 975 (Preparation for emergency doctor vehicle) N26/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A48/1 | Special signal system operating unit | 16L |
| F80/1 | Special-purpose vehicle fuse block 1 | 4L |
| H10 | Exterior special signal system speaker | 24L |
| N26/7 | Special signal system control unit | 4A |
| N26/7 | Special signal system control unit | 12A |
| N26/7 | Special signal system control unit | 20A |
| N26/7 | Special signal system control unit | 28A |
| N26/7 | Special signal system control unit | 37A |
| N26/7 | Special signal system control unit | 44A |
| N26/7 | Special signal system control unit | 49A |
| W15/5 | Left front footwell ground point | 36L |
| W15/5 | Left front footwell ground point | 46L |
| W15/7 | Right front footwell ground point | 47L |
| W15/7 | Right front footwell ground point | 37L |
| W16/4 | Right major assembly compartment ground point | 34L |
| W3/11 | Left rear wheel well ground point | 5G |
| X41/1 | Blue light separation point | 41G |
| X41/1 | Blue light separation point | 48G |
| X41/4 | Police beacon separation point | 28G |
| X58/3 | Microphone separation point | 10L |
| X7 | Front flashing light connecting point | 30G |
| X7 | Front flashing light connecting point | 38G |
| Z159z1 | Tone sequence active connector sleeve | 20G |
| Z159z1 | Tone sequence active connector sleeve | 17G |
| Z20/10z22 | Wire end not stripped | 27G |
| Z212/3z2 | Circuit 31 connector sleeve | 44G |
| Z47/15z1 | Emergency vehicle warning light connector sleeve | 16G |
| Z47/15z1 | Emergency vehicle warning light connector sleeve | 21G |
| Z47/9z1 | Blue priority vehicle warning light, separation point connector sleeve | 50E |
| Z6/30z1 | Circuit 31 connector sleeve | 34G |
