Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97FBB
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 F1/3, Sheet 2 Model 253 (except 253.99) up to model year 2020 F1/3, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A105 | Touchpad | 71L |
| A26/17 | Head unit | 46L |
| A40/12 | Head-up display | 75L |
| A40/9 | Audio/COMAND control panel | 66L |
| A50/6 | Dedicated Short-Range Communications control unit | 34L |
| A6 | Stationary heater unit | 17L |
| A76 | Left front reversible emergency tensioning retractor | 55L |
| A76/1 | Right front reversible emergency tensioning retractor | 59L |
| A9/5 | Electric refrigerant compressor | 83L |
| A90/5 | Multimedia connection unit | 79L |
| A98 | Panoramic sliding roof control module | 13L |
| A98/1 | Sliding roof control module | 9L |
| Code 228 | Stationary heater | 15E |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 90E |
| Code 235 | Active Park Assist | 49E |
| Code 235 | Active Park Assist | 110E |
| Code 299 | PRE-SAFE® | 53E |
| Code 413 | Panoramic sliding sunroof | 11E |
| Code 414 | Sliding roof | 7E |
| Code 463 | Head-up display | 73E |
| Code 475 | Tire pressure monitor | 106E |
| Code 483 | Dynamic handling package 2.0 incl. ADS+ | 36F |
| Code 488 | Chassis with steel/air suspension | 36F |
| Code 489 | AIR BODY CONTROL | 40F |
| Code 492 | AMG Performance suspension | 36F |
| Code 498 | Japan version | 32E |
| Code 520 | Audio 20 USB | 66G |
| Code 522 | Audio 20 radio | 63G |
| Code 522 | Audio 20 radio | 68G |
| Code 531 | COMAND APS | 68G |
| Code 531 | COMAND APS | 63G |
| Code 581 | THERMOTRONIC automatic air conditioning | 102E |
| Code 830 | Additional parts for China vehicles | 19E |
| Code 830 | Additional parts for China vehicles | 94F |
| Code 830 | Additional parts for China vehicles | 99F |
| Code B63 | AMG eSound | 28F |
| Code B63 | AMG eSound | 26B |
| Code F205 | MODEL SERIES 205 | 36E |
| Code F205 | MODEL SERIES 205 | 92F |
| Code F205 | MODEL SERIES 205 | 94E |
| Code F253 | MODEL SERIES 253 | 28E |
| Code F253 | MODEL SERIES 253 | 40E |
| Code F253 | MODEL SERIES 253 | 90F |
| Code F253 | MODEL SERIES 253 | 99E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 81E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 23F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 81F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 23E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 81F |

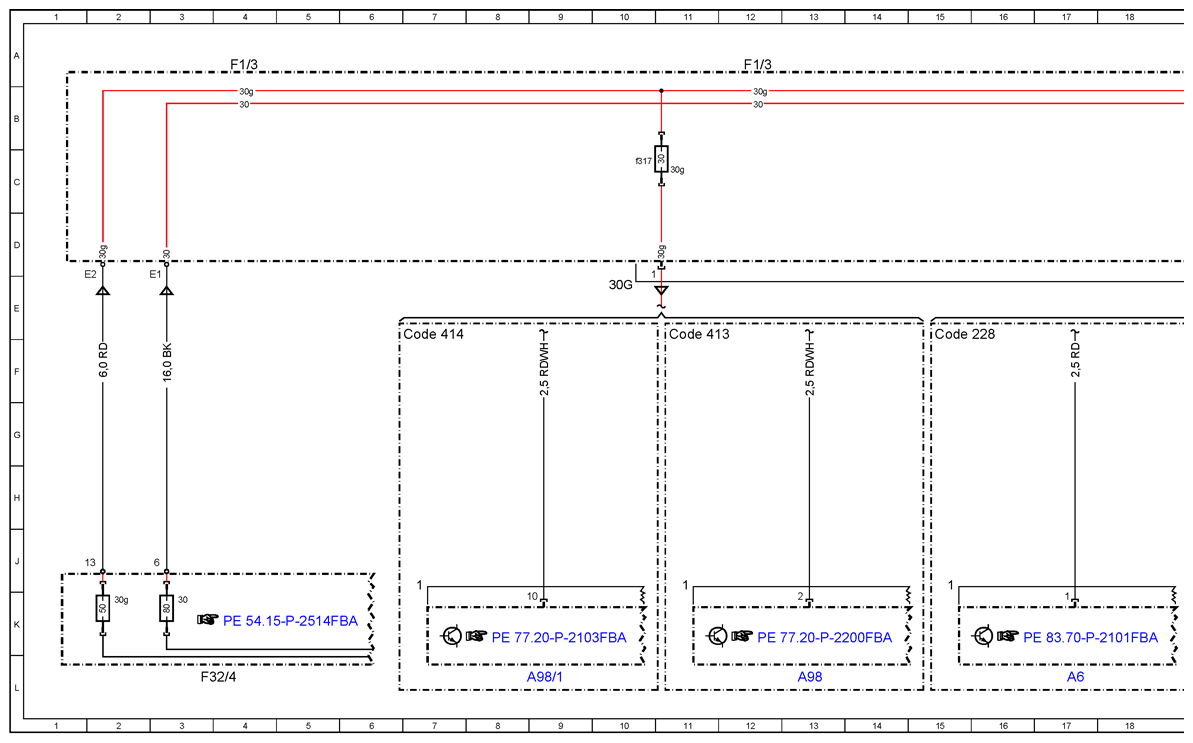

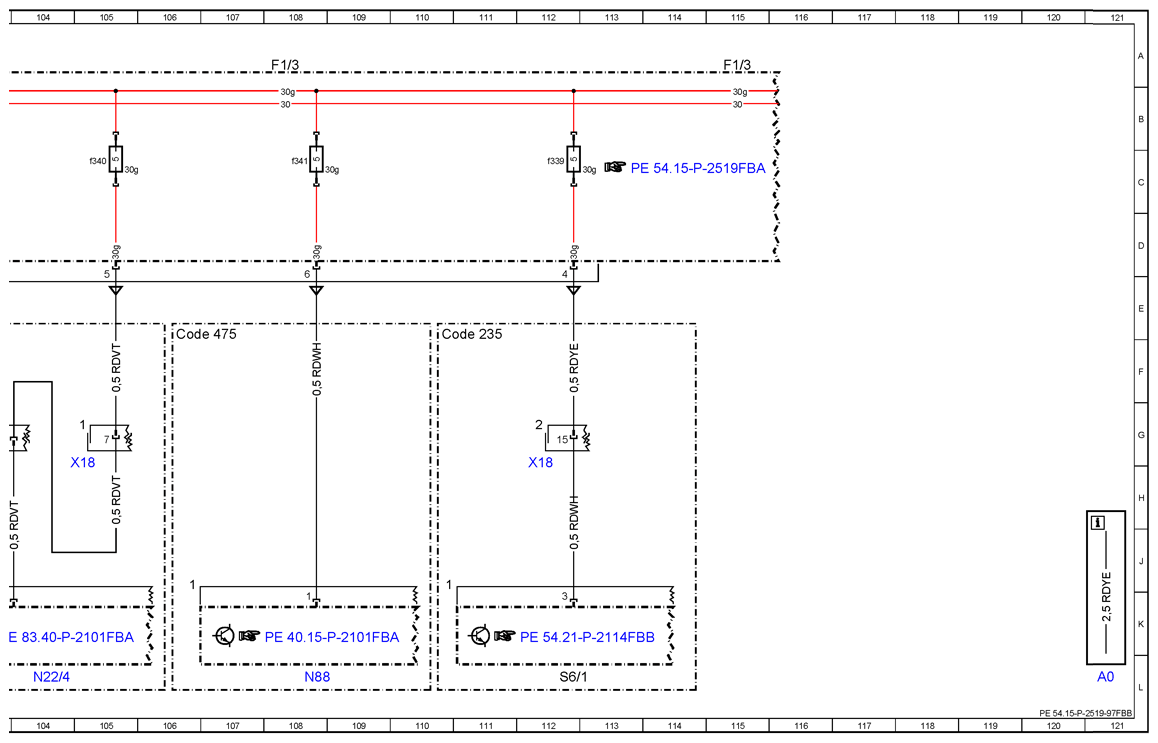

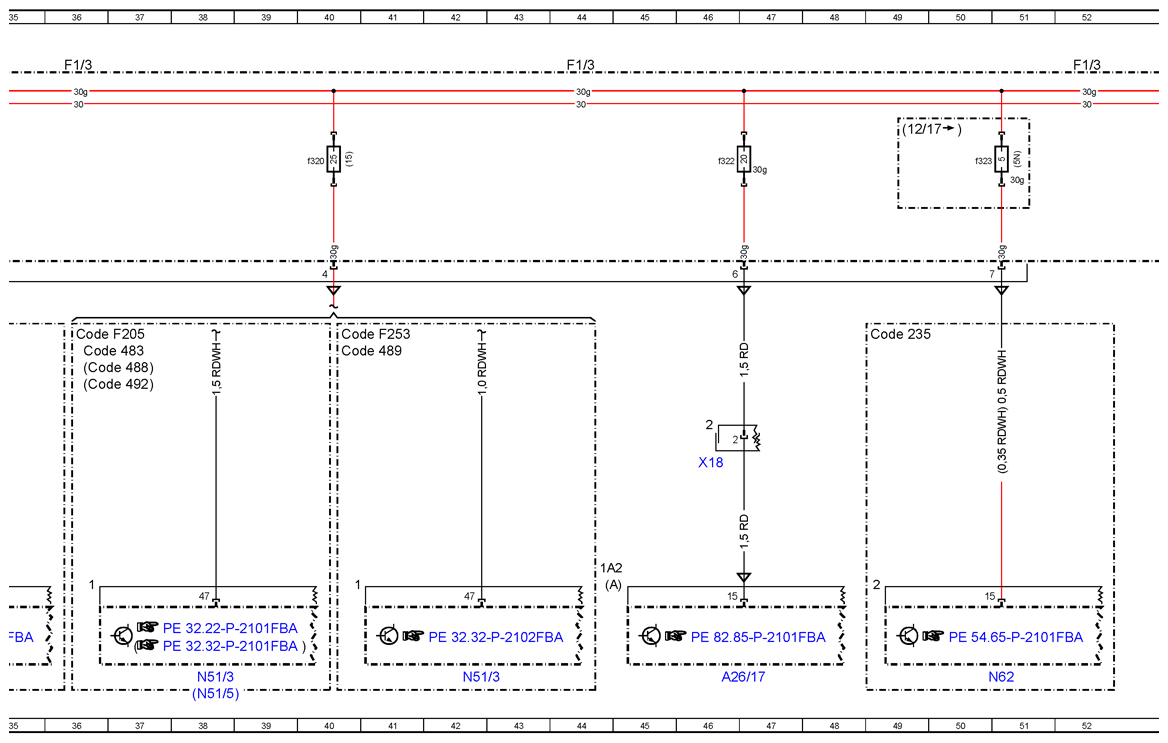

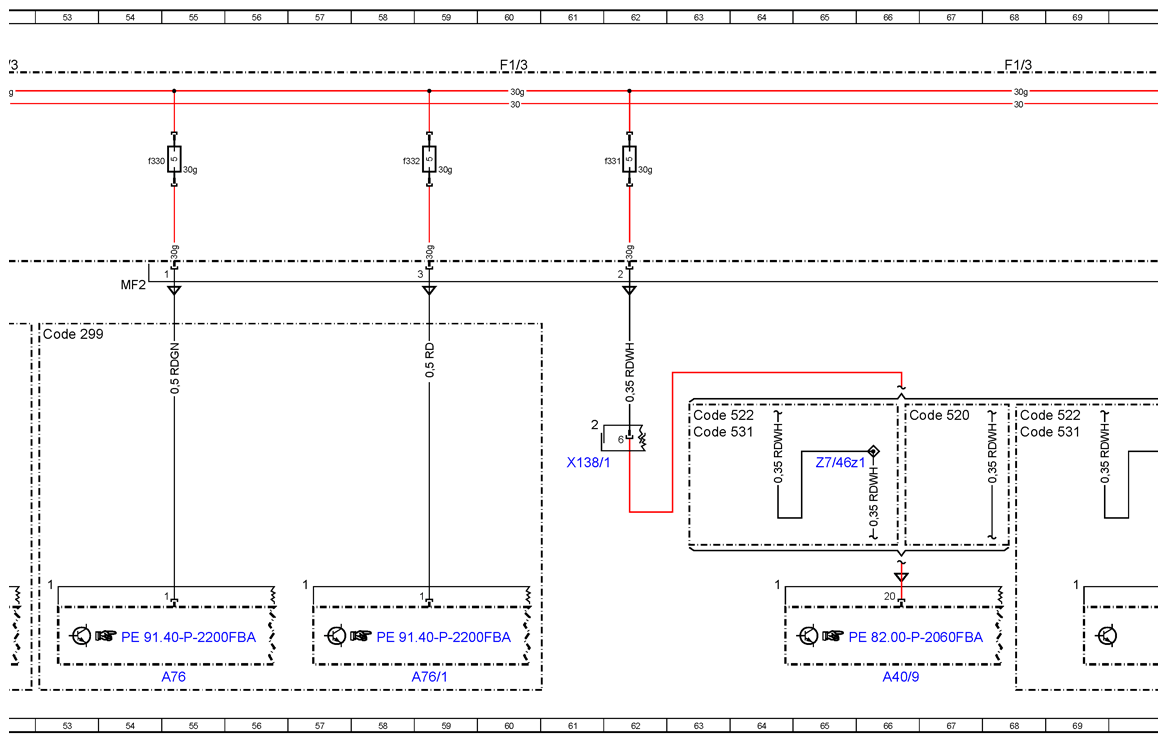

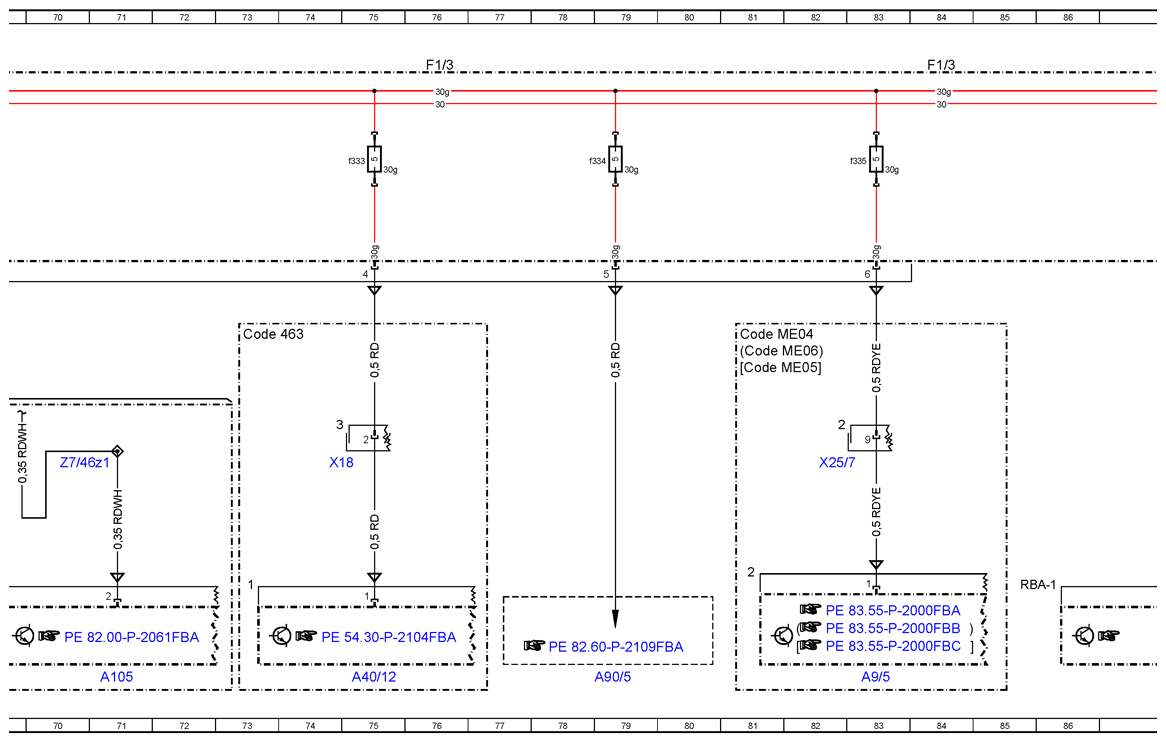

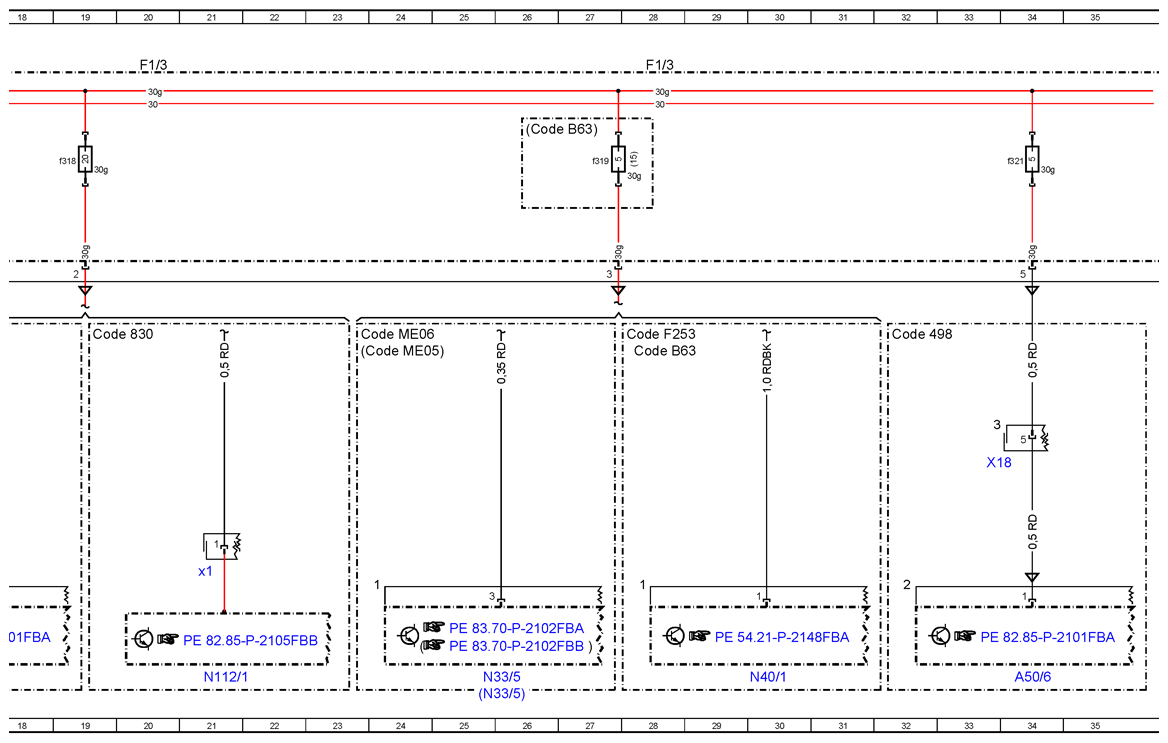

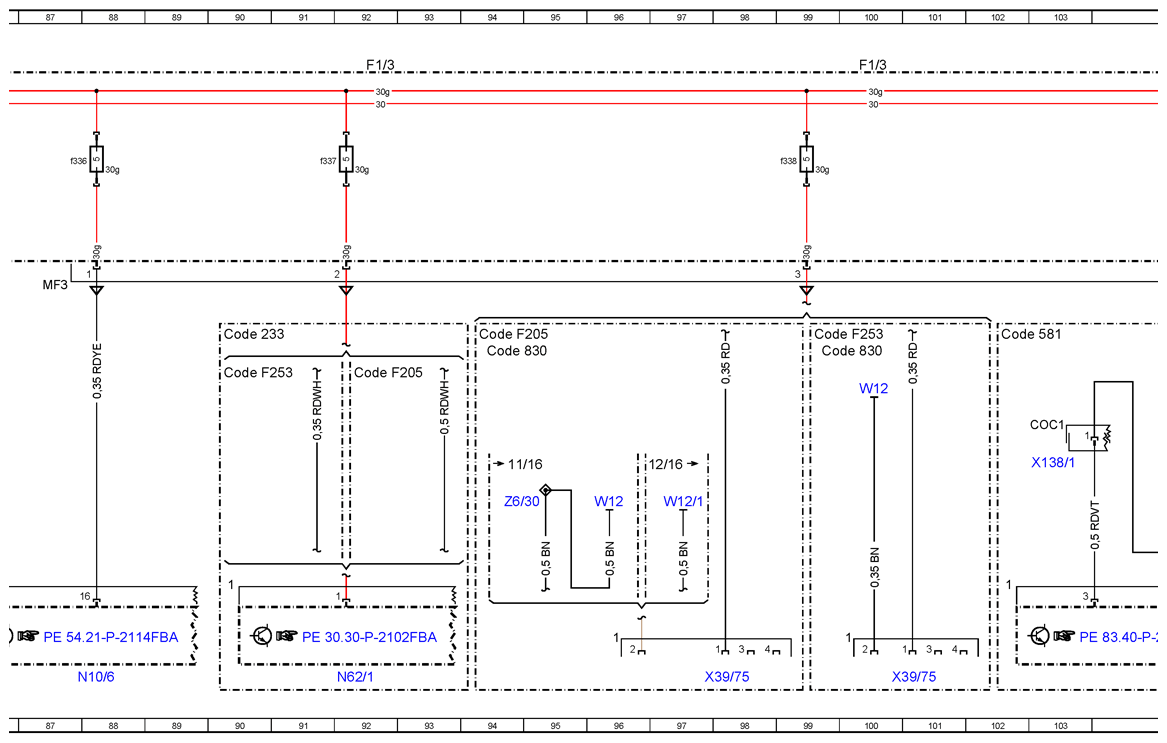

| F1/3 | Passenger-side A-pillar fuse box | 4A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 20A |
| F1/3 | Passenger-side A-pillar fuse box | 28A |
| F1/3 | Passenger-side A-pillar fuse box | 36A |
| F1/3 | Passenger-side A-pillar fuse box | 44A |
| F1/3 | Passenger-side A-pillar fuse box | 52A |
| F1/3 | Passenger-side A-pillar fuse box | 60A |
| F1/3 | Passenger-side A-pillar fuse box | 68A |
| F1/3 | Passenger-side A-pillar fuse box | 76A |
| F1/3 | Passenger-side A-pillar fuse box | 84A |
| F1/3 | Passenger-side A-pillar fuse box | 92A |
| F1/3 | Passenger-side A-pillar fuse box | 100A |
| F1/3 | Passenger-side A-pillar fuse box | 108A |
| F1/3 | Passenger-side A-pillar fuse box | 115A |
| F1/3f317 | Fuse 317 | 10C |
| F1/3f318 | Fuse 318 | 19C |
| F1/3f319 | Fuse 319 | 27C |
| F1/3f320 | Fuse 320 | 40C |
| F1/3f321 | Fuse 321 | 34C |
| F1/3f322 | Fuse 322 | 46C |
| F1/3f323 | Electrical fuse 323 | 50C |
| F1/3f330 | Fuse 330 | 54C |
| F1/3f331 | Fuse 331 | 62C |
| F1/3f332 | Fuse 332 | 58C |
| F1/3f333 | Fuse 333 | 75C |
| F1/3f334 | Fuse 334 | 78C |
| F1/3f335 | Fuse 335 | 83C |
| F1/3f336 | Fuse 336 | 87C |
| F1/3f337 | Fuse 337 | 91C |
| F1/3f338 | Fuse 338 | 99C |
| F1/3f339 | Fuse 339 | 112C |
| F1/3f340 | Fuse 340 | 105C |
| F1/3f341 | Fuse 341 | 108C |
| F32/4 | Vehicle interior prefuse box | 3L |
| N10/6 | Front SAM control unit | 88L |
| N112/1 | Telematics services communication module | 21L |
| N112/1x1 | Telematics services communication module electrical connector | 21J |
| N22/4 | Rear air conditioning operating unit | 104L |
| N33/5 | High-voltage PTC heater | 25L |
| N33/5 | High-voltage PTC heater | 25L |
| N40/1 | Engine sound control unit | 30L |
| N51/3 | AIR BODY CONTROL, control unit | 38L |
| N51/3 | AIR BODY CONTROL, control unit | 42L |
| N51/5 | Adaptive damping system control unit | 38L |
| N62 | Parking system control unit | 51L |
| N62/1 | Radar sensors control unit | 92L |
| N88 | Tire pressure monitor control unit | 108L |
| S6/1 | Driver-side instrument panel button group | 112L |
| W12 | Ground point (center console) | 96H |
| W12 | Ground point (center console) | 100F |
| W12/1 | Right center console ground point | 97H |
| X138/1 | Front center console electrical connector | 61H |
| X138/1 | Front center console electrical connector | 103H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 34H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 46H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 75H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 105H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 112H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 82H |
| X39/75 | Rear USB electrical connector | 98L |
| X39/75 | Rear USB electrical connector | 101L |
| Z6/30 | Circuit 31 connector sleeve | 94H |
| Z7/46z1 | Circuit 30g connector sleeve | 70H |
| Z7/46z1 | Circuit 30g connector sleeve | 65H |
