Remove/Install Electric Parking Brake Switch - AR42.20-P-0505LW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 238
Model 253
Model 293
Shown on model 205
Shown on model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

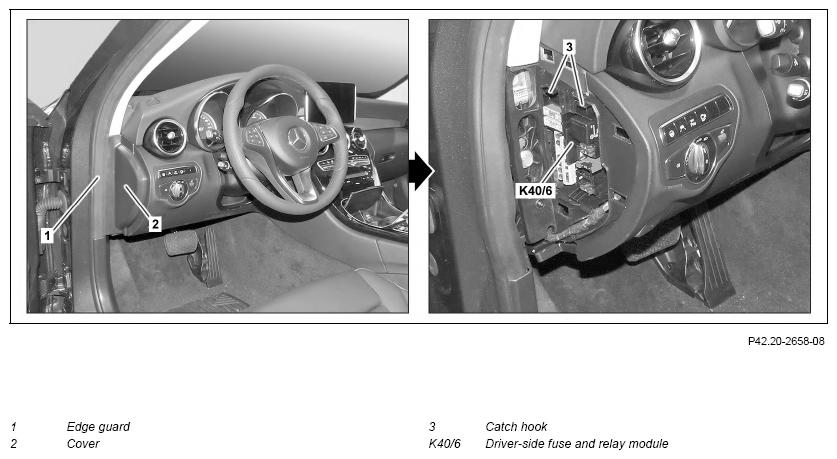

| 2 | Loosen edge guard (1) in area of cover (2). | ||
| 3 | Unclip cover (2) and remove. | Fig 2 | |
| 4 | Release catch hooks (3), remove fuse and relay module on driver's side (K40/6) and place to one side with connected electric lines. | ||

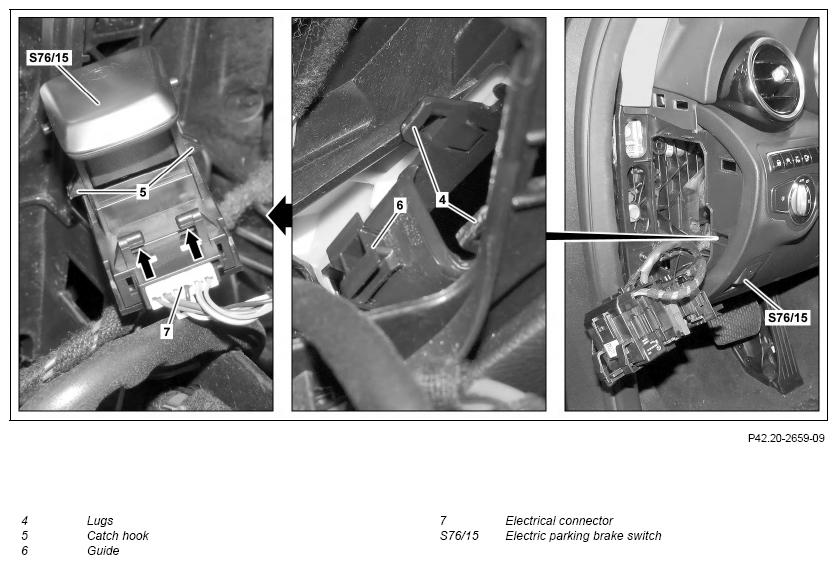

| 5 | Release shackles (4) for catch hooks (5) from electric parking brake switch (S76/15) using a suitable tool. | ||
| 6 | Swivel switch for electric parking brake (S76/15 inwards in the direction of the firewall and remove upwards out of the guide (6). | ||
| 7 | Release and disconnect electrical connector (7) from switch for electric parking brake (S76/15). | ||
| 8 | Install in the reverse order. |
