Drain/Pour In Coolant - AR20.00-P-1142MNP

Engine 177 In Model 167

MODIFICATION NOTES

14.07.2021 Perform ventilation routine of engine management control unit (MCM). Operation step 16.

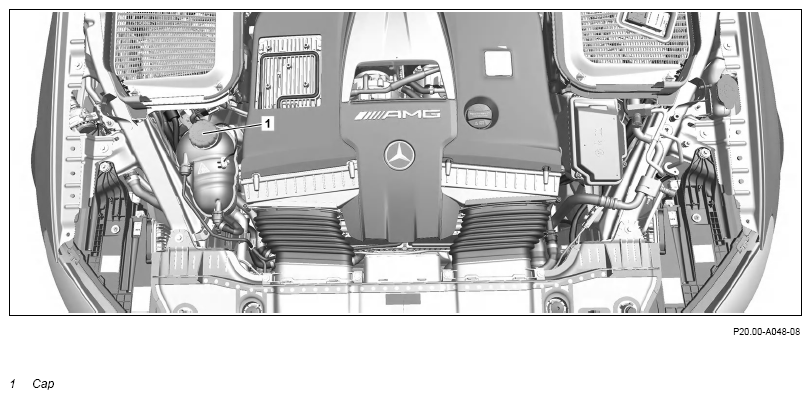

G15037349Courtesy of MERCEDES-BENZ USA

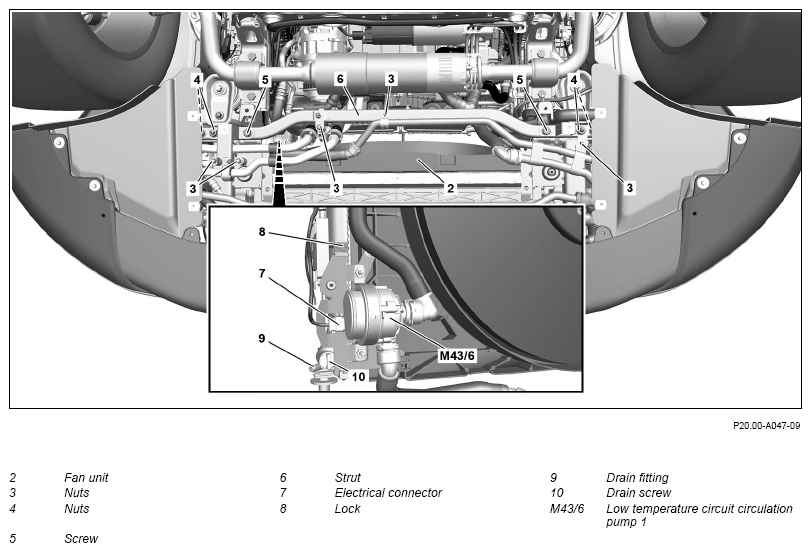

G15037350Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
  Notes on coolant level   AH20.00-P-1142-01CW
REMOVING Remove
1 Remove cap (1) from the expansion reservoir.
2 Remove front and center lower engine compartment lining.   AR61.20-P-1105ME
3 Remove nuts (3) and remove coolant lines from the strut (6). Engine 177 in model 167
except code M036 (Maybach version)

4 Remove nuts (4).
5 Remove screws (5) and remove strut (6).
6 Release and disconnect electrical connector (7). Engine 177 in model 167
except code M036 (Maybach version)

7 Unlock lock (8), remove low-temperature circuit circulation pump 1 (M43/6) with the bracket from the fan unit (2), and secure against falling down using suitable means. Engine 177 in model 167
except code M036 (Maybach version)

  Drain off
8 Slide drain hose onto drain fitting (9) at cooler.
9 Open drain screw (10), drain coolant, and capture it in a suitable container. NOTES
Unscrew drain screw (10) only until the coolant drains off.
Permanent damage to the drain screw (10) will occur otherwise.
IMPORTANT Observe regulations for disposal of coolant.

10 Tighten drain screw (10) and remove drain hose.
INSTALLING Install
11 Attach low-temperature circuit circulation pump 1 (M43/6) to fan unit (2) and connect electrical connector (7) to low-temperature circuit circulation pump 1 (M43/6). Engine 177 in model 167
except code M036 (Maybach version)

12 Position strut (6), screw in screws (5), and tighten. TORQUE SPECIFICATION Nut/screw, lower crossmember to radiator unit mounting support *BA62.30-P-1006-02I
13 Tighten nuts (4). TORQUE SPECIFICATION Nut/screw, lower crossmember to radiator unit mounting support *BA62.30-P-1006-02I
14 Position coolant lines on the strut (6) and tighten nuts (3). Engine 177 in model 167
except code M036 (Maybach version)
TORQUE SPECIFICATION M6 x 1
*BA00.10-P-1002-04A
  Pour in
15 Pour in coolant and bleed engine cooling system.   AR20.00-P-1142-04A
    FLUID SPECIFICATION Cooling system *BF20.00-P-1001-02LA
    SPECIAL TOOL Test cap Fig 2
    SPECIAL TOOL Cooler vacuum filling device Fig 4
    SPECIAL TOOL NTKL Adaption Fig 1
    SPECIAL TOOL Electric vacuum pump Fig 3
16 Perform ventilation routine of engine management control unit (MCM).
REFER TO SELF-DIAGNOSTIC SYSTEMSS     AD00.00-P-2000-06ME
INSPECT Check
17 Check engine cooling system for leak tightness. IMPORTANT Only install upper engine cover and lower engine compartment paneling after the performing a leak test. AR20.00-P-1011MNO
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
18 Perform engine test run; in this connection, check engine cooling system for proper operation and leak tightness.
INSTALLING Install
19 Install center and front lower engine compartment lining.   AR61.20-P-1105ME
20 Install upper engine cover.
REFER TO MAINTENANCE     AP01.10-P-2405-01E
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6 x 1 Nm 9 13
FRONT END WITH REINFORCEMENT

Number Designation Model 167
BA62.30-P-1006-02I Nut/screw, lower crossmember to radiator unit mounting support M10 Nm 55
COOLING SYSTEM

Number Designation Engine 177 in model 167
BF20.00-P-1001-02LA Cooling system Workshop replacement amount Main circuit Liter ≈ 15, 7
Low-Temp circuit 1 Liter ≈5, 0
Low-Temp circuit 2 Liter -
Antifreeze/water Down to -37°C % 50/50
-38°C and below % 55/45
Specifications for Operating Fluids, sheet BB00.40-P-0310-01A
Specifications for Operating Fluids, sheet BB00.40-P-0325-06A
Specifications for Operating Fluids, sheet BB00.40-P-0326-06A
Fig 1: Identifying NTKL Adaption (285 589 01 21 00)
G13656751Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Test Cap (210 589 00 91 00)
G12618425Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Electric Vacuum Pump (285 589 02 21 00)
G13656441Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Cooler Vacuum Filling Device (285 589 00 21 00)
G13656436Courtesy of MERCEDES-BENZ USA
