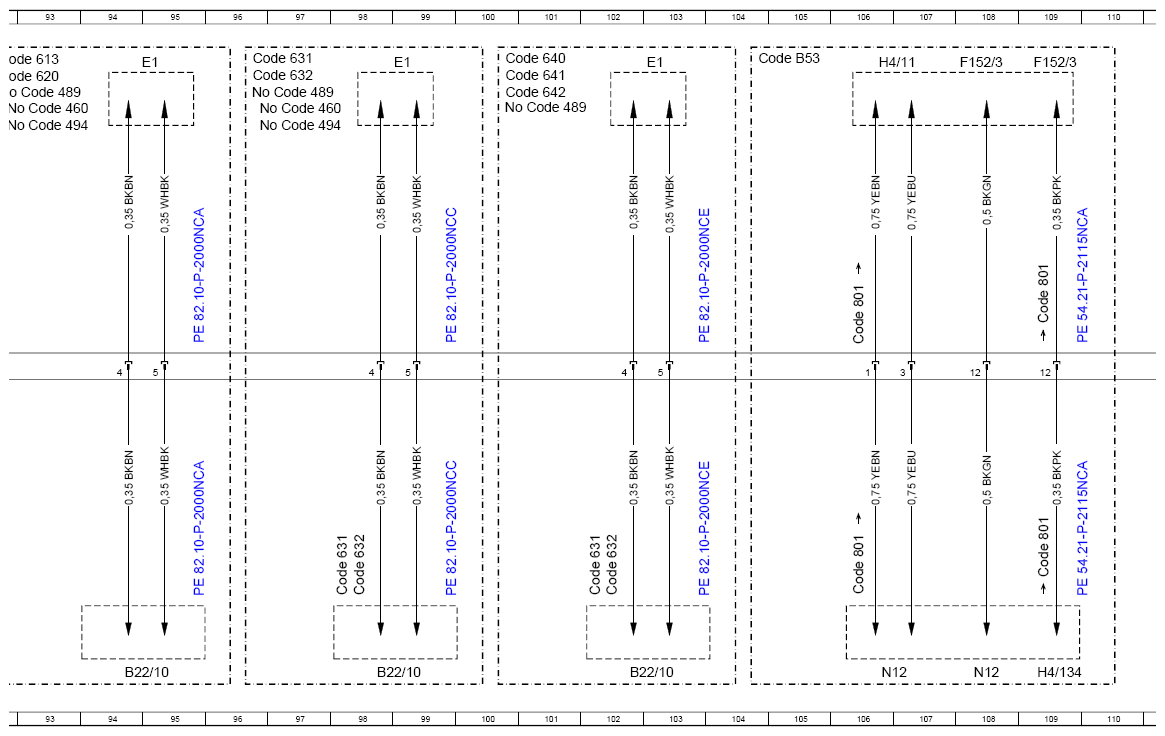

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NCB
Model 167 Connector X18/54x1, X18/54x2, X25/7x1, X25/7x2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 153L |
| A2/168 | Telephone antenna changeover switch | 46L |
| A26/17 | Head unit | 4L |
| A26/17 | Head unit | 7L |
| A26/17 | Head unit | 10A |
| A40/16 | Head unit/instrument cluster display cluster | 7A |

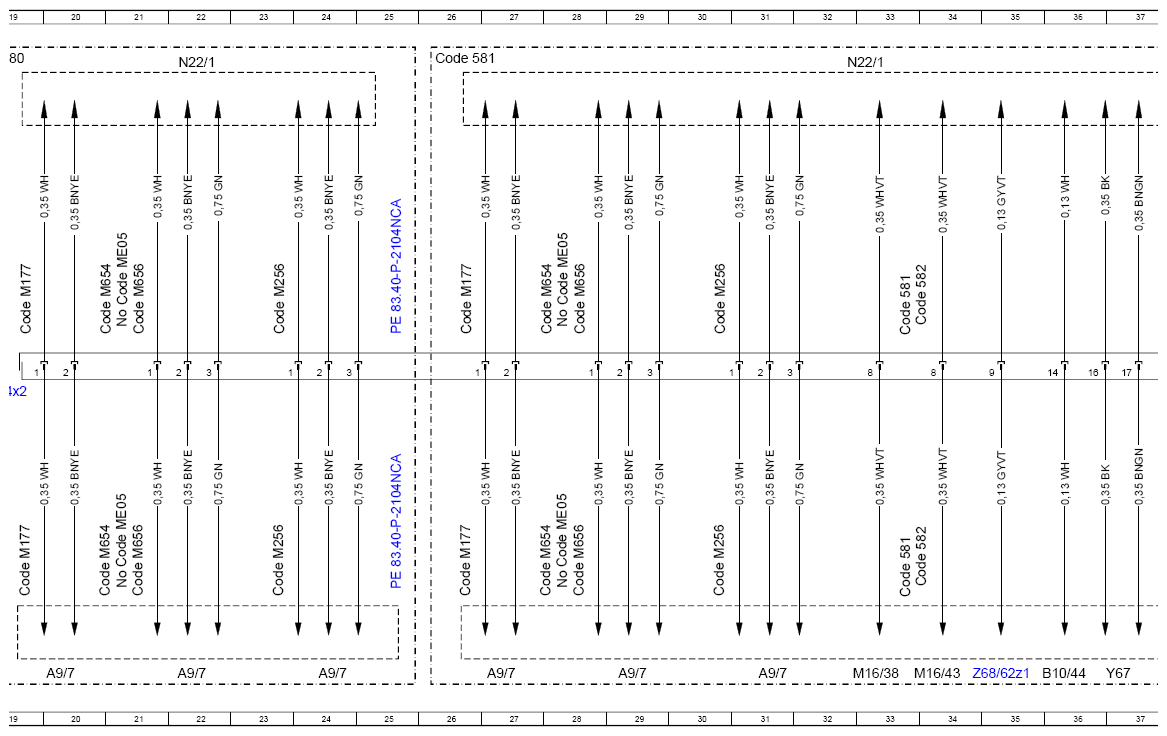

| A9/7 | Refrigerant compressor with magnetic clutch | 24L |
| A9/7 | Refrigerant compressor with magnetic clutch | 20L |
| A9/7 | Refrigerant compressor with magnetic clutch | 22L |
| A9/7 | Refrigerant compressor with magnetic clutch | 27L |
| A9/7 | Refrigerant compressor with magnetic clutch | 29L |
| A9/7 | Refrigerant compressor with magnetic clutch | 31L |
| B10/11 | Rear air conditioning evaporator temperature sensor | 38L |
| B10/44 | Left rear footwell A/C temperature sensor | 36L |
| B10/46 | Rear head area A/C temperature sensor | 39L |
| B22/10 | Right rear level sensor | 94L |
| B22/10 | Right rear level sensor | 102L |
| B22/10 | Right rear level sensor | 98L |
| C8 | Park pawl capacitor | 59L |
| Code 362 | HERMES LTE | 50K |
| Code 362 | HERMES LTE | 50E |
| Code 380 | Car telephony package | 43K |
| Code 380 | Car telephony package | 44K |
| Code 380 | Car telephony package | 43E |
| Code 380 | Car telephony package | 44E |
| Code 421 | 9G-TRONIC | 59K |
| Code 421 | 9G-TRONIC | 59F |
| Code 460 | Canada version | 93B |
| Code 460 | Canada version | 97B |
| Code 466 | Active engine mount | 80K |
| Code 466 | Active engine mount | 80F |
| Code 467 | Electronic locking differential | 88K |
| Code 467 | Electronic locking differential | 88F |
| Code 489 | AIRMATIC | 93B |
| Code 489 | AIRMATIC | 101B |
| Code 489 | AIRMATIC | 97B |
| Code 494 | USA version | 93B |
| Code 494 | USA version | 97B |
| Code 4U7 | Start/stop voltage dip protection | 111F |
| Code 580 | Air conditioning | 18A |
| Code 581 | Automatic air conditioning | 33K |
| Code 581 | Automatic air conditioning | 26A |
| Code 581 | Automatic air conditioning | 33E |
| Code 582 | Rear air conditioning | 34J |
| Code 582 | Rear air conditioning | 34E |
| Code 613 | Left-hand traffic headlamps | 92A |
| Code 620 | Right-hand traffic headlamps | 92A |
| Code 631 | Static LED headlamp, left-hand traffic | 102K |
| Code 631 | Static LED headlamp, left-hand traffic | 98K |
| Code 631 | Static LED headlamp, left-hand traffic | 96A |
| Code 632 | Static LED headlamp, right-hand traffic | 102K |
| Code 632 | Static LED headlamp, right-hand traffic | 98K |
| Code 632 | Static LED headlamp, right-hand traffic | 96A |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 100A |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 100A |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 100B |
| Code 801 | YoM 20/1 | 109J |
| Code 801 | YoM 20/1 | 106K |
| Code 801 | YoM 20/1 | 109E |
| Code 801 | YoM 20/1 | 106F |
| Code 802 | YoM 21/1 | 78A |
| Code 830 | Additional parts for China vehicles | 8K |
| Code 830 | Additional parts for China vehicles | 9E |
| Code 830 | Additional parts for China vehicles | 8E |
| Code 856 | Business telephony in rear passenger compartment | 8J |
| Code 856 | Business telephony in rear passenger compartment | 10K |
| Code 856 | Business telephony in rear passenger compartment | 8E |
| Code 856 | Business telephony in rear passenger compartment | 10E |
| Code 899 | Wireless phone charging at front and antenna | 45J |
| Code 899 | Wireless phone charging at front and antenna | 45E |
| Code B53 | Acoustic ambient protection | 104A |
| Code M016 | Uprated high-performance engine | 61J |
| Code M016 | Uprated high-performance engine | 61E |
| Code M036 | Maybach version | 10K |
| Code M036 | Maybach version | 151J |
| Code M036 | Maybach version | 151E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 19K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 26K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 19E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 26E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 150J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 150E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 23K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 30K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 60K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 23E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 30E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 60F |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 66A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 125A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 62A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 118A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 21K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 28K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 56K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 21E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 28E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 56F |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 70A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 115A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 132A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 21K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 28K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 56K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 21E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 28E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 56F |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 74A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 115A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 139A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 21J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 28J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 21E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 28E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 149K |
| E1 | Left front lamp unit | 95A |
| E1 | Left front lamp unit | 99A |
| E1 | Left front lamp unit | 103A |
| F151/1 | Passenger-side A-pillar fuse box | 43L |
| F152/3 | Engine compartment fuse and relay module | 54A |
| F152/3 | Engine compartment fuse and relay module | 59A |
| F152/3 | Engine compartment fuse and relay module | 64A |
| F152/3 | Engine compartment fuse and relay module | 68A |
| F152/3 | Engine compartment fuse and relay module | 72A |
| F152/3 | Engine compartment fuse and relay module | 76A |
| F152/3 | Engine compartment fuse and relay module | 80A |
| F152/3 | Engine compartment fuse and relay module | 121L |
| F152/3 | Engine compartment fuse and relay module | 117L |
| F152/3 | Engine compartment fuse and relay module | 123L |
| F152/3 | Engine compartment fuse and relay module | 129L |
| F152/3 | Engine compartment fuse and relay module | 145L |
| F152/3 | Engine compartment fuse and relay module | 142L |
| F152/3 | Engine compartment fuse and relay module | 138L |
| F152/3 | Engine compartment fuse and relay module | 134L |
| F152/3 | Engine compartment fuse and relay module | 151L |
| F152/3 | Engine compartment fuse and relay module | 149L |
| F152/3 | Engine compartment fuse and relay module | 147L |
| F152/3 | Engine compartment fuse and relay module | 109A |
| F152/3 | Engine compartment fuse and relay module | 89A |
| F152/3 | Engine compartment fuse and relay module | 88A |
| F152/3 | Engine compartment fuse and relay module | 108A |
| F152/3 | Engine compartment fuse and relay module | 111A |
| H20/22 | Center front mid-range speaker (Standard) | 51L |
| H4/11 | Front sound generator | 106A |
| H4/134 | Sound generator 2 | 109L |

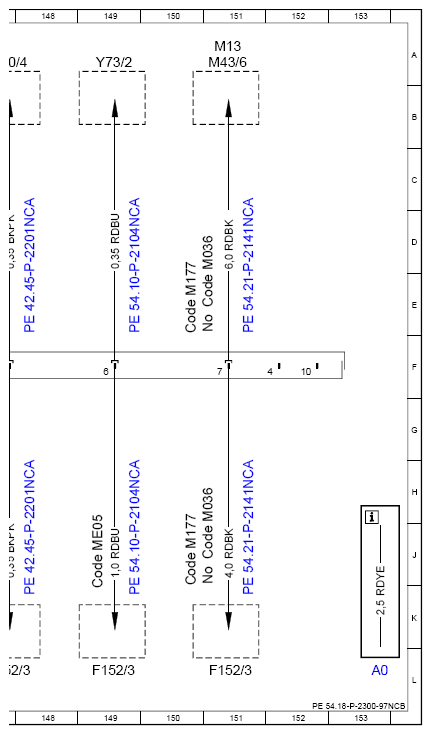

| M13 | Circulation pump | 151A |
| M16/38 | Right B-pillar air flap open/close actuator motor | 33L |
| M16/43 | 3rd seat row air distribution actuator motor | 34L |
| M43/6 | Low-temperature circuit circulation pump 1 | 151A |
| N10/6 | Front central control unit | 91A |
| N112/9 | HERMES control unit | 51A |
| N12 | Sound generator control unit | 106L |
| N12 | Sound generator control unit | 108L |
| N123/13 | Handset charging control unit | 10L |

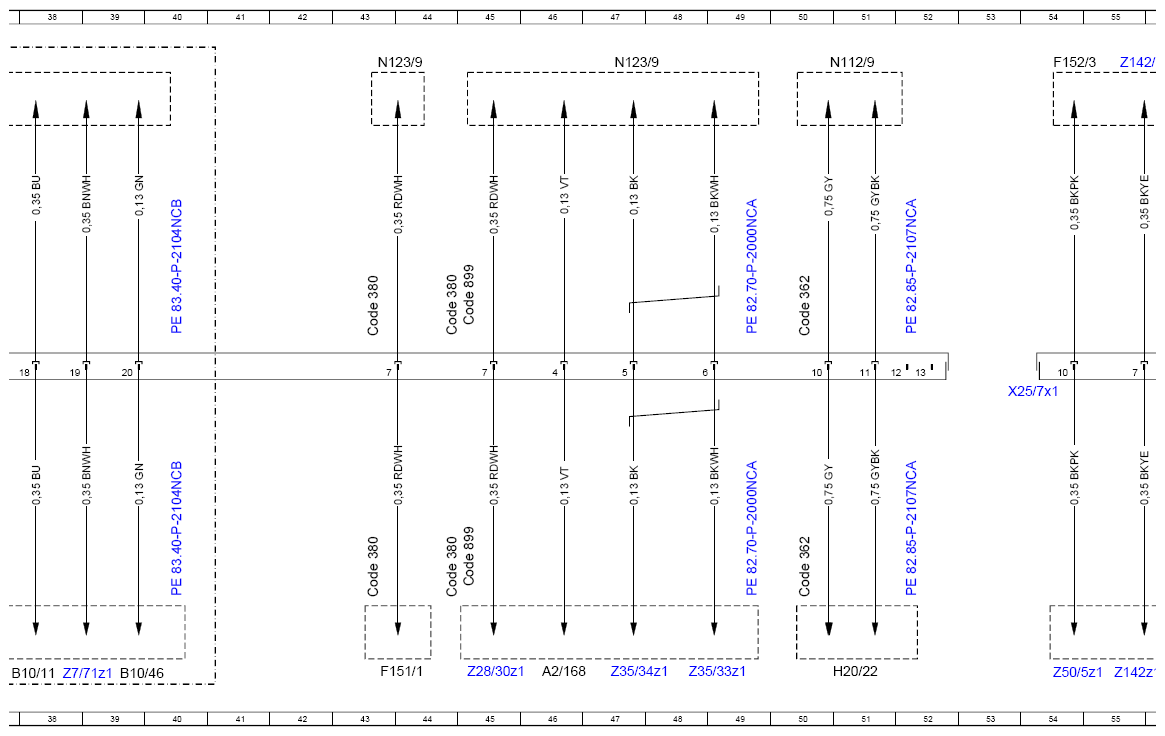

| N123/9 | Telephone control unit | 8A |
| N123/9 | Telephone control unit | 43A |
| N123/9 | Telephone control unit | 47A |

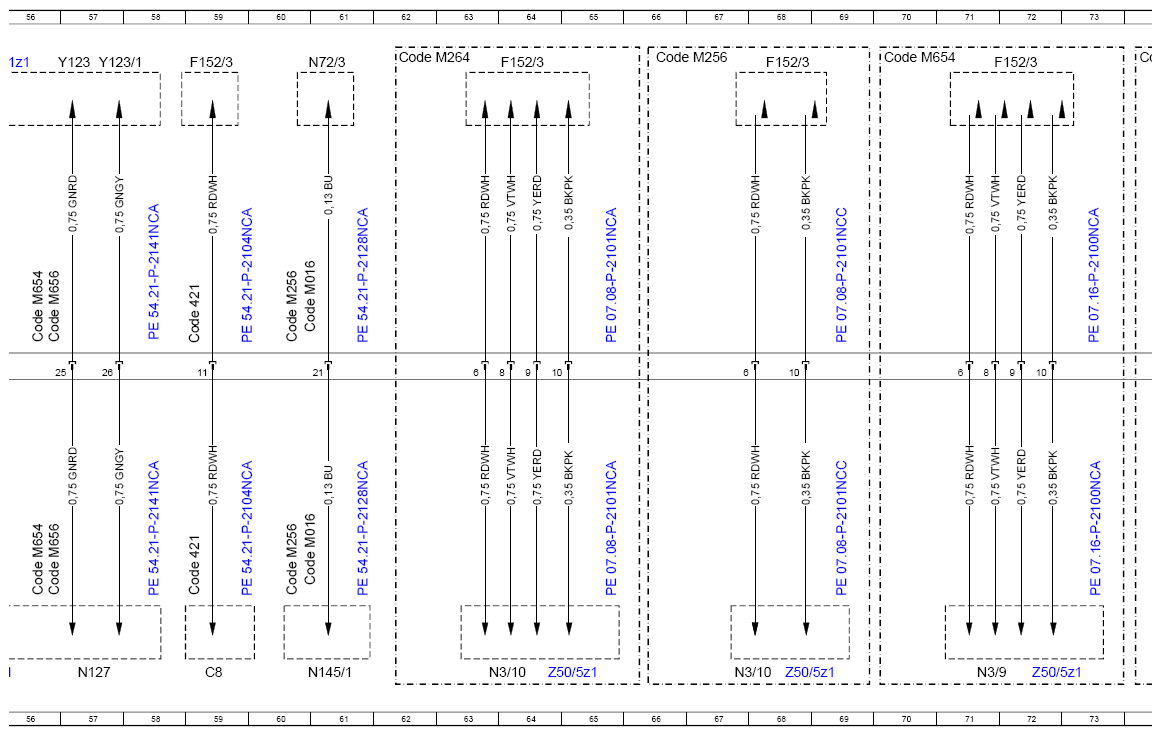

| N127 | Drivetrain control unit | 57L |

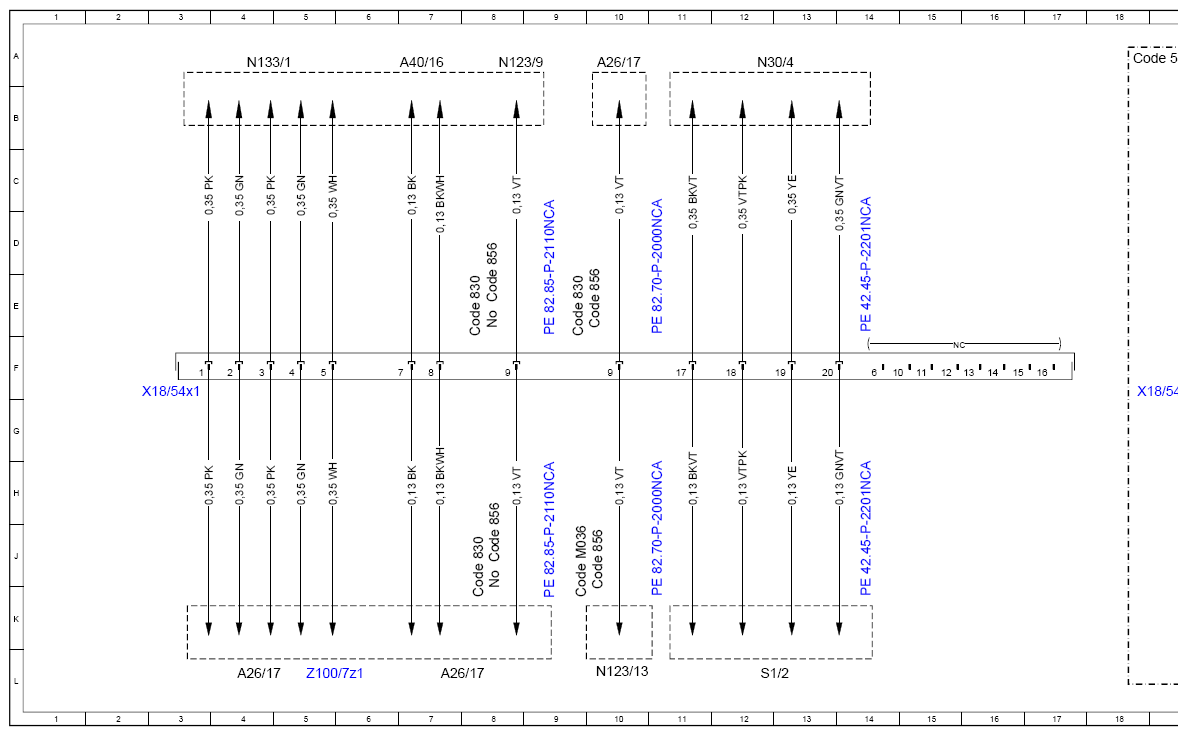

| N133/1 | Instrument cluster control unit | 4A |
| N145/1 | Drive unit control unit | 61L |
| N15/7 | Transfer case control unit | 89L |
| N22/1 | Climate control control unit | 22A |
| N22/1 | Climate control control unit | 32A |
| N3/10 | ME-SFI [ME] control unit | 67L |
| N3/10 | ME-SFI [ME] control unit | 63L |
| N3/10 | ME-SFI [ME] control unit | 121A |
| N3/10 | ME-SFI [ME] control unit | 131A |

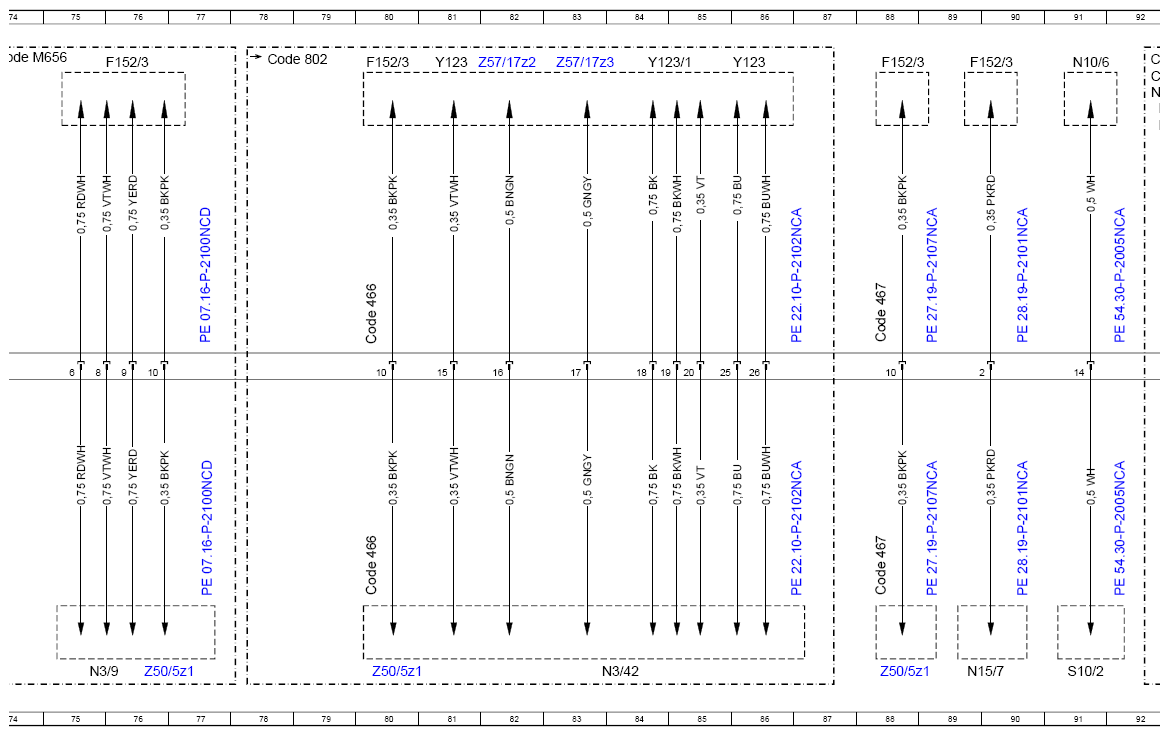

| N3/42 | Active engine mounts control unit | 84L |
| N3/9 | CDI control unit | 75L |
| N3/9 | CDI control unit | 71L |

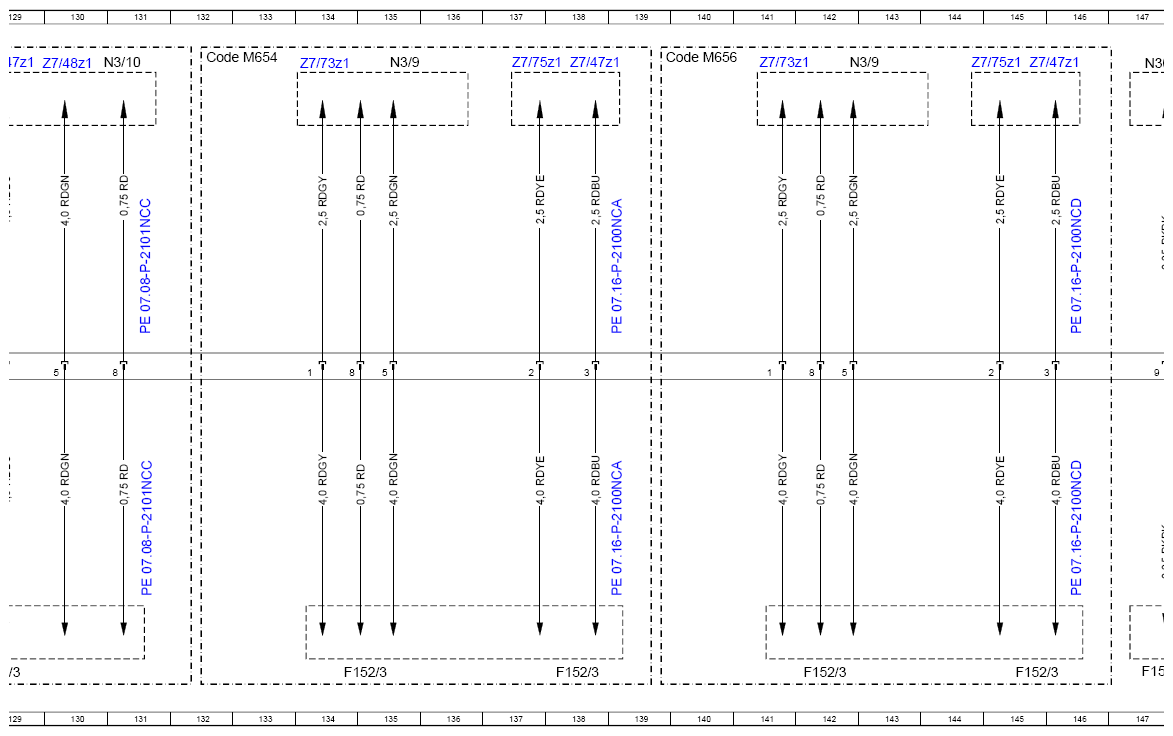

| N3/9 | CDI control unit | 135A |
| N3/9 | CDI control unit | 142A |
| N30/4 | Electronic Stability Program (ESP®) control unit | 12A |
| N30/4 | Electronic Stability Program (ESP®) control unit | 147A |
| N72/3 | Off-Road operating panel control unit | 61A |

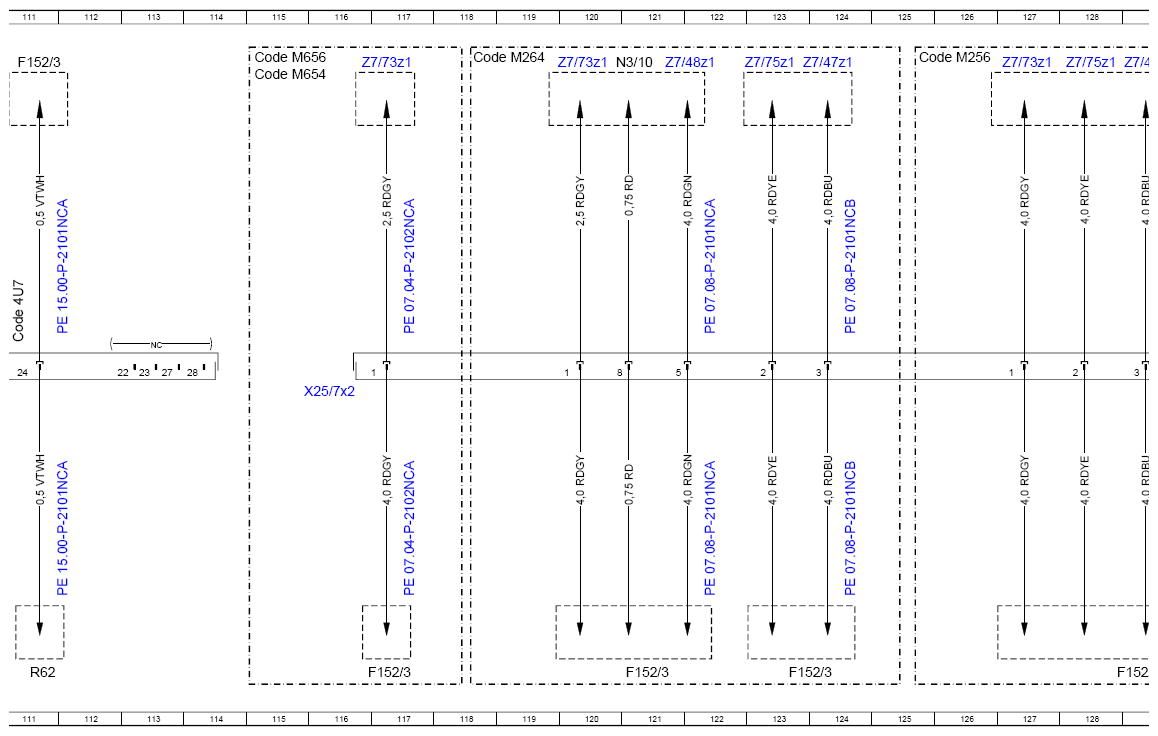

| R62 | Voltage dip limiter | 111L |
| S1/2 | Exterior lights and electric parking brake switch group | 12L |
| S10/2 | Right front brake wear sensor | 91L |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 3F |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 19F |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 54F |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 116F |
| Y123 | Left switchable engine mount | 57A |
| Y123 | Left switchable engine mount | 81A |
| Y123 | Left switchable engine mount | 86A |
| Y123/1 | Right switchable engine mount | 57A |
| Y123/1 | Right switchable engine mount | 84A |
| Y67 | Rear AC refrigerant shutoff valve | 37L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 149A |
| Z100/7z1 | Wake-up signal connector sleeve | 5L |
| Z142/1z1 | Powertrain control unit LIN connector sleeve | 55A |
| Z142z1 | LIN C3 connector sleeve | 55L |
| Z28/30z1 | Terminal 30t connector sleeve | 45L |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 48L |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 47L |
| Z50/5z1 | Tml. 15 connector sleeve | 54L |
| Z50/5z1 | Tml. 15 connector sleeve | 68L |
| Z50/5z1 | Tml. 15 connector sleeve | 64L |
| Z50/5z1 | Tml. 15 connector sleeve | 80L |
| Z50/5z1 | Tml. 15 connector sleeve | 76L |
| Z50/5z1 | Tml. 15 connector sleeve | 72L |
| Z50/5z1 | Tml. 15 connector sleeve | 88L |
| Z57/17z2 | Active engine mount end sleeve | 82A |
| Z57/17z3 | Active engine mount end sleeve | 83A |
| Z68/62z1 | Air conditioning control LIN data line end sleeve 4 | 35L |
| Z7/47z1 | Circuit 87M1 connector sleeve | 124A |
| Z7/47z1 | Circuit 87M1 connector sleeve | 129A |
| Z7/47z1 | Circuit 87M1 connector sleeve | 138A |
| Z7/47z1 | Circuit 87M1 connector sleeve | 145A |
| Z7/48z1 | Circuit 87M2 connector sleeve | 121A |
| Z7/48z1 | Circuit 87M2 connector sleeve | 130A |
| Z7/71z1 | Ground connection connector sleeve | 38L |
| Z7/73z1 | Circuit 87M4 connector sleeve | 134A |
| Z7/73z1 | Circuit 87M4 connector sleeve | 117A |
| Z7/73z1 | Circuit 87M4 connector sleeve | 120A |
| Z7/73z1 | Circuit 87M4 connector sleeve | 127A |
| Z7/73z1 | Circuit 87M4 connector sleeve | 141A |
| Z7/75z1 | Circuit 87M3 connector sleeve | 128A |
| Z7/75z1 | Circuit 87M3 connector sleeve | 123A |
| Z7/75z1 | Circuit 87M3 connector sleeve | 137A |
| Z7/75z1 | Circuit 87M3 connector sleeve | 144A |
