Upper Front Longitudinal Member Partial Installation - Ar62.20-P-1287-03ME

Model 167

Fig 1: Welding Device (167 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on the left side of the vehicle in model 167.1. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Install upper front longitudinal member (1) and striker plate (4), fit and fix in place using the straighteners and the welding fixture.

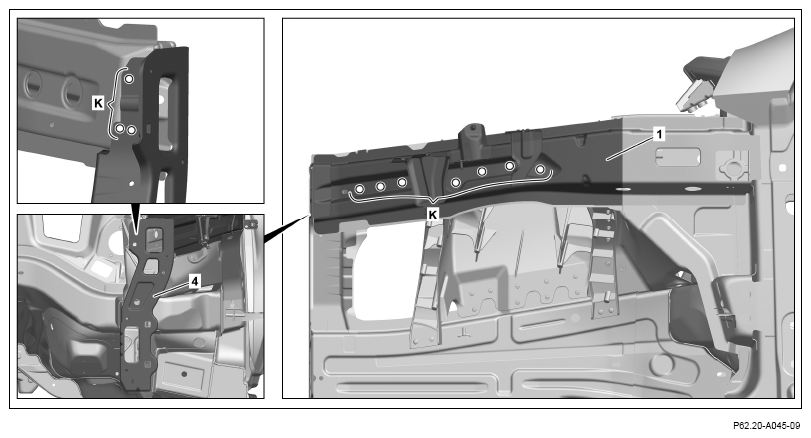

2. Drill rivet holes on upper front longitudinal member (1) and on striker plate (4) with a diameter of 6.7 mm (areas K).
3. Remove upper front longitudinal member (1) and striker plate (4).
4. Deburr rivet holes on upper front longitudinal member (1), striker plate (4) and body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

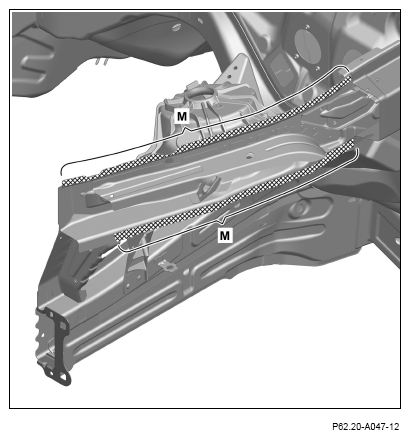

7. Apply 2-component adhesive to body in crosshatched areas (M).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

8. Install upper front longitudinal member (1) and striker plate (4), fit and fix in place using the straighteners and the welding fixture.

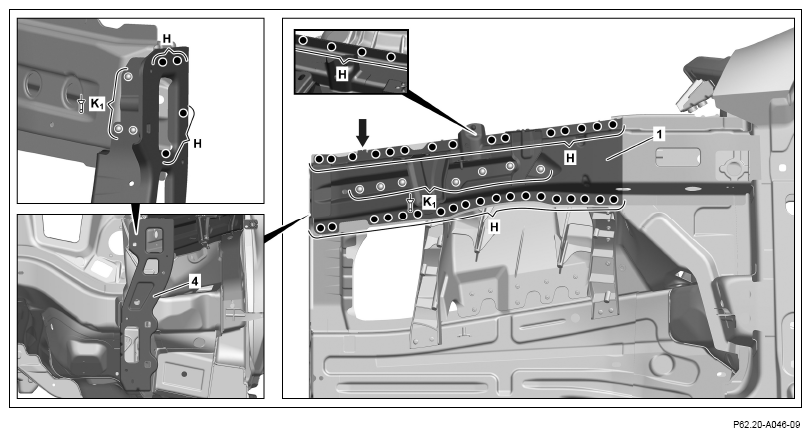

9. Rivet upper front longitudinal member (1) and striker plate (4) using a rivet with a diameter of 6.5x12.5 (areas K₁ ).
10. Upper front longitudinal member (1) and striker plate (4) (areas H).
11. Bend sheet metal lug closed (arrow).

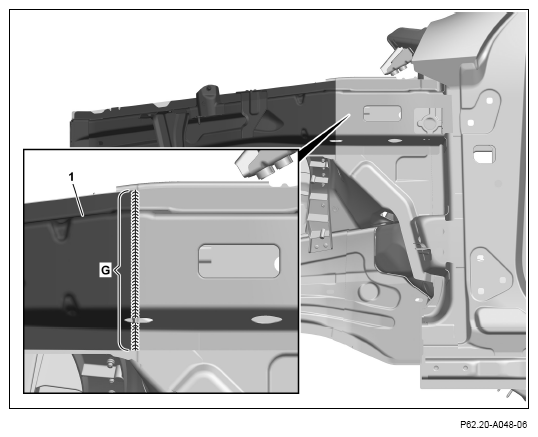

12. Upper front longitudinal member (1) (area G).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

13. Surface grind inert gas weld on upper front longitudinal member (1) (area G).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

14. Striker plate (4) (areas E).
15. Striker plate (4) (area D).
16. Fit and fix in place the bracket (1.1) using the welding fixture.

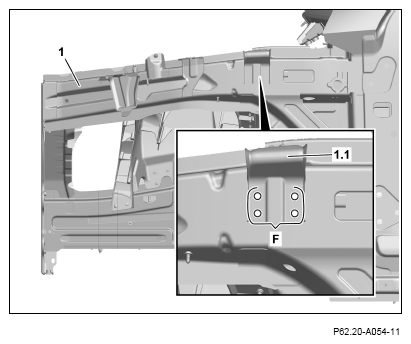

17. Drill rivet holes on bracket (1.1) with a diameter of 6.7 mm (area F).
18. Take off the bracket (1.1).
19. Deburr rivet holes on bracket (1.1) and on body on both sides.
20. Remove drilling chips.
21. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

22. Fit and fix in place the bracket (1.1) using the welding fixture.
23. Rivet the bracket (1.1) using rivets with a diameter of 6.5x12.5 (area F₁ ).
24. Remove the straighteners and the welding fixture.

    Courtesy of MERCEDES-BENZ USA

25. Fit and fix the strut (3) in place.
26. Drill rivet holes in the strut (3) with a diameter of 6.7 mm (areas C).
27. Remove strut (3).
28. Deburr rivet holes in strut (3) and body on both sides.
29. Remove drilling chips.
30. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

31. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

32. Fit and fix the strut (3) in place.
33. Rivet strut (3) using rivets having a diameter of 6.5x12.5 (areas C₁ ).
34. Strut (3) (areas C2).
35. Strut (3) (area L).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

    Courtesy of MERCEDES-BENZ USA
