Remove/Install Brake Booster Vacuum Line - AR43.10-P-0355ME
Model 167 With Engine 176, 177, 264, 274
MODIFICATION NOTES
| 28.01.2021 | Stop plug added. | Operation steps 3, 4, 5 and 11. |

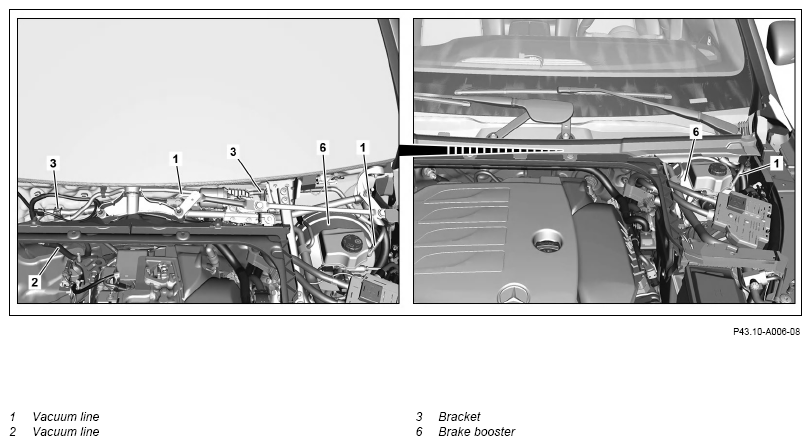

Shown on model 167 With Engine 264

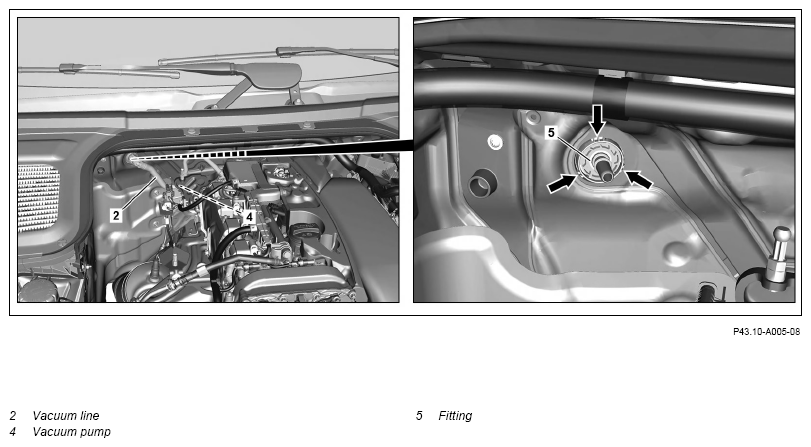

Shown on model 167 With Engine 264
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Preparatory tasks | |||
| 1 | Reduce vacuum in brake booster (6) by depressing brake pedal several times. | ||
| Remove/install vacuum line (1) on brake booster | |||
| 2 | Remove cover of air/water duct. | AR83.10-P-1411ME | |
| 3 | Remove vacuum line (1) from brake booster (6) and seal openings using suitable stop plugs. | Fig 2 | |
| 4 | Remove vacuum line (2) from fitting (5) and seal openings using suitable stop plugs. | Fig 2 | |
| 5 | Unclip fitting (5) from partition (arrows). | Fig 1 | |
| 6 | Unclip vacuum line (1) from brackets (3). | ||
| 7 | Remove vacuum line (1). | ||
| 8 | Install in the reverse order. | ||
| Remove/install vacuum line (2) in engine compartment | |||
| 9 | Remove vacuum line (2) from fitting (5) and seal openings using suitable stop plugs. | Fig 2 | |
| 10 | Release and disconnect vacuum line (2) from vacuum pump (4). | ||
| 11 | Remove vacuum line (2) and seal openings using suitable stop plugs. | Fig 2 | |
| 12 | Install in the reverse order. | ||
| Concluding tasks | |||
| Risk of death caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand | Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand. | AS42.00-Z-0001-01A | |
| 13 | Perform brake test on test stand. | ||
| AP42.00-P-4290BA |
