Remove/Install Brake Booster - AR43.10-P-0350ME

Model 167

MODIFICATION NOTES

28.01.2021 Stop plug added. Operation step 8.

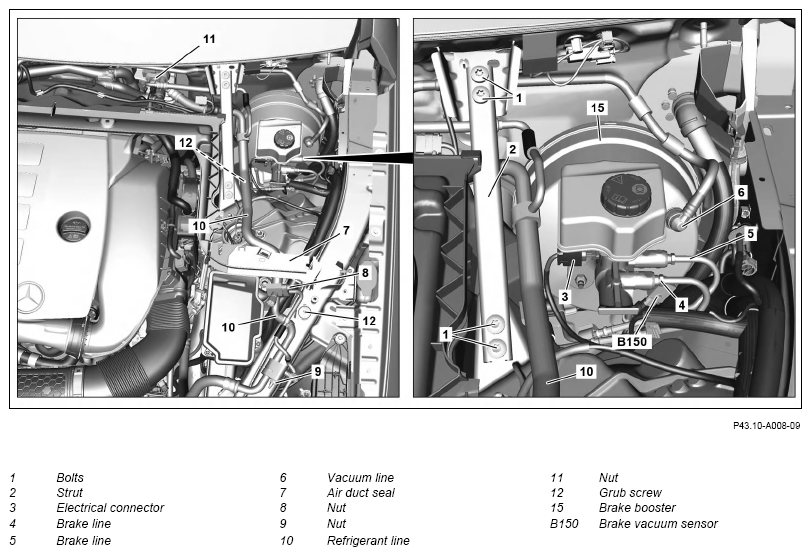

Fig 1: Brake Booster Components Location - Model 167
G15038216Courtesy of MERCEDES-BENZ USA

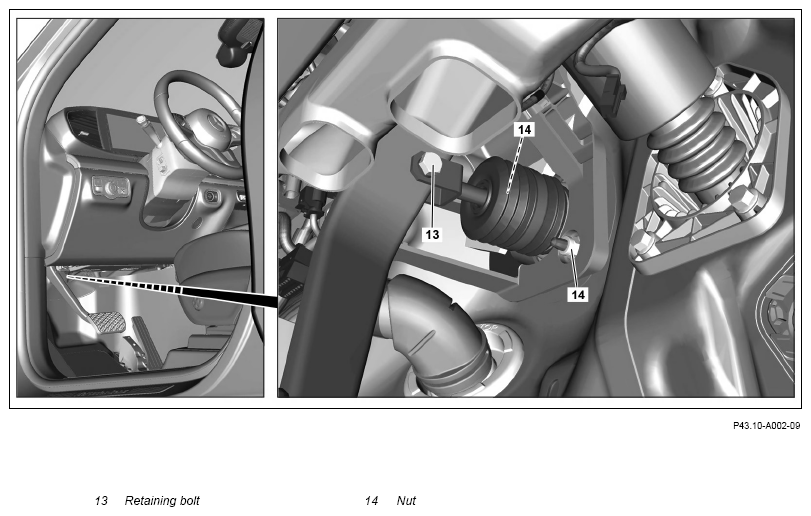

G15038217Courtesy of MERCEDES-BENZ USA
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
Topical note  Notes on externally invisible brake fluid loss   AH42.10-P-9406-02A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Topical note  Brake fluid notes   AH42.50-P-0001-01A
Topical note  Notes on repairs to brake system   AH42.00-P-0003-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Discharge air conditioning system.   AR83.30-P-1760ME
2 Remove windshield wiper system.   AR82.30-P-0001ME
3 Remove screws (1) and remove strut (2). TORQUE SPECIFICATION Screw, support to suspension strut tower/firewall *BA62.30-P-1005-02I
4 Remove engine compartment prefuse box (F150/3) and place to one side with attached electric lines.   AR54.15-P-1330ME
5 Release and disconnect electrical connector from brake vacuum sensor (B150).
6 Release and disconnect electrical connector (3) from brake fluid reservoir.
7 Remove brake lines (4, 5) from master brake cylinder and seal with suitable stop plugs. TORQUE SPECIFICATION Brake pipe to master brake cylinder *BA42.10-P-1003-04J
    SPECIAL TOOL Box wrench bit Fig 4
    SPECIAL TOOL Record plug Fig 2
8 Remove vacuum line (6) from brake booster (15) and seal openings using suitable stop plugs. SPECIAL TOOL Record plug Fig 2
9 Remove air duct seal (7).
10 Remove nut (8), pull out refrigerant line and seal openings using suitable stop plugs.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1)   BB00.40-P-0362-01A
    INSTALLATION IMPORTANT Replace sealing ring of refrigerant line and moisten with compressor oil.
    TORQUE SPECIFICATION Nut, refrigerant line connecting point *BA83.30-P-1002-01U
    SPECIAL TOOL Record plug Fig 2
11 Remove nut (9), remove refrigerant line (10) and seal openings with suitable stop plugs.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1)   BB00.40-P-0362-01A
    INSTALLATION IMPORTANT Replace sealing ring of refrigerant line (10) and moisten with compressor oil.
    TORQUE SPECIFICATION Nut, refrigerant line connecting point *BA83.30-P-1002-01U
    SPECIAL TOOL Record plug Fig 2
12 Remove nut (11), remove refrigerant line (10) from expansion valve and seal openings using suitable stop plugs.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1)   BB00.40-P-0362-01A
    INSTALLATION IMPORTANT Replace sealing ring of refrigerant line (10) and moisten with compressor oil.
    TORQUE SPECIFICATION Nut, refrigerant line to expansion valve *BA83.30-P-1001-01U
    SPECIAL TOOL Record plug Fig 2
13 Remove refrigerant line (10) from grub screws (12). SPECIAL TOOL Dismantling tool Fig 3
14 Remove trim under instrument panel on driver's side.   AR68.10-P-1501ME
15 Remove retaining bolt (13). TORQUE SPECIFICATION Bolts, brake pedal to brake booster *BA43.10-P-1002-01G
16 Remove nuts (14). TORQUE SPECIFICATION Nut, brake booster carrier to front end *BA43.10-P-1001-01G
17 Pull out brake booster (15) in forward direction and remove.
18 Remove seal between brake booster (15) and body. INSTALLATION IMPORTANT Replace seal.
19 Remove master brake cylinder with brake fluid reservoir at brake booster (15). When replacing brake booster (15).
      AR42.10-P-0300ME
20 Remove brake vacuum sensor (B150) from brake booster (15). When replacing brake booster (15).
21 Install in the reverse order.
  Concluding tasks
22 Bleed brake system.   AR42.10-P-0010ME
DANGER Risk of death  caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand. AS42.00-Z-0001-01A
23 Perform brake test on roller brake test stand.
      AP42.00-P-4290BA
BRAKE LINES, BRAKE HOSES

Number Designation Model 167
BA42.10-P-1003-04J Brake pipe to master brake cylinder Nm 16
BRAKE BOOSTER

Number Designation Model 167
BA43.10-P-1001-01G Nut, brake booster carrier to front end Nm 20
BRAKE BOOSTER

Number Designation Model 167
BA43.10-P-1002-01G Bolts, brake pedal to brake booster Nm 20
FRONT END WITH REINFORCEMENT

Number Designation Model 167
BA62.30-P-1005-02I Screw, support to suspension strut tower/firewall M10 Nm 31
AIR CONDITIONING

Number Designation Model 167
BA83.30-P-1001-01U Nut, refrigerant line to expansion valve M6 Nm 12
AIR CONDITIONING

Number Designation Model 167
BA83.30-P-1002-01U Nut, refrigerant line connecting point M6 Nm 12
M8 Nm 20
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11065549Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Dismantling Tool (000 589 95 63 00)
G12619044Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Box Wrench Bit (140 589 00 03 00)
G13668668Courtesy of MERCEDES-BENZ USA
