Apply Adhesive Material - AR67.10-P-1000-08ME
Model 167
| Topical note | Notes on handling adhesive | AH67.00-P-1000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
The bonding area must be dry and absolutely free of dust and grease.
Otherwise the adhesive force of the adhesive material starts to decrease.
Use only the repair kit specified in the EPC.

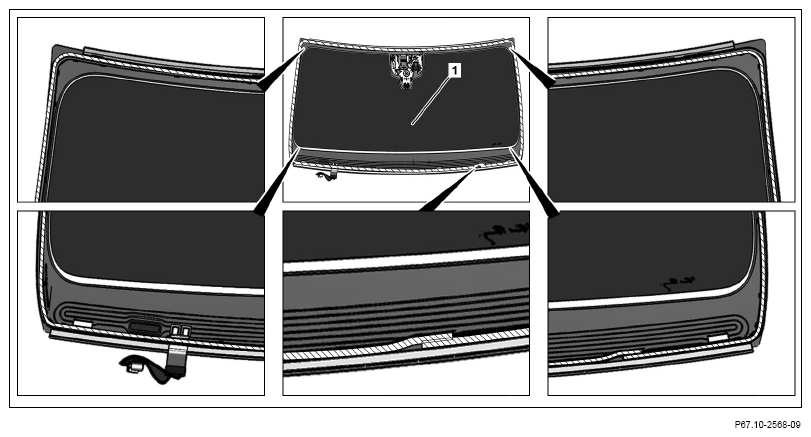

- Guide application nozzle 13 mm along the windshield (1), thus applying the adhesive material uniformly along the markings (hatched area).
Install windshield (1) within 10 min of applying adhesive material.
Otherwise the adhesive force of the adhesive material starts to decrease.
The height of the adhesive bead must be approx. 13 mm.
- Completely press out and dispose of adhesive material that is not needed.
adapter to completely press out 1component adhesive. Lay it between the piston of the cartridge and the plate on the push rod of the squeeze gun.
