Align Windshield In Body Opening - AR67.10-P-1000-09ME

Model 167

Notes on safety-relevant components

AH00.00-Z-0019-01A

WINDSHIELD

Number	Designation		Model 167 (except 167.3)	Model 167.3
BE67.10-P-1001-02KOA	Distance between top edge of window Dimension "A" and front edge of roof	mm	2, 5 (±1, 0)	3 (+1/-0, 5)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

G13659521

Courtesy of MERCEDES-BENZ USA

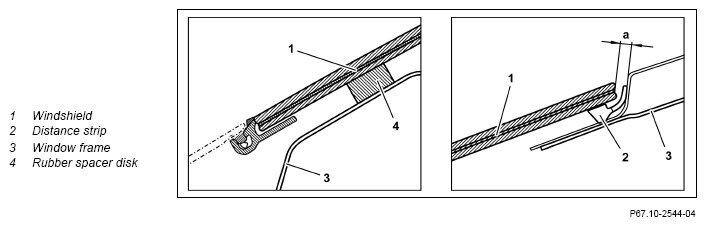

Set down windshield (1) on rubber spacer disk (4) on lower window frame (3) and spacer strip (2) on upper window frame (3) and center.
Helper required.
Adjust clearance (a) at windshield upper edge using feeler gauge.

Courtesy of MERCEDES-BENZ USA

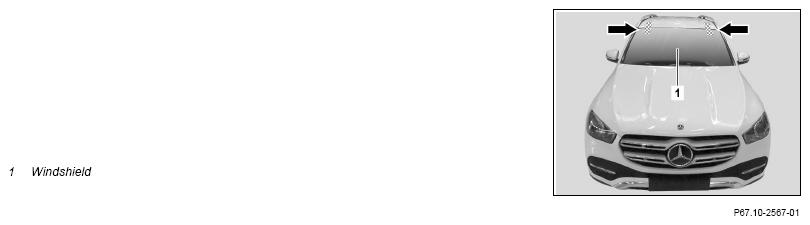

Glue on adhesive strips "arrows".
Cut through adhesive strips "arrows" at the top edge of the windshield (1).
Remove windshield (1) from window frame.
Helper required.

Courtesy of MERCEDES-BENZ USA
