Remove/Install Guide Rail For Panoramic Sliding Sunroof - AR77.21-P-0432MEC
Model 167.3
With Code 413 (Panoramic sliding sunroof/glass roof)

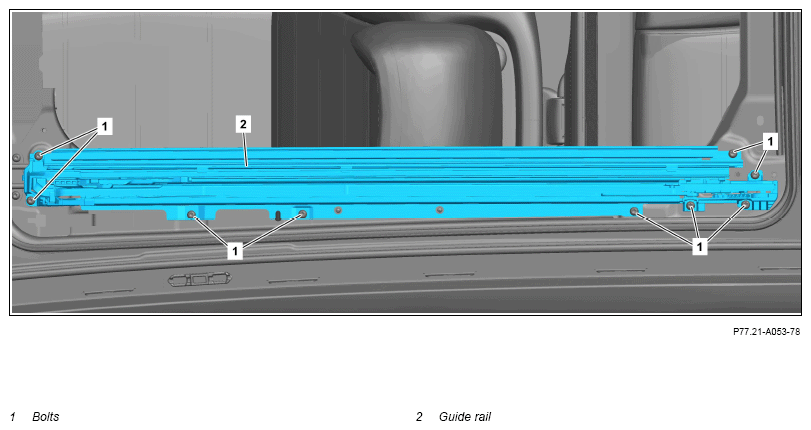

Shown on the left side of vehicle
| Remove/install | |||
| 1 | Remove wind deflector for panoramic sliding sunroof. | AR77.21-P-0101MEC | |
| 2 | Remove roller sunblind from panoramic sliding sunroof. | AR77.21-P-0215MEC | |
| 3 | Remove panoramic sliding sunroof roller sunblind drive unit. | AR77.21-P-0493MEC | |
| 4 | Remove panoramic sliding sunroof drive unit. | AR77.21-P-1000MEC | |
| 5 | Remove screws (1). | ||
| 6 | Lift guide rail (2) and slow pull drive cable out of guide tubes. | ||
| 7 | Remove guide rail (2). | ||
| 8 | Install in the reverse order. | ||
| Normalizing | |||
| 9 | Normalize panoramic sliding sunroof with diagnostic system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06ME |
