Prepare Front Fixed Element Of Panoramic Sliding Sunroof For Installation - AR77.21-P-0803-02ME

Model 167

With Code 413 (Panoramic sliding sunroof/glass roof)

Notice

Notes on removal/installation of bonded elements of panoramic roof

WINDSHIELD

Number	Designation			Model 167 (except 167.3)	Model 167.3
BE67.10-P-1001-02KOA	Distance between top edge of window and front edge of roof	Dimension "A"	mm	2, 5 (± 1, 0)	3 (+1/-0, 5)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1062-02A	Adhesive fabric tape	A 007 989 28 85

Courtesy of MERCEDES-BENZ USA

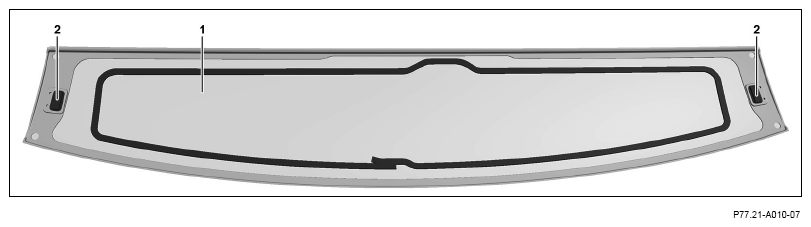

Set down front fixed element (1), with inside facing upwards, on a suitable base.
Attach new spacers (2) as shown.
Clean bonding surfaces at front fixed element (1).
The cleaner is included in the repair kit.

Only apply cleaner to bonding surfaces and allow to fully dry.

It is not necessary to prime the bonding surfaces.

Courtesy of MERCEDES-BENZ USA

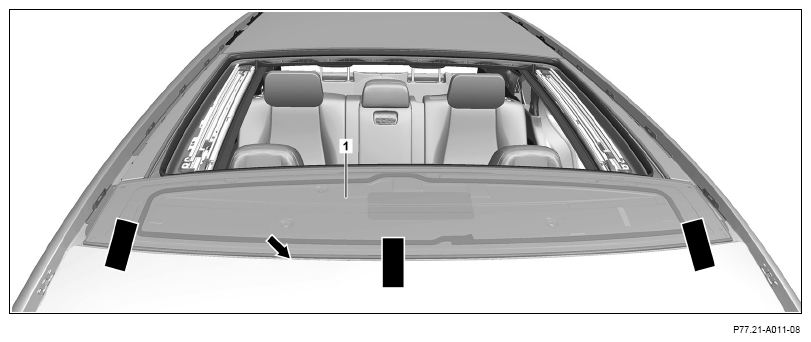

Mount front fixed element (1) on the body and align the clearance between the windshield upper edge and roof front edge/sliding sunroof frame using the feeler gauge.
Center front fixed element (1) between side roof panelings and windshield.

Observe installation position of windshield seal (arrow).

Aid of helper required.
The Glue on tape strips and cut through at front edge of front fixed element (1).
Set down front fixed element (1), with inside facing upwards, on a suitable base.
Apply activator to bonding surfaces at front fixed element (1).
The activator is included in the repair kit.
