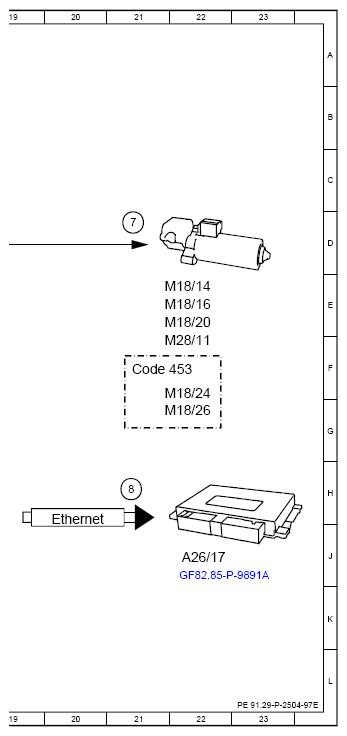

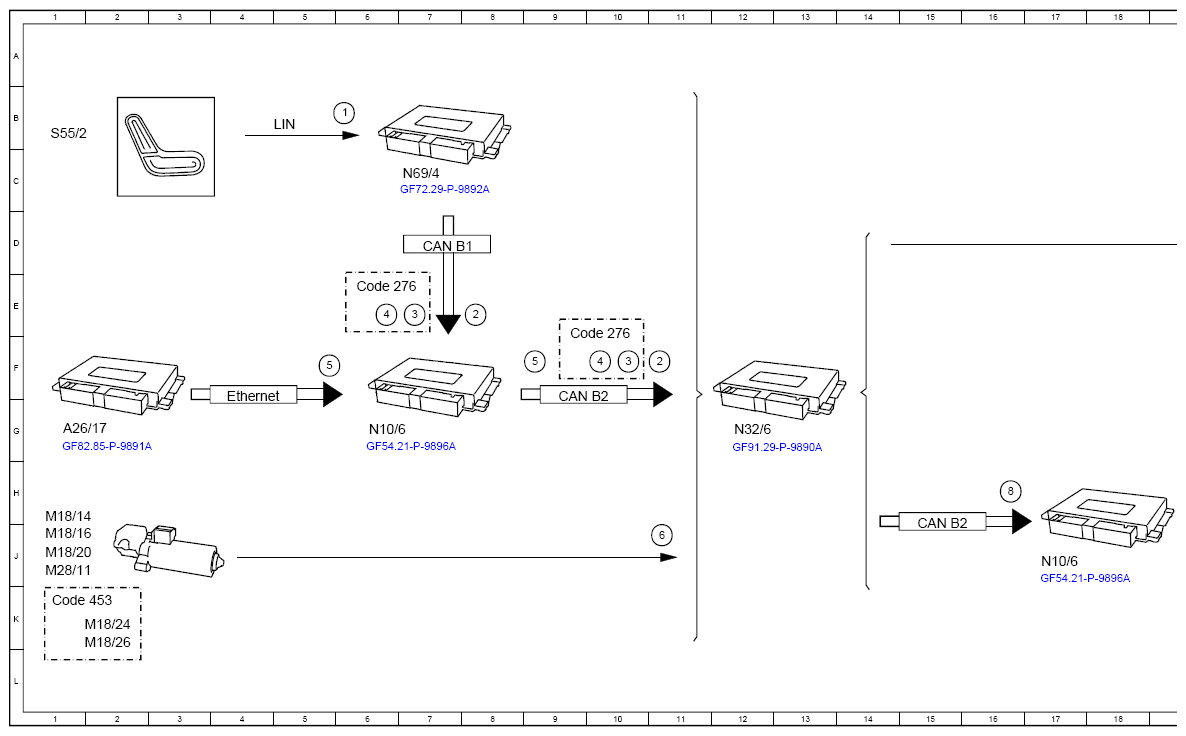

(Function Schematic For Right Rear Seat Electric Seat Adjustment - PE91.29-P-2504-97E)
Model 223 with code 223 (Electric backrest adjustment and head restraints)
Model 223 with code 453 (Rear reclining seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 6B |
| 2 | Manual adjustment, request | 8E |
| 2 | Manual adjustment, request | 11F |
| 3 | Store memory position, request | 10F |
| 3 | Store memory position, request | 7E |
| 4 | Adopt memory position, request | 10F |
| 4 | Adopt memory position, request | 6E |
| 5 | Operation, signal | 5F |
| 5 | Operation, signal | 9F |
| 6 | Hall sensors, signal | 11J |
| 7 | Seat adjustment motor, actuation | 21D |
| 8 | Seat adjustment, status | 16H |
| 8 | Seat adjustment, status | 21H |
| A26/17 | Head unit | 22J |
| A26/17 | Head unit | 1G |
| CAN B1 | CAN 1 for vehicle interior | 7D |
| CAN B2 | CAN 2 for vehicle interior | 9G |
| CAN B2 | CAN 2 for vehicle interior | 15J |
| Code 276 | Memory in rear | 9F |
| Code 276 | Memory in rear | 6E |
| Code 453 | Rear reclining seats | 1K |
| Code 453 | Rear reclining seats | 21F |
| Ethernet | Ethernet | 20H |
| Ethernet | Ethernet | 4G |
| LIN | Local Interconnect Network | 5B |
| M18/14 | Right rear seat head restraint seat adjustment motor | 1H |
| M18/14 | Right rear seat head restraint seat adjustment motor | 21E |
| M18/16 | Right rear seat head restraint inclination adjustment motor | 1J |
| M18/16 | Right rear seat head restraint inclination adjustment motor | 21E |
| M18/20 | Right rear seat cushion inclination adjustment motor | 1J |
| M18/20 | Right rear seat cushion inclination adjustment motor | 21E |
| M18/24 | Right rear seat leg rest inclination adjustment motor | 1K |
| M18/24 | Right rear seat leg rest inclination adjustment motor | 21F |
| M18/26 | Right rear seat leg rest fore-and-aft position seat adjustment motor | 1K |
| M18/26 | Right rear seat leg rest fore-and-aft position seat adjustment motor | 21G |
| M28/11 | Right rear seat backrest inclination adjustment motor | 1J |
| M28/11 | Right rear seat backrest inclination adjustment motor | 21F |
| N10/6 | Front signal acquisition and actuation module control unit | 17J |
| N10/6 | Front signal acquisition and actuation module control unit | 6G |
| N32/6 | Right rear seat control unit | 12G |
| N69/4 | Right rear door control unit | 7C |
| S55/2 | Right rear seat adjustment switch group | 1B |
