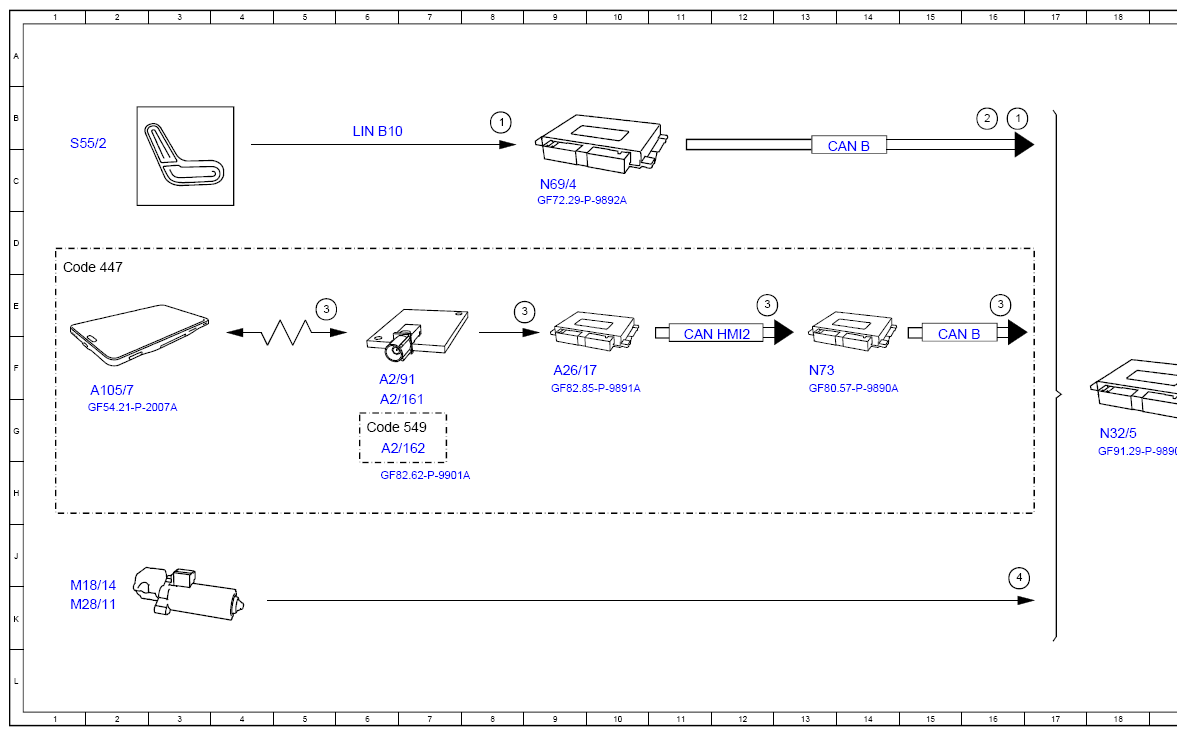

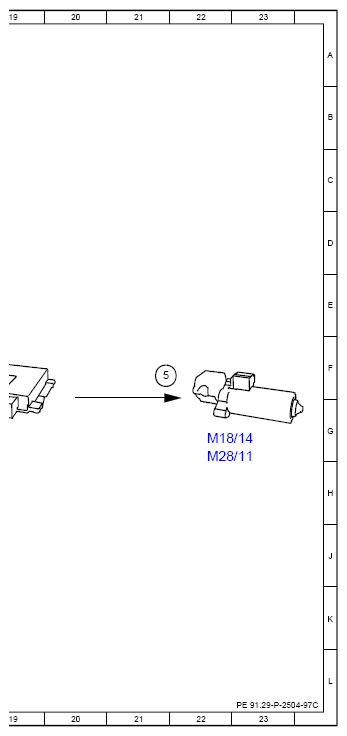

(Function Schematic For Right Rear Seat Electric Seat Adjustment - PE91.29-P-2504-97C)
Model 213 with code 223 (Electric backrest adjustment and head restraints)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 16B |
| 1 | Seat adjustment switch group, status | 8B |
| 2 | Door rotary tumbler switch, status | 16B |
| 3 | Seat adjustment, request | 5E |
| 3 | Seat adjustment, request | 9E |
| 3 | Seat adjustment, request | 12E |
| 3 | Seat adjustment, request | 16E |
| 4 | Hall sensors, signal | 16J |
| 5 | Seat adjustment motor, actuation | 21F |
| A105/7 | Tablet PC | 2F |
| A2/161 | Bluetooth®/WiFi antenna 3 | 6G |
| A2/162 | Bluetooth®/WiFi antenna 1 | 6G |
| A2/91 | Bluetooth® antenna | 6F |
| A26/17 | Head unit | 9F |
| CAN B | Interior CAN | 14C |
| CAN B | Interior CAN | 15F |
| CAN HMI2 | User interface CAN 2 | 11F |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 1D |
| Code 549 | Connect 20 HIGH (NTG6) | 6G |
| LIN B10 | Right rear door LIN | 6B |
| M18/14 | Right rear seat head restraint seat adjustment motor | 22G |
| M18/14 | Right rear seat head restraint seat adjustment motor | 1K |
| M28/11 | Right rear seat backrest inclination adjustment motor | 22G |
| M28/11 | Right rear seat backrest inclination adjustment motor | 1K |
| N32/5 | Right rear seat control unit | 18G |
| N69/4 | Right rear door control unit | 9C |
| N73 | Electronic ignition switch control unit | 13F |
| S55/2 | Right rear seat adjustment switch group | 1B |
