Remove/Install Seat Ventilation Motors On Front Seat Cushion - AR91.30-P-1952ME

Model 167

With Code 401 (Climatised front seats)

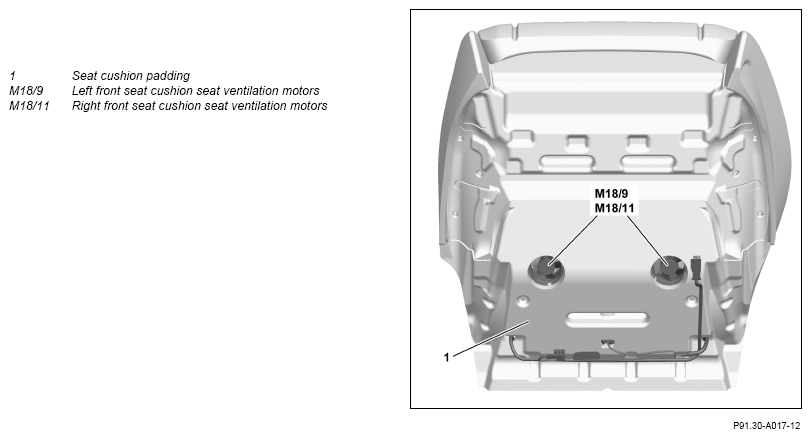

Shown on driver seat

G15047425Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove seat cushion cover from seat cushion padding (1).   AR91.18-P-1801ME
    IMPORTANT The front seat cushion seat ventilation motors (M18/9, M18/11) are integrated in the seat cushion padding (1) and can only be replaced together with the seat cushion padding (1).
2 Install in the reverse order.
