Remove/Install Seat Ventilation Motors On Front Backrest - AR91.30-P-1902ME
Model 167
With Code 401 (Climatised front seats)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove seat backrest trim. | AR91.10-P-1912ME | |

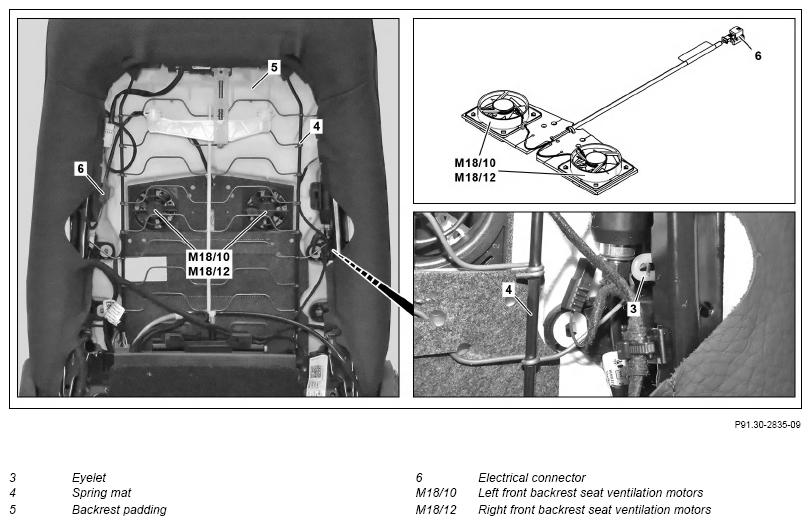

| 2 | Release and disconnect electrical connector (6). | ||
| 3 | Release plug housing of electrical connector (6) on seat backrest frame and remove. | ||
| 4 | Unhook spring mat (4) out of eyelet (3) on one side. | ||
| 5 | Lift seat backrest padding (5) and remove front seat backrest seat ventilation motors (M18/10, M18/12). | ||
| 6 | Install in the reverse order. |
