Remove/Install Seat Belt Height Adjuster On B-Pillar - AR91.40-P-1106ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Release upper B-pillar trim and place to one side.		AR68.30-P-4700ME
		Do not remove belt end fitting at the front seat.

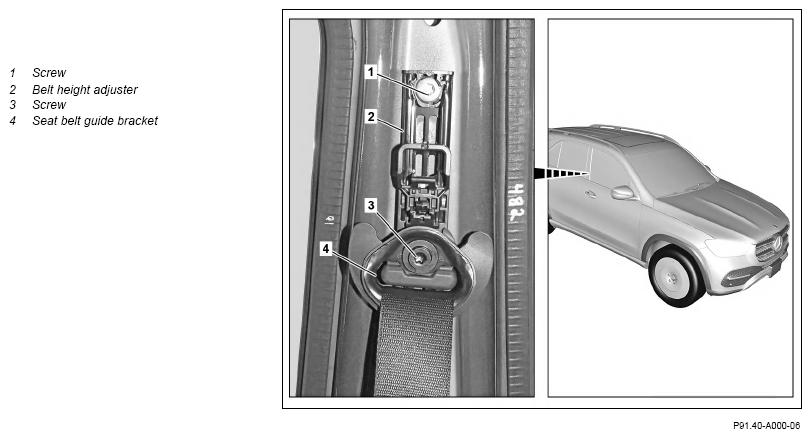

2	Remove bolt (3) and remove seat belt guide bracket (4).	Bolt, front belt guide bracket	*BA91.40-P-1002-01U
3	Unscrew bolt (1).	Bolt, front belt height adjuster to B-pillar	*BA91.40-P-1008-01U
4	Unhook seat belt height adjuster (2) and remove upwards.	Ensure the belt height adjuster (2) is seated correctly in the B-pillar.
5	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 167
BA91.40-P-1002-01U	Bolt, front belt guide bracket	Nm	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 167
BA91.40-P-1008-01U	Bolt, front belt height adjuster to B-pillar	Nm	35
